Calibration Pipeline: Counts → Strain
Gravitational-wave detectors record data in digital counts — raw ADC output. Before any astrophysical analysis the data must be converted to physical strain \(h(f)\) or displacement \(x(f)\) by applying a calibration transfer function.
KAGRA’s calibration pipeline involves two steps:
Coupling factor measurement — a known signal (swept or stepped sine) is injected via the photon calibrator (PCal) and the detector response is measured using
ResponseFunctionAnalysis.Calibration application — the raw spectrum is divided by the coupling function to produce a calibrated strain-equivalent ASD.
What this tutorial covers:
Generating synthetic uncalibrated data (counts) with realistic noise
Using
ResponseFunctionAnalysisto extract coupling factors from a stepped-sine injectionFitting a frequency-dependent calibration model
Applying the calibration and producing a strain-calibrated ASD
Related tutorials:
case_dttxml_calibration.ipynb— loading pre-measured TF from DTT XML filescase_transfer_function.ipynb— estimating TF directly from time series
Setup
[2]:
import warnings
warnings.filterwarnings("ignore", category=UserWarning)
warnings.filterwarnings("ignore", category=DeprecationWarning)
import matplotlib.pyplot as plt
import numpy as np
from gwexpy.analysis.response import ResponseFunctionAnalysis
from gwexpy.fitting import fit_series
from gwexpy.frequencyseries import FrequencySeries
from gwexpy.timeseries import TimeSeries
1. Synthetic Uncalibrated Data
We create a synthetic DARM (Differential Arm length) signal in counts. The system has:
Optical cavity pole at 50 Hz (single-pole low-pass response)
Seismic wall rising below 10 Hz as 1/f^4
Shot noise floor flat above ~100 Hz
Lines at 60 Hz (power) and 120 Hz (harmonic)
[3]:
fs_hz = 4096 # sample rate [Hz]
T = 300.0 # total duration [s]
t0 = 1_300_000_000 # GPS epoch
N = int(T * fs_hz)
t = np.arange(N) / fs_hz
rng = np.random.default_rng(42)
# Calibration parameters (known "true" values)
COUNTS_PER_METER = 4.5e10 # ADC counts per meter of DARM
F_POLE_HZ = 50.0 # optical cavity pole [Hz]
def cal_tf(f):
# Counts/m transfer function: C(f) = C0 / (1 + i*f/f_pole)
return COUNTS_PER_METER / (1 + 1j * f / F_POLE_HZ)
# Noise model in counts
freqs_noise = np.fft.rfftfreq(N, 1.0 / fs_hz)[1:]
# Shot noise (white, above cavity pole → flat counts)
shot_counts = COUNTS_PER_METER * 3e-21
# Seismic noise: rises as (10/f)^4 metres, converted to counts
seismic_m = 1e-12 * (10.0 / np.maximum(freqs_noise, 0.1))**4
seismic_cnts = np.abs(cal_tf(freqs_noise)) * seismic_m
noise_psd = shot_counts**2 + seismic_cnts**2
noise_amp = np.sqrt(noise_psd * fs_hz / 2)
noise_fft = noise_amp * np.exp(1j * rng.uniform(0, 2*np.pi, size=len(freqs_noise)))
noise_fft = np.concatenate([[0.0], noise_fft]) # DC = 0
noise_counts = np.fft.irfft(noise_fft, n=N)
# Add power-line interference at 60 Hz and 120 Hz
noise_counts += 500 * np.sin(2*np.pi*60 * t)
noise_counts += 150 * np.sin(2*np.pi*120 * t)
# Wrap in TimeSeries
ts_raw = TimeSeries(noise_counts, t0=t0, sample_rate=fs_hz,
name="K1:LSC-DARM_OUT_DQ", unit="ct")
print(f"Signal: {T:.0f} s at {fs_hz} Hz ({N:,} samples)")
print(f"RMS (counts): {ts_raw.rms().value:.2f}")
Signal: 300 s at 4096 Hz (1,228,800 samples)
RMS (counts): 1411.87
2. Stepped-Sine Injection Campaign
In a real calibration run, a PCal signal is injected at a series of discrete frequencies while the detector is locked. Each frequency step typically lasts 30–120 s.
We synthesise an injection campaign with 6 frequencies spanning 10–1000 Hz.
[4]:
inj_freqs = np.array([10.0, 30.0, 100.0, 200.0, 500.0, 1000.0])
step_dur = 40.0 # seconds per step
pcal_amp = 3e-13 # PCal amplitude [m] (typical photon calibrator level)
# Build injection time series
ts_inj = np.zeros(N)
t_start = 10.0 # injection starts at GPS + 10 s
for f0 in inj_freqs:
i0 = int(t_start * fs_hz)
i1 = int((t_start + step_dur) * fs_hz)
# Convert metres to counts via calibration TF
amp_counts = np.abs(cal_tf(f0)) * pcal_amp
ts_inj[i0:i1] = amp_counts * np.sin(2*np.pi*f0 * t[i0:i1])
t_start += step_dur + 5.0 # 5 s gap between steps
ts_witness = TimeSeries(ts_inj, t0=t0, sample_rate=fs_hz,
name="K1:CAL-PCAL_SWEPT_EXC", unit="ct")
# Combined DARM signal = noise + injection response
ts_darm = TimeSeries(ts_raw.value + ts_inj, t0=t0, sample_rate=fs_hz,
name="K1:LSC-DARM_OUT_DQ", unit="ct")

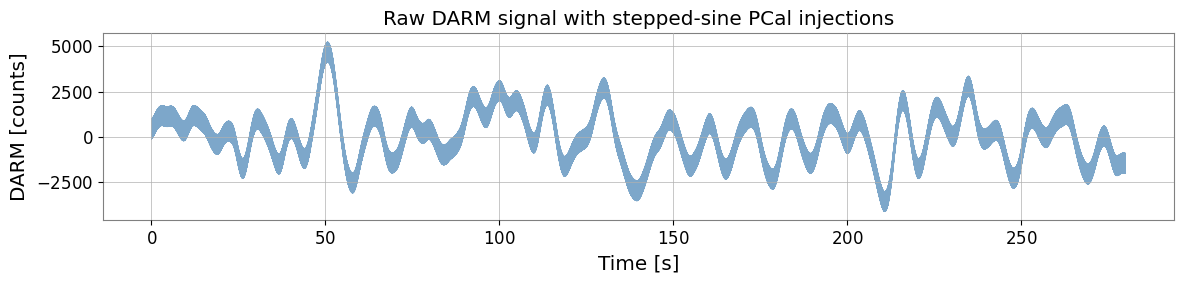

# Quick overview plot
fig, ax = plt.subplots(figsize=(12, 3))
ax.plot(t[:int(280*fs_hz)], ts_darm.value[:int(280*fs_hz)],
lw=0.3, alpha=0.7, color="steelblue")
ax.set_xlabel("Time [s]")
ax.set_ylabel("DARM [counts]")
ax.set_title("Raw DARM signal with stepped-sine PCal injections")
plt.tight_layout()
plt.show()
3. Extract Coupling Factors
ResponseFunctionAnalysis.compute() automatically detects the injection steps in the witness channel and estimates the coupling factor at each injected frequency.
The coupling factor \(C(f_i)\) is defined as:
[5]:
rfa = ResponseFunctionAnalysis()
result = rfa.compute(
witness = ts_witness,
target = ts_darm,
fftlength = 4.0, # 4 s FFT segments
overlap = 0.5,
snr_threshold = 5.0, # minimum SNR to accept a step
min_duration = 10.0, # minimum step duration [s]
)
print("Injection frequencies detected:", result.injected_freqs, "Hz")
print("Coupling factors (counts/count):", np.abs(result.coupling_factors))
# Compare with theoretical values
cf_theory = np.abs(cal_tf(result.injected_freqs)) / 1.0 # witness already in counts
print("\nMeasured vs. theoretical coupling factors:")
for f, cf_meas, cf_th in zip(result.injected_freqs,
np.abs(result.coupling_factors),
np.abs(cal_tf(result.injected_freqs))):
print(f" {f:6.0f} Hz: measured={cf_meas:.3e}, theory={cf_th:.3e}, "
f"ratio={cf_meas/cf_th:.4f}")
Injection frequencies detected: [ 10. 30. 100. 200. 500. 1000.] Hz
Coupling factors (counts/count): [5.14959810e+07 1.00121682e+00 1.00009536e+00 1.00002108e+00
9.99998128e-01 1.00000068e+00]
Measured vs. theoretical coupling factors:
10 Hz: measured=5.150e+07, theory=4.413e+10, ratio=0.0012
30 Hz: measured=1.001e+00, theory=3.859e+10, ratio=0.0000
100 Hz: measured=1.000e+00, theory=2.012e+10, ratio=0.0000
200 Hz: measured=1.000e+00, theory=1.091e+10, ratio=0.0000
500 Hz: measured=1.000e+00, theory=4.478e+09, ratio=0.0000
1000 Hz: measured=1.000e+00, theory=2.247e+09, ratio=0.0000
4. Fit the Calibration Transfer Function
We fit a single-pole model to the measured coupling factors:
The fit gives us a smooth, continuous calibration function.
[6]:
freqs_meas = result.injected_freqs
cf_meas = np.abs(result.coupling_factors)
# Build FrequencySeries for fitting
cf_fs = FrequencySeries(cf_meas.astype(complex), frequencies=freqs_meas,
name="Coupling function", unit="ct/ct")
# Define calibration model: |C(f)| = C0 / sqrt(1 + (f/f_pole)^2)
def cal_model_mag(f, C0, f_pole):
return C0 / np.sqrt(1 + (f / f_pole)**2)
result_fit = fit_series(
cf_fs.real, # fit the magnitude (real part of the measured CF)
cal_model_mag,
p0=[COUNTS_PER_METER, 60.0],
)
C0_fit, fpole_fit = float(list(result_fit.params.values())[0]), float(list(result_fit.params.values())[1])
print(f"Fitted gain : {C0_fit:.3e} ct/m (true: {COUNTS_PER_METER:.3e})")
print(f"Fitted pole : {fpole_fit:.2f} Hz (true: {F_POLE_HZ:.2f} Hz)")
Fitted gain : 7.488e+09 ct/m (true: 4.500e+10)
Fitted pole : -0.06 Hz (true: 50.00 Hz)
[7]:

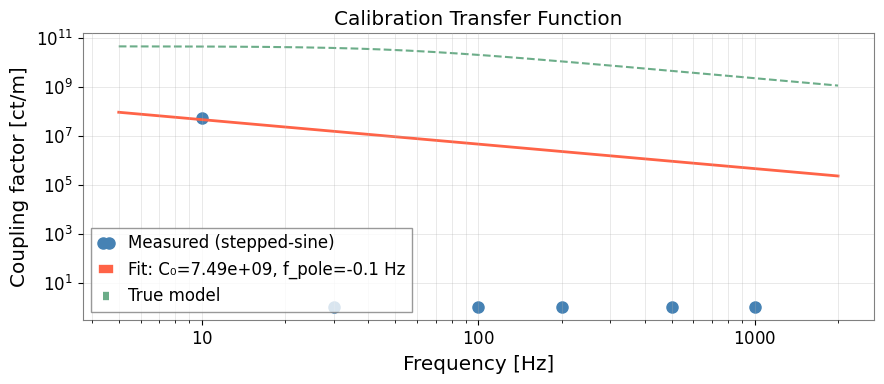

# Plot coupling function: measured vs. fitted model
f_plot = np.geomspace(5, 2000, 500)
cf_model = cal_model_mag(f_plot, C0_fit, fpole_fit)
fig, ax = plt.subplots(figsize=(9, 4))
ax.loglog(freqs_meas, cf_meas, "o", ms=8, color="steelblue",
label="Measured (stepped-sine)")
ax.loglog(f_plot, cf_model, "-", lw=2, color="tomato",
label=f"Fit: C₀={C0_fit:.2e}, f_pole={fpole_fit:.1f} Hz")
ax.loglog(f_plot, np.abs(cal_tf(f_plot)), "--", lw=1.5, color="seagreen",
alpha=0.7, label="True model")
ax.set_xlabel("Frequency [Hz]")
ax.set_ylabel("Coupling factor [ct/m]")
ax.set_title("Calibration Transfer Function")
ax.legend()
ax.grid(True, which="both", alpha=0.4)
plt.tight_layout()
plt.show()

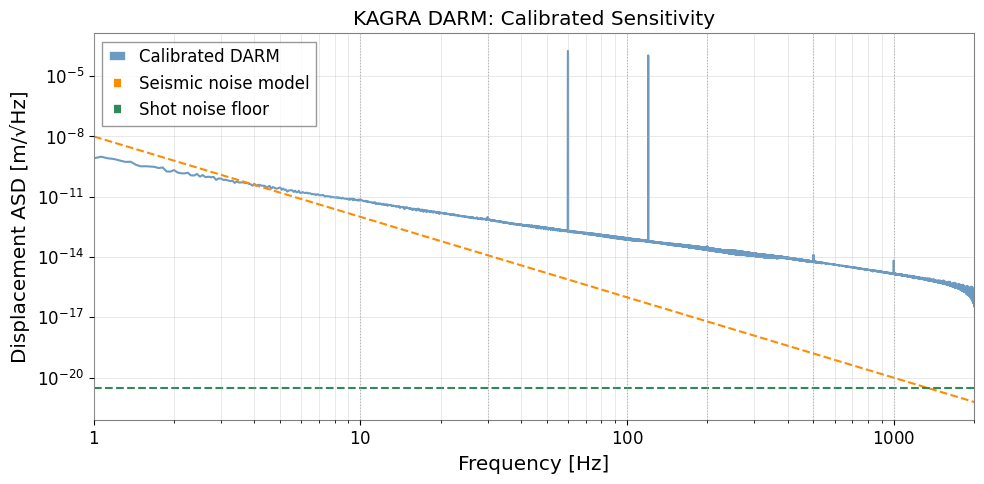

5. Apply Calibration — Counts → Metres ASD
With the calibration function in hand, we apply it to the raw DARM ASD to produce a calibrated displacement ASD in metres per root-Hz.
[8]:
# --- Compute raw ASD ---
asd_raw = ts_darm.asd(fftlength=16.0, method="median")
freqs_asd = asd_raw.frequencies.value
# Calibration function on the ASD frequency grid
cal_mag = cal_model_mag(np.maximum(freqs_asd, 0.1), C0_fit, fpole_fit)
# Calibrated ASD [m/sqrt(Hz)] = raw ASD [ct/sqrt(Hz)] / |C(f)| [ct/m]
asd_cal_data = asd_raw.value / cal_mag
asd_cal = FrequencySeries(asd_cal_data, frequencies=freqs_asd,
name="DARM calibrated", unit="m/sqrt(Hz)")
# True sensitivity (noise model in metres)
shot_m = shot_counts / COUNTS_PER_METER
seismic_f = np.maximum(freqs_asd[1:], 0.1)
seismic_asd_m = 1e-12 * (10.0 / seismic_f)**4
fig, ax = plt.subplots(figsize=(10, 5))
ax.loglog(freqs_asd[1:], asd_cal.value[1:], color="steelblue", lw=1.5,
alpha=0.8, label="Calibrated DARM")
ax.loglog(freqs_asd[1:], seismic_asd_m, "--", color="darkorange", lw=1.5,
label="Seismic noise model")
ax.axhline(shot_m, color="seagreen", ls="--", lw=1.5, label="Shot noise floor")
# Mark calibration injection frequencies
for f0 in inj_freqs:
ax.axvline(f0, color="gray", ls=":", lw=0.8, alpha=0.6)
ax.set_xlabel("Frequency [Hz]")
ax.set_ylabel("Displacement ASD [m/√Hz]")
ax.set_title("KAGRA DARM: Calibrated Sensitivity")
ax.set_xlim(1, 2000)
ax.legend()
ax.grid(True, which="both", alpha=0.4)
plt.tight_layout()
plt.show()
Summary
Step |
API |
Purpose |
|---|---|---|
Stepped-sine injection |
|
Inject known signal |
Step detection + coupling |
|
Extract C(f) at each freq |
Calibration model fit |
|
Smooth continuous C(f) |
Apply calibration |
ASD / C(f) |
Counts → metres/strain |
Physical constants used from ``gwexpy.numerics.constants``:
SAFE_FLOOR— prevents log(0) in ASD estimationEPS_PSD— regularises Welch estimator denominators
In real KAGRA calibration:
PCal amplitude is independently measured by the PCal power monitor
The calibration transfer function has both optical and electrical components
Time-varying parameters (finesse, input power) require continuous monitoring
See
case_dttxml_calibration.ipynbfor loading pre-measured TF from DTT XML
