Tutorial: Sky Map and Geographic Map Plotting

This notebook demonstrates how to use gwexpy.plot.SkyMap for all-sky HEALPix probability maps and gwexpy.plot.GeoMap for geographic maps of detector locations.

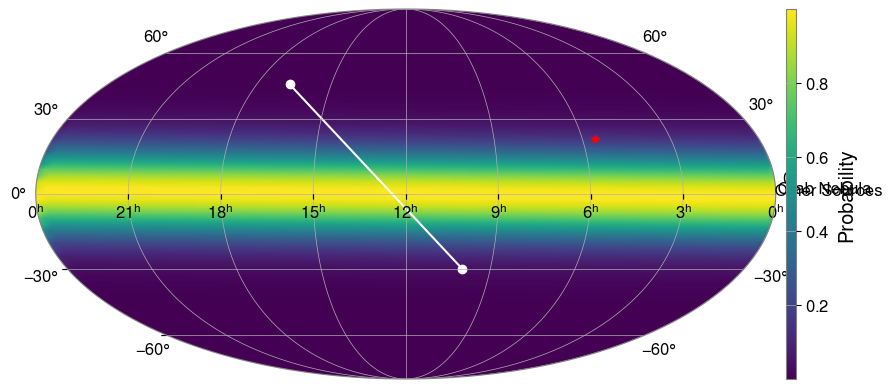

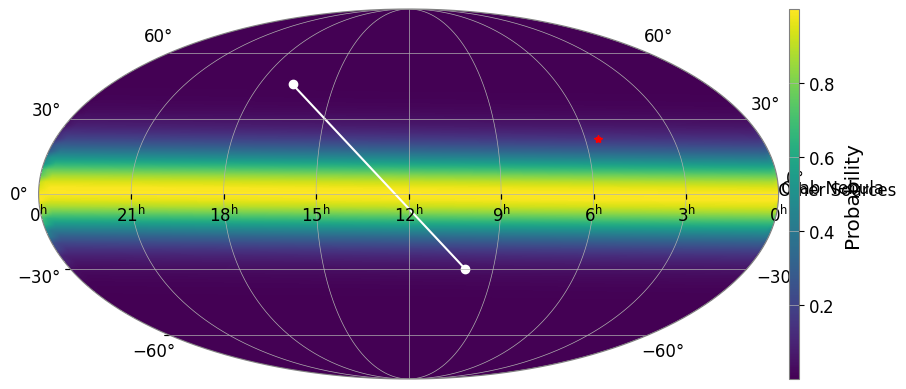

1. SkyMap: All-Sky Probability Maps

SkyMap is a specialized plotting class for displaying distributions on the celestial sphere. It integrates with ligo.skymap to easily handle HEALPix data.

import matplotlib.pyplot as plt
import numpy as np

from gwexpy.plot import SkyMap

# Create SkyMap with Mollweide projection (default)
fig = SkyMap(figsize=(10, 5), projection="astro hours mollweide")

# Add synthetic HEALPix data if ligo.skymap is available
try:
    import ligo.skymap

    _ = ligo.skymap
    nside = 16
    npix = 12 * nside**2
    # Generate a dummy central peak
    map_data = np.exp(-0.5 * (np.arange(npix) - npix // 2) ** 2 / (npix // 10) ** 2)
    fig.add_healpix(map_data, cmap="viridis")
except ImportError:
    print("ligo.skymap not installed.")

# Mark some astronomical targets
# Crab Nebula (RA: 83.63 deg, Dec: 22.01 deg)
fig.mark_target(83.63, 22.01, label="Crab Nebula", color="red", marker="*")

# Other targets
fig.mark_target([150, 250], [-30, 45], label="Other Sources", color="white", marker="o")

plt.show()

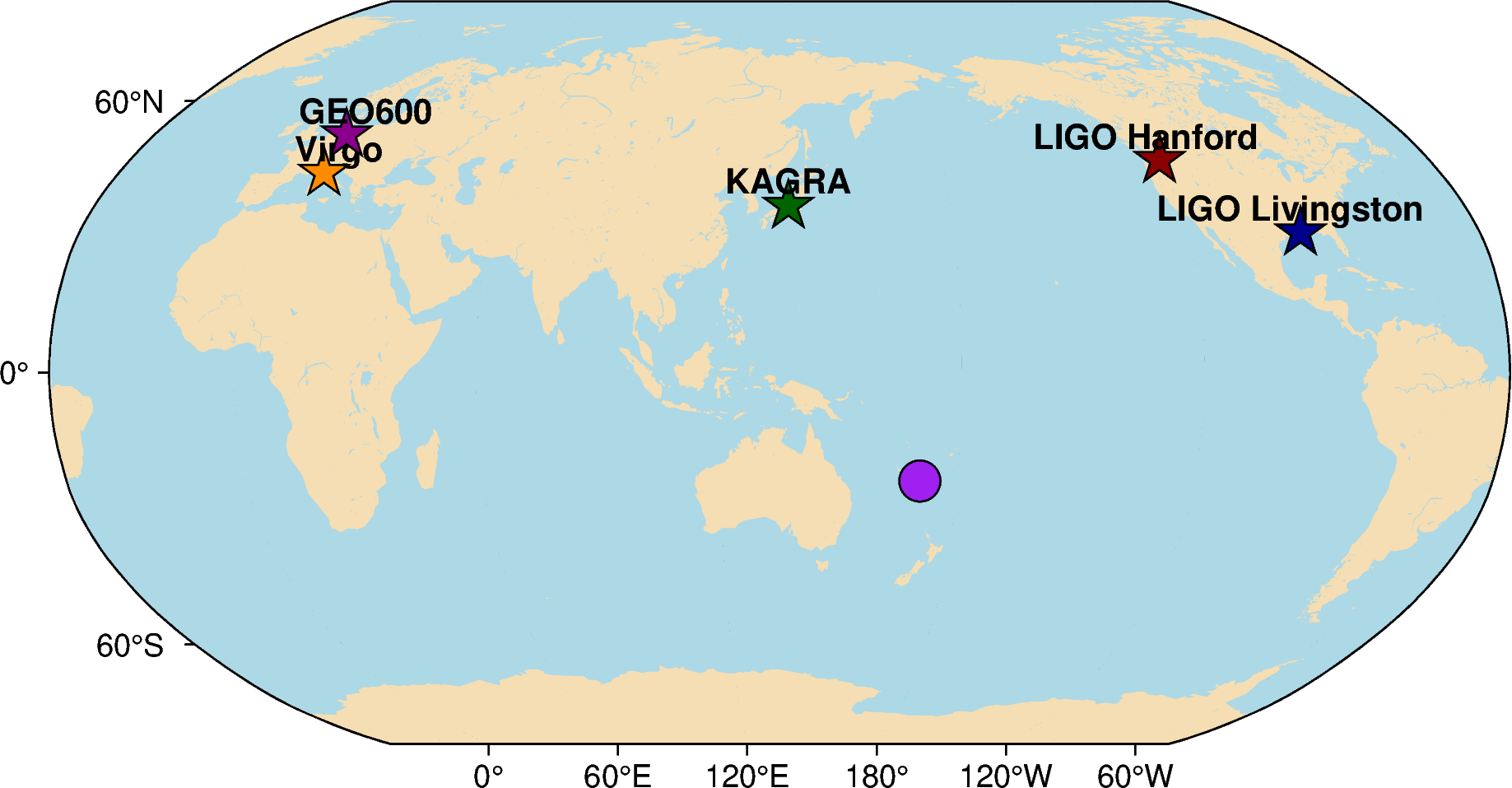

2. GeoMap: Geographic Maps with PyGMT

GeoMap provides a Cartopy-like interface to PyGMT, allowing for high-quality geographic maps and easy placement of gravitational wave detectors.

from gwexpy.plot import GeoMap

# Create GeoMap with Robinson projection centered on 135E (Japan)
try:
    gmap = GeoMap(projection="Robinson", center_lon=135)

    # Add map features
    gmap.add_coastlines(resolution="low", color="black")
    gmap.fill_continents(color="wheat")
    gmap.fill_oceans(color="lightblue")

    # Plot standard detectors (KAGRA, LIGO, Virgo, GEO)
    for det in ["K1", "H1", "L1", "V1", "G1"]:
        gmap.plot_detector(det, label=True)

    # Plot an arbitrary point
    gmap.plot(x=170.5, y=-23.6, marker="o", color="purple", markersize=12)

    gmap.show()
except ImportError as e:
    print(e)
except Exception as e:
    print(f"An error occurred: {e}")

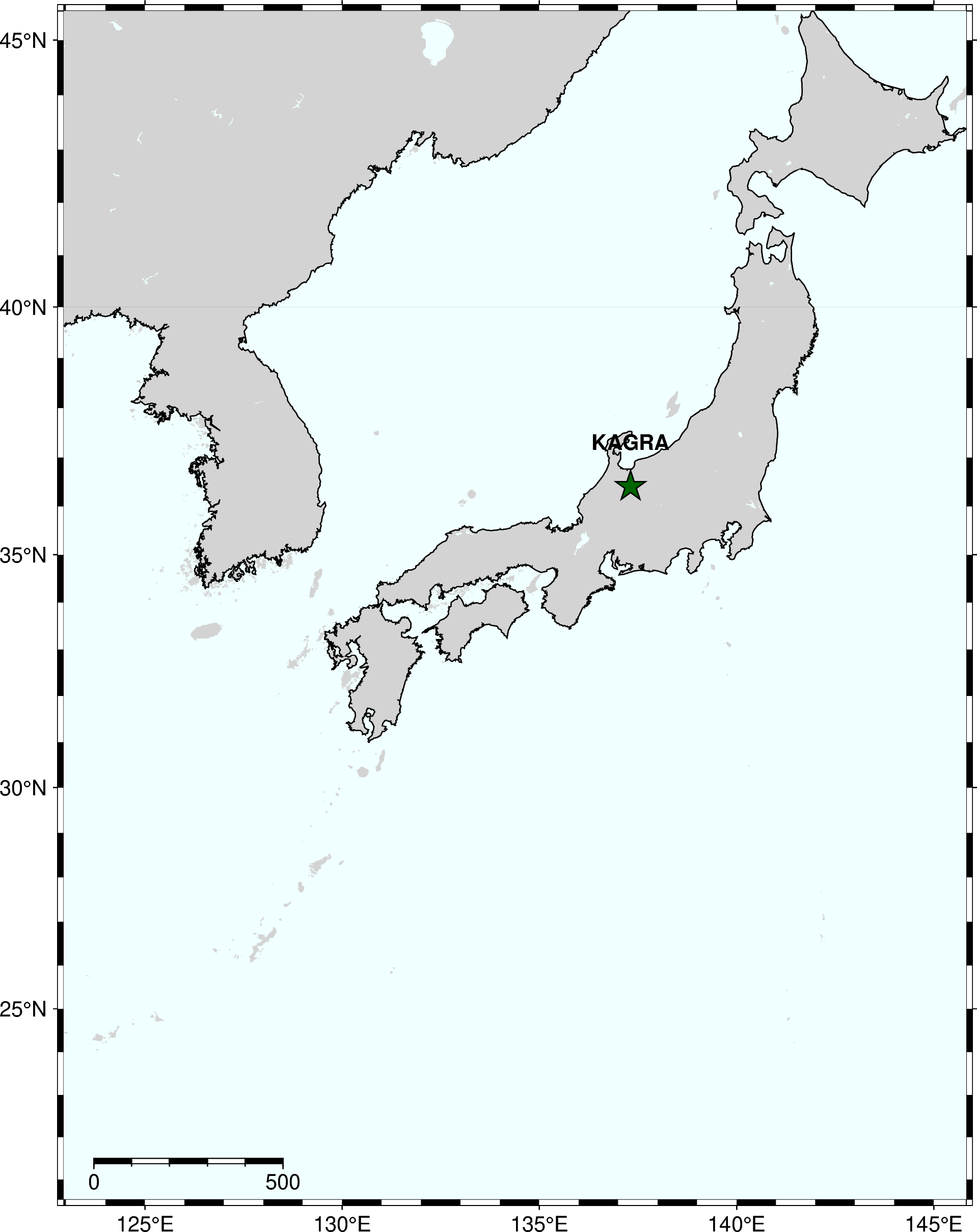

3. Close-up View of Japan Region

In GeoMap, you can automatically zoom in to a specific country region by specifying an ISO 3166-1 alpha-2 country code (such as ‘JP’, ‘US’, etc.) in the region argument. You can also add a scale bar to the map using add_scale_bar().

try:
    from gwexpy.plot import GeoMap

    # Display Japan region (specify region='JP')
    # Use Mercator projection for zoomed view, with detailed frame annotations (frame='afg')
    geo_jp = GeoMap(projection="Mercator", region="JP", frame="afg")

    geo_jp.fill_oceans(color="azure")
    geo_jp.fill_continents(color="lightgray")
    geo_jp.add_coastlines(resolution="medium")  # Draw coastlines with higher resolution

    # Plot KAGRA detector
    geo_jp.plot_detector("K1")

    # Add scale bar (500km width, at bottom-left with 0.5cm offset)
    geo_jp.add_scale_bar(width="500k", position="jBL", offset="0.5c/0.5c")

    geo_jp.show()
except ImportError as e:
    print(e)
except Exception as e:
    print(f"An error occurred: {e}")

Commonly Used ISO Country Codes (alpha-2)

Country	ISO Code	Notes
Japan	JP	Location of KAGRA
United States	US	Location of LIGO (Hanford, Livingston)
Italy	IT	Location of Virgo
Germany	DE	Location of GEO600
India	IN	LIGO-India under construction
Australia	AU
United Kingdom	GB
