Your first analysis#

Run Python code that generates two signals, then save a plot of the signals and a plot of their amplitude spectral densities (ASDs). This lesson assumes no Python or spectral-analysis knowledge. First complete Installation. Study goal: 20–30 minutes; the small synthetic dataset is intended to run locally within seconds, depending on your environment.

If you already work with detector channels and spectra, jump to familiar concepts in Python, then run the same example.

Run Python in a file#

A Python script is a text file whose name ends in .py. Python executes its statements from top to bottom. Download quickstart.py and save it in a new working folder. Open a terminal in that folder, activate the environment from the installation guide, and run:

python quickstart.py

This command belongs in the terminal. The lines in quickstart.py are Python code. When the command finishes, open asd.png from the same folder with an image viewer. The Quickstart shows the expected figure.

A notebook provides another way to run Python: paste the script into a code cell and run it. Run later cells in order, because they use names created by earlier cells. The saved figure goes into the notebook’s working directory.

Names, functions, and channels#

Read the downloaded script alongside this explanation:

from gwexpy.noise.wave import gaussian, sine
from gwexpy.timeseries import TimeSeriesDict

settings = dict(duration=16, sample_rate=512, t0=0, unit="V")
tone = sine(frequency=40, **settings)
channels = TimeSeriesDict(
    {
        "Sensor A": tone + gaussian(std=0.3, seed=10, **settings),
        "Sensor B": tone + gaussian(std=0.8, seed=20, **settings),
    }
)
spectra = channels.asd(fftlength=2, overlap=1, window="hann", method="welch")
plot = spectra.plot(xlim=(1, 256), ylabel=r"ASD [V/$\sqrt{\mathrm{Hz}}$]")
plot.gca().legend()
plot.savefig("asd.png")

A line beginning with from ... import ... makes library tools available by name. An assignment such as tone = sine(...) calls a function and stores the returned object under the name tone. Parentheses contain the function’s inputs: frequency=40 asks for a 40 Hz sine wave. A variable can hold a number, text, or an object containing both measured values and metadata.

The settings variable is a dictionary: a collection of names and values. Here it records a 16-second duration, a 512 Hz sample rate, a start time of zero, and volts as the unit. **settings passes these named values into each signal generator. All generated channels therefore use the same time axis and unit.

sine(...) produces a repeating oscillation. gaussian(...) produces random noise. The seed fixes the random sequence so that rerunning the script reproduces the same samples. The + operator adds the sine and noise sample by sample, making each simulated sensor signal.

A TimeSeries contains one channel’s values, sampling information, start time, and unit. A TimeSeriesDict groups channels under names: channels["Sensor A"] selects one channel. channels.asd(...) calculates an ASD for every channel and returns a collection of spectra. A dot, as in channels.asd, selects an operation or attribute belonging to that object.

Plot the signal against time#

Append this code to the end of quickstart.py, then run python quickstart.py again:

first_second = channels.copy().crop(0, 1)
time_plot = first_second.plot(ylabel="Voltage [V]")
time_plot.gca().legend()
time_plot.savefig("timeseries.png")
print(channels["Sensor A"].sample_rate)
print(channels["Sensor A"].unit)

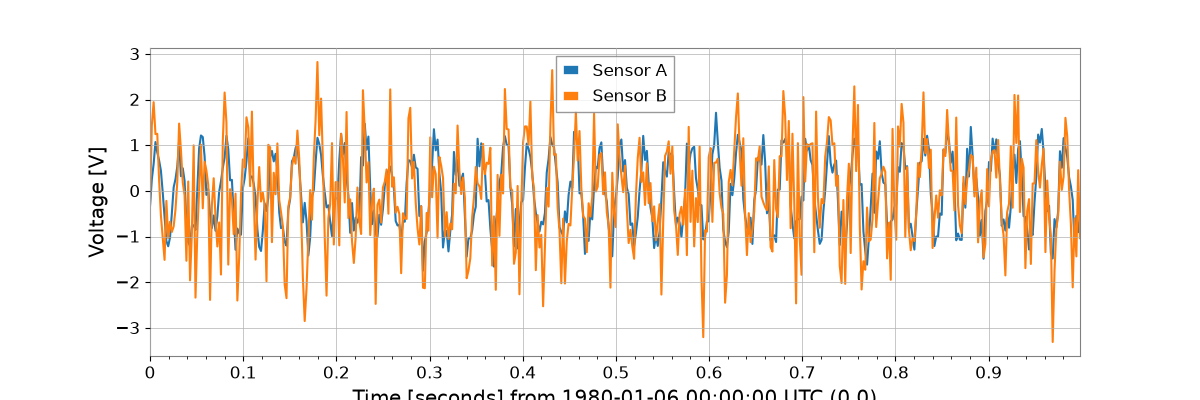

Open timeseries.png. Its horizontal axis represents time and its vertical axis shows voltage. You should see an oscillation mixed with noise, with larger fluctuations in Sensor B. .crop(0, 1) selects the interval from zero up to, but not including, one second. .crop() updates the collection it acts on. Here .copy() first creates another collection, so channels keeps the complete data.

The two print(...) statements display the sample rate and unit in the terminal. They should report 512 Hz and V. These values travel with the channel; they are not only labels on a figure.

Read the ASD axes#

An ASD describes fluctuation amplitude per square root of frequency bandwidth. Its horizontal axis is frequency in hertz (cycles per second); its vertical axis is volts per square root hertz. A tall feature near 40 Hz indicates the oscillation that appears in both channels. The surrounding broadband floor comes from the noise. Sensor B uses a larger noise standard deviation and has a higher floor.

The script uses logarithmic spectral axes: equal distances represent equal ratios. For example, moving from 10 Hz to 100 Hz spans the same distance as moving from 1 Hz to 10 Hz. The time-series figure answers when a fluctuation happened; the ASD identifies its frequency content.

The ASD estimate uses 2-second segments (fftlength=2), a Hann window, Welch averaging, and 1 second of overlap. The segment length gives a frequency-bin spacing of 1 / 2 = 0.5 Hz. Windowing reduces spectral leakage from segment boundaries; overlap reuses samples between adjacent segments. The ASD peak height depends on these settings, so do not read it as the original sine amplitude in volts.

Familiar concepts in Python#

This table connects detector-analysis terms to the runnable script above. If Python is new, the short sections on running a file and names and functions explain the syntax needed here.

Experimental concept	Python representation in this lesson
One channel with sampled values	A `TimeSeries` returned by `sine` or `gaussian`
Channel list	`TimeSeriesDict` with keys `"Sensor A"` and `"Sensor B"`
Sample rate and segment start	`sample_rate=512` and `t0=0`
Engineering unit	`unit="V"` attached to every channel
Time selection	`channels.copy().crop(0, 1)`
FFT length and overlap	`fftlength=2`, `overlap=1`, both in seconds
ASD traces	`channels.asd(...).plot()`
Save plot	`plot.savefig("asd.png")`

Here t0=0 is a convenient synthetic origin. For recorded GW data, t0 usually represents a GPS timestamp in seconds. Crop bounds use the same coordinate as the channel’s start time; for a channel starting at GPS t0, select its first second with .crop(t0, t0 + 1).

Try a controlled change#

Change the sine frequency from 40 Hz to 70 Hz, rerun the file, and inspect asd.png. The shared spectral feature should move to 70 Hz. Restore 40 Hz, then change only Sensor B’s std from 0.8 to 0.3. The two broadband floors should become comparable, while the independently seeded noise traces remain different.
