Reproducible Metadata Management with HDF5

Provenance means recording who did what, when, and how so that any analysis result can be reproduced exactly by someone else — or by yourself six months later.

In gravitational-wave data analysis, provenance is critical because:

• Parameters (GPS times, FFT lengths, filter settings) change between runs

• Software versions affect numerical results

• Sharing results with collaborators requires a self-describing file

This tutorial shows how to use gwexpy’s HDF5 interop layer together with h5py attribute metadata to build self-describing, provenance-rich analysis archives.

What this tutorial covers:

1. Saving a TimeSeries to HDF5 with basic metadata

2. Adding provenance attributes (software version, parameters, GPS time)

3. Storing derived products (ASD, spectrogram) with full lineage

4. Reading back and verifying provenance

5. Building a provenance-aware analysis pipeline helper

Setup

import warnings

warnings.filterwarnings("ignore", category=UserWarning)
warnings.filterwarnings("ignore", category=DeprecationWarning)

import datetime
import json
import os
import platform
import tempfile

import h5py
import numpy as np

import gwexpy
from gwexpy.interop.hdf5_ import from_hdf5, to_hdf5
from gwexpy.timeseries import TimeSeries

1. Synthetic Data

We create a short DARM-like time series with a known injection for later verification.

fs   = 4096.0
T    = 64.0
N    = int(T * fs)
t0   = 1_300_000_000   # GPS epoch
rng  = np.random.default_rng(0)

# Coloured noise + 50 Hz sine injection
t = np.arange(N) / fs
freqs_n = np.fft.rfftfreq(N, 1.0/fs)[1:]
asd_model = np.where(freqs_n < 50, (50/freqs_n)**3, 1.0)
fft = asd_model * np.exp(1j * rng.uniform(0, 2*np.pi, size=len(freqs_n)))
fft = np.concatenate([[0.0], fft])
noise = np.fft.irfft(fft, n=N)
inj   = 5.0 * np.sin(2*np.pi * 50.0 * t)

ts = TimeSeries(noise + inj, t0=t0, sample_rate=fs,
                name="K1:LSC-DARM_OUT_DQ", unit="ct")
print(f"TimeSeries: {len(ts)} samples @ {fs} Hz, t0={t0}")

TimeSeries: 262144 samples @ 4096.0 Hz, t0=1300000000

2. Writing to HDF5 with Provenance Metadata

to_hdf5() saves the data array and basic metadata (t0, dt, unit, name). We then add provenance attributes directly on the HDF5 dataset:

• Software versions

• Analysis parameters

• Timestamp of the run

• Host information

def build_provenance(params: dict) -> dict:
    return {
        "gwexpy_version":  gwexpy.__version__,
        "numpy_version":   np.__version__,
        "h5py_version":    h5py.__version__,
        "python_version":  platform.python_version(),
        "hostname":        platform.node(),
        "created_utc":     datetime.datetime.now(datetime.UTC).isoformat(),
        "params_json":     json.dumps(params),   # analysis parameters as JSON
    }

# Analysis parameters (these would vary between runs)
analysis_params = {
    "fftlength":  4.0,
    "overlap":    0.5,
    "method":     "median",
    "freq_range": [10.0, 2000.0],
}

fd, hdf5_path = tempfile.mkstemp(suffix=".h5")
os.close(fd)

with h5py.File(hdf5_path, "w") as f:
    # --- Raw TimeSeries ---
    raw_grp = f.require_group("raw")
    to_hdf5(ts, raw_grp, "darm")

    dset = raw_grp["darm"]
    prov = build_provenance(analysis_params)
    for key, val in prov.items():
        dset.attrs[key] = val
    dset.attrs["description"] = "Raw DARM output, uncalibrated"

    print("Written dataset attributes:")
    for k, v in dset.attrs.items():
        print(f"  {k}: {str(v)[:60]}")

print(f"\nHDF5 file: {hdf5_path}  ({os.path.getsize(hdf5_path)/1024:.1f} kB)")

Written dataset attributes:
  created_utc: 2026-04-29T14:36:27.808015+00:00
  description: Raw DARM output, uncalibrated
  dt: 0.000244140625
  gwexpy_version: 0.1.1
  h5py_version: 3.16.0
  hostname: runnervmeorf1
  name: K1:LSC-DARM_OUT_DQ
  numpy_version: 2.4.4
  params_json: {"fftlength": 4.0, "overlap": 0.5, "method": "median", "freq
  python_version: 3.11.15
  t0: 1300000000.0
  unit: ct

HDF5 file: /tmp/tmpkvv83vn8.h5  (2056.4 kB)

3. Storing Derived Products with Full Lineage

Each derived product (ASD, spectrogram, filtered series) should reference the parent dataset so the full processing chain is traceable.

# Compute ASD
asd = ts.asd(fftlength=analysis_params["fftlength"],
             overlap=analysis_params["overlap"],
             method=analysis_params["method"])

with h5py.File(hdf5_path, "a") as f:
    proc_grp = f.require_group("processed")

    # Save ASD frequencies and values as separate datasets
    freq_dset = proc_grp.create_dataset("asd_frequencies", data=asd.frequencies.value)
    freq_dset.attrs["unit"] = "Hz"

    asd_dset = proc_grp.create_dataset("asd_values", data=asd.value)
    asd_dset.attrs["unit"] = str(asd.unit)
    asd_dset.attrs["name"] = asd.name

    # Provenance: link back to parent + record parameters
    prov_asd = build_provenance(analysis_params)
    prov_asd["parent_dataset"] = "/raw/darm"
    prov_asd["processing_step"] = "ASD via Welch/median"
    for key, val in prov_asd.items():
        asd_dset.attrs[key] = val

    # Print structure
    def print_tree(name, obj):
        indent = "  " * name.count("/")
        attrs_summary = f"  [{len(obj.attrs)} attrs]" if hasattr(obj, "attrs") else ""
        print(f"{indent}{name.split('/')[-1]}{attrs_summary}")

    print("HDF5 file structure:")
    f.visititems(print_tree)

HDF5 file structure:
processed  [0 attrs]
  asd_frequencies  [1 attrs]
  asd_values  [11 attrs]
raw  [0 attrs]
  darm  [12 attrs]

4. Reading Back and Verifying Provenance

A collaborator (or future-you) can open the file and immediately understand what analysis produced each dataset, using what parameters and software.

with h5py.File(hdf5_path, "r") as f:
    # Reconstruct TimeSeries
    ts_loaded = from_hdf5(TimeSeries, f["raw"], "darm")

    # Read provenance from the raw dataset
    dset_attrs = dict(f["raw/darm"].attrs)
    params_loaded = json.loads(dset_attrs["params_json"])

    # Read back ASD
    freqs_loaded = f["processed/asd_frequencies"][:]
    asd_loaded   = f["processed/asd_values"][:]
    asd_prov     = dict(f["processed/asd_values"].attrs)

print("=== Reconstructed TimeSeries ===")
print(f"  name   : {ts_loaded.name}")
print(f"  t0     : {ts_loaded.t0.value}")
print(f"  samples: {len(ts_loaded)}")
print(f"  unit   : {ts_loaded.unit}")

print("\n=== Provenance (raw/darm) ===")
for key in ["gwexpy_version", "created_utc", "hostname"]:
    print(f"  {key}: {dset_attrs[key]}")

print("\n=== Analysis parameters ===")
for key, val in params_loaded.items():
    print(f"  {key}: {val}")

print("\n=== ASD parent reference ===")
print(f"  parent_dataset  : {asd_prov['parent_dataset']}")
print(f"  processing_step : {asd_prov['processing_step']}")

=== Reconstructed TimeSeries ===
  name   : K1:LSC-DARM_OUT_DQ
  t0     : 1300000000.0
  samples: 262144
  unit   : ct

=== Provenance (raw/darm) ===
  gwexpy_version: 0.1.1
  created_utc: 2026-04-29T14:36:27.808015+00:00
  hostname: runnervmeorf1

=== Analysis parameters ===
  fftlength: 4.0
  overlap: 0.5
  method: median
  freq_range: [10.0, 2000.0]

=== ASD parent reference ===
  parent_dataset  : /raw/darm
  processing_step : ASD via Welch/median

5. Provenance-Aware Pipeline Helper

For repeated use, wrap the provenance pattern in a reusable context manager that automatically attaches metadata to every dataset written inside it.

import contextlib


@contextlib.contextmanager
def provenance_file(path, params: dict, mode: str = "w"):
    with h5py.File(path, mode) as f:
        def save_ts(ts_obj, group_path: str, name: str, description: str = ""):
            grp = f.require_group(group_path)
            to_hdf5(ts_obj, grp, name)
            dset = grp[name]
            prov = build_provenance(params)
            for k, v in prov.items():
                dset.attrs[k] = v
            if description:
                dset.attrs["description"] = description
            return dset

        def save_array(arr, path_in_file: str, unit: str = "",
                       description: str = "", parent: str = ""):
            parts = path_in_file.rsplit("/", 1)
            grp_path, name = (parts[0], parts[1]) if len(parts) == 2 else ("", parts[0])
            grp = f.require_group(grp_path) if grp_path else f
            dset = grp.create_dataset(name, data=arr)
            if unit:        dset.attrs["unit"]        = unit
            if description: dset.attrs["description"] = description
            if parent:      dset.attrs["parent"]      = parent
            prov = build_provenance(params)
            for k, v in prov.items():
                dset.attrs[k] = v
            return dset

        yield f, save_ts, save_array

# --- Use the helper ---
fd, pipeline_path = tempfile.mkstemp(suffix="_pipeline.h5")
os.close(fd)
run_params = {"fftlength": 8.0, "overlap": 0.75, "method": "median", "run_id": "R001"}

with provenance_file(pipeline_path, run_params) as (f, save_ts, save_array):
    save_ts(ts, "input", "darm", description="Raw DARM before processing")

    asd2 = ts.asd(fftlength=run_params["fftlength"], overlap=run_params["overlap"])
    save_array(asd2.value,            "products/asd",  unit="ct/rtHz",
               description="ASD", parent="/input/darm")
    save_array(asd2.frequencies.value,"products/freqs", unit="Hz")

print(f"Pipeline archive: {pipeline_path}  ({os.path.getsize(pipeline_path)/1024:.1f} kB)")

# Verify run_id was stored
with h5py.File(pipeline_path, "r") as f:
    params_back = json.loads(f["input/darm"].attrs["params_json"])
    print(f"Verified run_id: {params_back['run_id']}")

Pipeline archive: /tmp/tmpfbfpi6uf_pipeline.h5  (2314.4 kB)
Verified run_id: R001

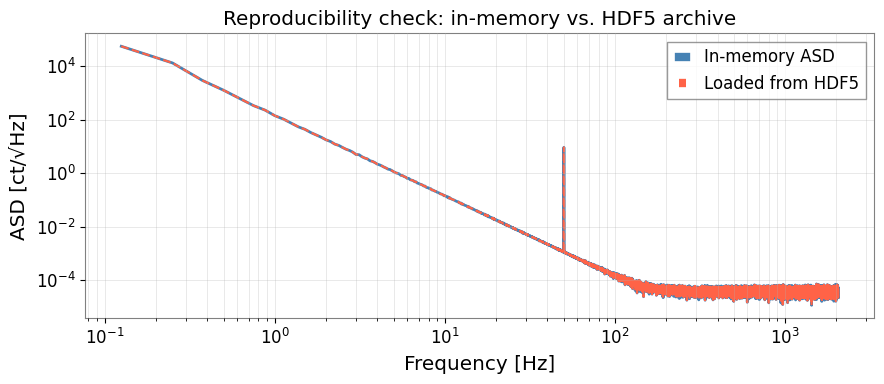

6. Visualise the Stored ASD (Reproducibility Check)

Verify that the ASD loaded from the archive matches the in-memory result.

import matplotlib.pyplot as plt

with h5py.File(pipeline_path, "r") as f:
    freqs_ar = f["products/freqs"][:]
    asd_ar   = f["products/asd"][:]

fig, ax = plt.subplots(figsize=(9, 4))
ax.loglog(asd2.frequencies.value[1:], asd2.value[1:],
          color="steelblue", lw=2, label="In-memory ASD")
ax.loglog(freqs_ar[1:], asd_ar[1:],
          color="tomato", ls="--", lw=1.5, label="Loaded from HDF5")
ax.set_xlabel("Frequency [Hz]")
ax.set_ylabel("ASD [ct/√Hz]")
ax.set_title("Reproducibility check: in-memory vs. HDF5 archive")
ax.legend()
ax.grid(True, which="both", alpha=0.4)
plt.tight_layout()
plt.show()

max_diff = np.max(np.abs(asd2.value[1:] - asd_ar[1:]) / (asd2.value[1:] + 1e-300))
print(f"Max relative difference: {max_diff:.2e}  (should be ~machine epsilon)")

Max relative difference: 0.00e+00  (should be ~machine epsilon)

Summary

Step	API / Pattern	Purpose
Write TimeSeries	to_hdf5(ts, group, path)	Save data array + basic metadata
Read TimeSeries	from_hdf5(TimeSeries, group, path)	Reconstruct from archive
Add provenance	dset.attrs[key] = value	Software version, params, timestamp
Structured pipeline	provenance_file(path, params) context manager	Auto-attach provenance to all writes

Recommended provenance attributes:

Attribute	Content
gwexpy_version	gwexpy.__version__
created_utc	datetime.datetime.utcnow().isoformat()
params_json	json.dumps(analysis_params)
parent_dataset	HDF5 path to the input dataset
processing_step	Human-readable description of what was done

Tips:

• Use h5py.File(..., "a") to append to existing archives without overwriting.

• Store params_json as a JSON string so arbitrary nested parameters are preserved.

• For long pipelines, add a pipeline_version attribute tied to your analysis code’s git hash.
