Case Study: GBD Format I/O

This tutorial demonstrates reading and writing GBD files — the native binary format of GRAPHTEC data loggers (GL Series) widely used in KAGRA and other experiments for PEM/environmental monitoring.

What is GBD?

GBD (GRAPHTEC Binary Data) is a proprietary format featuring:

• ASCII header with metadata (channel names, sample rate, local timestamp, amplitude ranges)

• Binary data block (float32/int16 depending on model)

• Multi-channel recording (up to 32 channels simultaneously)

• Optional digital (logic) channels

Legacy migration note:

The gbd2gwf.py and read_gbd.py scripts in legacy KAGRA repositories have been consolidated into gwexpy.timeseries.io.gbd.

See the File I/O Supported Formats Guide for the current public direct-I/O contract.

import warnings

warnings.filterwarnings("ignore", category=UserWarning)
warnings.filterwarnings("ignore", category=DeprecationWarning)

import tempfile
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np

from gwexpy.timeseries import TimeSeries, TimeSeriesDict, TimeSeriesMatrix

1. Create a Synthetic GBD File for Demonstration

We synthesize a minimal valid GBD file so this tutorial runs without requiring real hardware.

The GBD structure is:

[ASCII Header]  (fixed HeaderSize bytes)
[Binary Data]   (N_counts × N_channels × itemsize bytes)

def make_synthetic_gbd(path: Path, n_samples: int = 10000, fs: float = 1000.0):
    """Write a minimal synthetic GBD file (GRAPHTEC GL-series format)."""
    rng = np.random.default_rng(7)
    t = np.arange(n_samples) / fs

    ch0 = 2.0 * np.sin(2 * np.pi * 10.0 * t) + 0.1 * rng.normal(0, 1, n_samples)   # 10 Hz
    ch1 = 1.5 * np.sin(2 * np.pi * 50.0 * t) + 0.1 * rng.normal(0, 1, n_samples)   # 50 Hz
    ch2 = np.where(np.sin(2 * np.pi * 1.0 * t) > 0, 1.0, 0.0).astype(np.float32)   # digital trigger

    local_start = "2023-05-20 14:30:00.000"
    local_stop  = f"2023-05-20 14:30:{n_samples / fs:.3f}"

    header_lines = [
        "[Header]",
        "HeaderSize = 1024",
        f"Start = {local_start}",
        f"Stop  = {local_stop}",
        f"Sample = {1000.0 / fs:.3f}ms",
        "Type = little,float32",
        "Order = CH0, CH1, CH2_LOGIC",
        f"Counts = {n_samples}",
        "$AMP",
        "CH0 = , , 10V",
        "CH1 = , , 5V",
        "CH2_LOGIC = , , 1V",
    ]
    header_str = "\r\n".join(header_lines) + "\r\n"
    header_bytes = header_str.encode("ascii")
    # Pad to 1024 bytes
    header_bytes = header_bytes.ljust(1024, b"\x00")

    # Data block: interleaved float32 (N_samples × N_channels)
    data = np.stack([ch0, ch1, ch2], axis=1).astype(np.float32)  # (N, 3)

    with open(path, "wb") as f:
        f.write(header_bytes)
        f.write(data.tobytes())

    print(f"Written: {path}  ({path.stat().st_size / 1024:.1f} KB)")


# Write to a temporary file
tmpdir = Path(tempfile.mkdtemp())
gbd_path = tmpdir / "synthetic_pem.gbd"
make_synthetic_gbd(gbd_path, n_samples=10000, fs=1000.0)

Written: /tmp/tmpk3vcehja/synthetic_pem.gbd  (118.2 KB)

2. Read GBD File into TimeSeriesDict

Use TimeSeriesDict.read() with format='gbd'. The timezone parameter is required because GBD timestamps are stored in local time.

# Read all channels
tsd = TimeSeriesDict.read(
    str(gbd_path),
    format='gbd',
    timezone='Asia/Tokyo',   # JST (UTC+9) – required for GPS time conversion
)

print("Channels read:", list(tsd.keys()))
for name, ts in tsd.items():
    print(f"  {name:15s}: {len(ts.value):6d} samples, dt={ts.dt}, unit={ts.unit}")

Channels read: ['CH0', 'CH1', 'CH2_LOGIC']
  CH0            :  10000 samples, dt=0.001 s, unit=V
  CH1            :  10000 samples, dt=0.001 s, unit=V
  CH2_LOGIC      :  10000 samples, dt=0.001 s, unit=V

# Read only specific channels
tsd_subset = TimeSeriesDict.read(
    str(gbd_path),
    format='gbd',
    timezone='Asia/Tokyo',
    channels=['CH0', 'CH1'],   # only analog channels
)

print("Subset channels:", list(tsd_subset.keys()))

Subset channels: ['CH0', 'CH1']

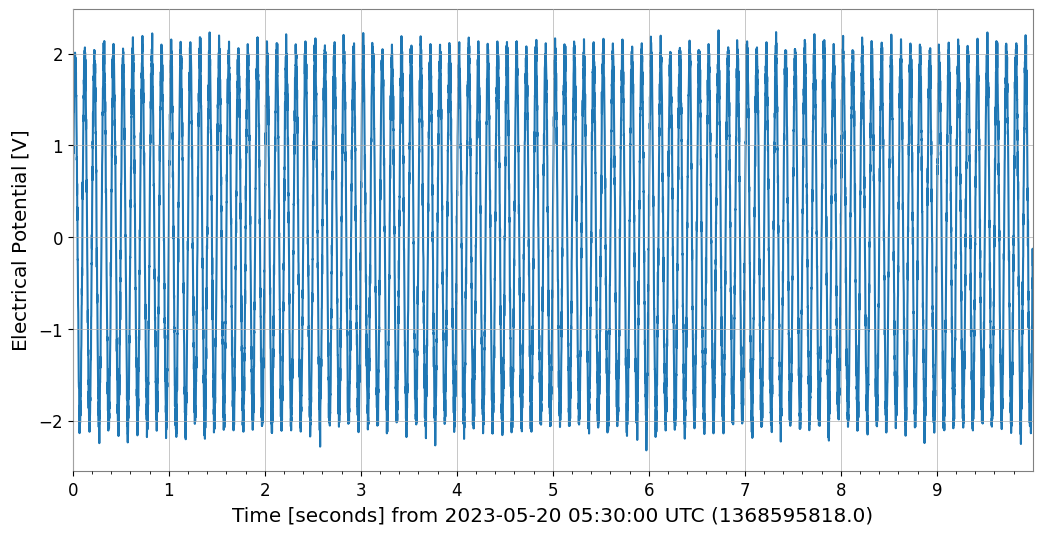

# Read a single TimeSeries
ts_ch0 = TimeSeries.read(
    str(gbd_path),
    format='gbd',
    timezone='Asia/Tokyo',
    channels=['CH0'],
)

print(f"CH0: t0={ts_ch0.t0:.3f}, dt={ts_ch0.dt}, N={len(ts_ch0.value)}")

ts_ch0.plot(xscale='seconds');

CH0: t0=1368595818.000 s, dt=0.001 s, N=10000

3. Signal Analysis on GBD Data

Once loaded, all gwexpy analysis methods are available.

ts_ch0 = tsd['CH0']
ts_ch1 = tsd['CH1']

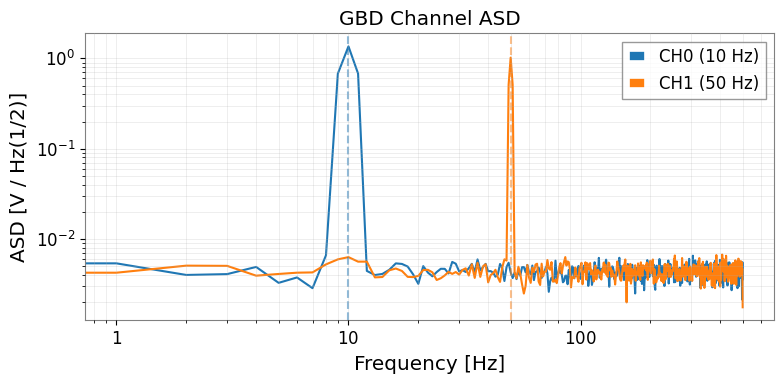

# ASD comparison
asd_ch0 = ts_ch0.asd(fftlength=1.0, overlap=0.5)
asd_ch1 = ts_ch1.asd(fftlength=1.0, overlap=0.5)

fig, ax = plt.subplots(figsize=(8, 4))
ax.loglog(asd_ch0.frequencies.value, asd_ch0.value, label='CH0 (10 Hz)')
ax.loglog(asd_ch1.frequencies.value, asd_ch1.value, label='CH1 (50 Hz)')
ax.axvline(10,  color='C0', linestyle='--', alpha=0.5)
ax.axvline(50,  color='C1', linestyle='--', alpha=0.5)
ax.set_xlabel('Frequency [Hz]')
ax.set_ylabel(f'ASD [{asd_ch0.unit}]')
ax.set_title('GBD Channel ASD')
ax.legend()
ax.grid(True, which='both', alpha=0.3)
plt.tight_layout()

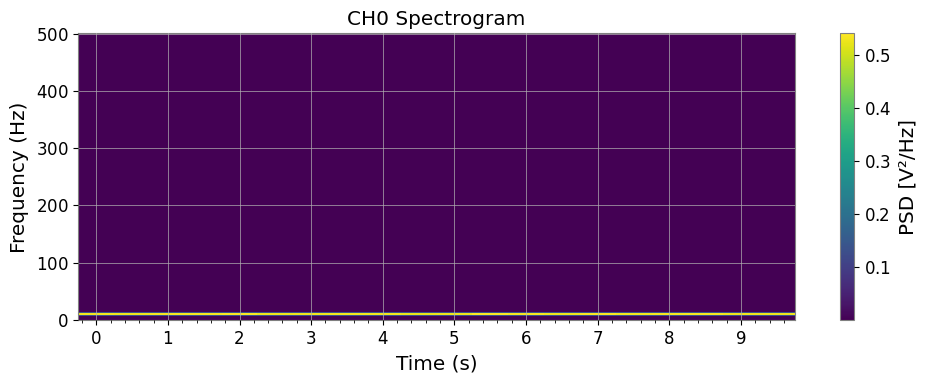

# Spectrogram of CH0
sg = ts_ch0.spectrogram(stride=0.5, fftlength=0.4, overlap=0.2)

fig, ax = plt.subplots(figsize=(10, 4))
mesh = ax.pcolormesh(
    sg.times.value,
    sg.frequencies.value,
    sg.value.T,
    shading='auto',
)
ax.set_xscale('auto-gps')
ax.set_xlabel('Time (s)')
ax.set_ylabel('Frequency (Hz)')
ax.set_title('CH0 Spectrogram')
plt.colorbar(mappable=mesh, ax=ax, label='PSD [V²/Hz]')
plt.tight_layout()

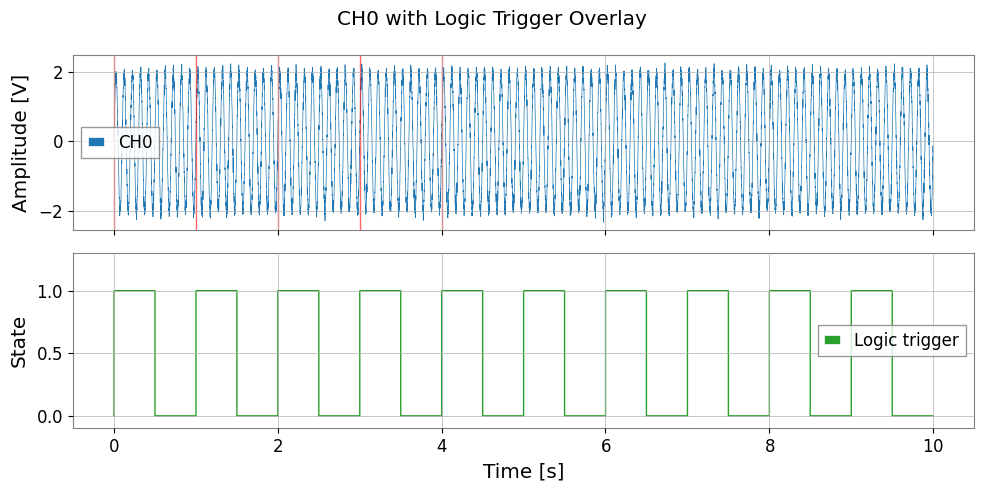

# Digital channel: use as event trigger
ts_logic = tsd['CH2_LOGIC']

# Find trigger-on times (0→1 transitions)
logic_val = ts_logic.value
transitions = np.where(np.diff(logic_val) > 0.5)[0]  # rising edges

t_axis = np.arange(len(logic_val)) * ts_logic.dt.value
trigger_times = t_axis[transitions]

print(f"Logic trigger ON events: {len(trigger_times)}")

fig, axes = plt.subplots(2, 1, figsize=(10, 5), sharex=True)
axes[0].plot(t_axis, ts_ch0.value, lw=0.5, label='CH0')
for tt in trigger_times[:5]:
    axes[0].axvline(tt, color='red', alpha=0.6, lw=1.0)
axes[0].set_ylabel('Amplitude [V]')
axes[0].legend()

axes[1].step(t_axis, logic_val, where='post', color='C2', lw=1.0, label='Logic trigger')
axes[1].set_xlabel('Time [s]')
axes[1].set_ylabel('State')
axes[1].set_ylim(-0.1, 1.3)
axes[1].legend()

plt.suptitle('CH0 with Logic Trigger Overlay')
plt.tight_layout()

Logic trigger ON events: 10

4. TimeSeriesMatrix from GBD

For batch multi-channel analysis, load directly into a TimeSeriesMatrix.

# Read all analog channels as TimeSeriesMatrix
tsm = TimeSeriesMatrix.read(
    str(gbd_path),
    format='gbd',
    timezone='Asia/Tokyo',
    channels=['CH0', 'CH1'],
)

print("TimeSeriesMatrix shape:", tsm.shape)  # (2, 1, N)

# ASD of all channels at once
try:
    asd_all = tsm.asd(fftlength=1.0, overlap=0.5)
    asd_all.plot(subplots=True)
except AttributeError:
    # GBD reader may create irregular time axis; fall back to per-channel ASD
    _asds = {name: tsd[name].asd(fftlength=1.0, overlap=0.5) for name in list(tsd.keys())[:2]}
    print("Per-channel ASD:", {k: f"{v.df.value:.4f} Hz/bin" for k, v in _asds.items()})

TimeSeriesMatrix shape: (2, 1, 10000)
Per-channel ASD: {'CH0': '1.0000 Hz/bin', 'CH1': '1.0000 Hz/bin'}

5. Timezone Handling

GBD files store timestamps in local time (the logger’s clock). gwexpy converts these to GPS time automatically using the timezone parameter.

Timezone	IANA name	UTC offset
Japan Standard Time (KAGRA)	'Asia/Tokyo'	+09:00
US Eastern (LIGO Hanford, LLO)	'US/Eastern'	−05:00 / −04:00
Europe/Central (Virgo)	'Europe/Rome'	+01:00 / +02:00
UTC	'UTC'	±00:00

# Check GPS start time resulting from timezone conversion
tsd_jst = TimeSeriesDict.read(str(gbd_path), format='gbd', timezone='Asia/Tokyo')
tsd_utc = TimeSeriesDict.read(str(gbd_path), format='gbd', timezone='UTC')

t0_jst = tsd_jst['CH0'].t0
t0_utc = tsd_utc['CH0'].t0
print(f"t0 (JST→GPS): {t0_jst:.3f}")
print(f"t0 (UTC→GPS): {t0_utc:.3f}")
print(f"Difference: {(t0_jst - t0_utc).value:.1f} s  (should be 9×3600 = 32400 s)")

t0 (JST→GPS): 1368595818.000 s
t0 (UTC→GPS): 1368628218.000 s
Difference: -32400.0 s  (should be 9×3600 = 32400 s)

6. Migration Guide: Legacy gbd2gwf.py → gwexpy

Before (legacy scripts):

# gbd2gwf.py style
import numpy as np
from gwpy.timeseries import TimeSeries, TimeSeriesDict

# Manual header parsing
with open('data.gbd', 'rb') as f:
    header = f.read(1024).decode('ascii')
    # ... parse Start, Sample, Order, Counts by hand ...
    n_ch = len(channels)
    data = np.frombuffer(f.read(), dtype='<f4').reshape(-1, n_ch)

# Manual GPS time conversion
import pytz
from gwpy.time import to_gps
tz = pytz.timezone('Asia/Tokyo')
t_local = datetime.strptime(start_str, '%Y-%m-%d %H:%M:%S')
t_utc = tz.localize(t_local).astimezone(pytz.utc)
gps_start = to_gps(t_utc.strftime('%Y-%m-%dT%H:%M:%S'))

# Build dict manually
tsd = TimeSeriesDict()
for i, ch in enumerate(channels):
    tsd[ch] = TimeSeries(data[:, i] * scale[i], t0=gps_start, dt=dt)

After (gwexpy):

from gwexpy.timeseries import TimeSeriesDict

tsd = TimeSeriesDict.read(
    'data.gbd',
    format='gbd',
    timezone='Asia/Tokyo',
)

Summary

Task	API
Read all channels	TimeSeriesDict.read(path, format='gbd', timezone='Asia/Tokyo')
Read subset	Add channels=['CH0', 'CH1']
Read single channel	TimeSeries.read(path, format='gbd', timezone=..., channels=['CH0'])
Read as matrix	TimeSeriesMatrix.read(path, format='gbd', timezone=..., channels=...)
Auto-detect digital channels	Channels named ALARM, LOGIC*, PULSE* are binarized
Override digital channels	digital_channels=['CH2_LOGIC', ...]
Override GPS epoch	epoch=1234567890 (GPS seconds)

See also:

• Intro TimeSeries

• Interoperability Basics
