Noise Budgeting and Multi-Channel Correlation Analysis

In precision measurements (such as gravitational wave detectors), identifying the origin of noise contained in the main observation data is extremely important. This process is called Noise Budgeting.

The sensitivity curve of a gravitational wave detector is limited by ground vibrations at low frequencies, thermal noise at mid frequencies, and statistical noise (shot noise) at high frequencies, exhibiting a characteristic “U-shaped” profile.

In this tutorial, we will demonstrate the analysis with the following flow:

1. Multi-Channel Data Simulation: In addition to the main channel, we generate auxiliary channels for ground vibrations, magnetic field fluctuations, circuit noise, etc.

2. Coherence Mapping: Calculate the coherence between the main channel and each auxiliary channel to identify the primary noise sources.

3. Transfer Function Estimation: Estimate the “coupling strength (transfer function)” from the auxiliary channels to the main channel.

4. Noise Projection: Using the transfer function, convert (project) the noise from the auxiliary channels into the units of the main channel.

5. Noise Budget Visualization (Noise Budget Plot): Overlay all noise sources to reveal the breakdown of the observed “U-shaped” spectrum.

import matplotlib.pyplot as plt
import numpy as np
from scipy import signal

from gwexpy import TimeSeries, TimeSeriesDict
from gwexpy.noise.asd import from_pygwinc
from gwexpy.noise.wave import from_asd

1. Multi-Channel Data Simulation (Creating a U-Shaped Spectrum)

We create a sensitivity curve that mimics a gravitational wave detector.

• MAIN: The observation target. Has a “U-shaped” spectrum dominated by ground vibrations in the low-frequency region and actuator/circuit system noise in the high-frequency region.

• AUX_SEIS: Monitors low-frequency ground vibrations.

• AUX_MAG: Magnetic field monitor (including 60Hz power line).

• AUX_ELEC: High-frequency noise source (e.g., control system or readout circuit noise).

fs = 2048.0
duration = 64.0
t = np.arange(0, duration, 1 / fs)
n_samples = len(t)

np.random.seed(42)
rng = np.random.default_rng(42)

# Get aLIGO sensitivity curve (ASD) and use it as the reference noise for the main channel
fmax = fs / 2
asd_main = from_pygwinc(
    "aLIGO", fmin=5.0, fmax=fmax, df=1.0 / duration, quantity="strain"
)
main_base = from_asd(asd_main, duration, fs, t0=0, rng=rng).highpass(5)

# --- Generate Auxiliary Channels (Noise Sources) ---
# 1. Ground vibration (low-frequency dominance)
b_low, a_low = signal.butter(2, 2.0, fs=fs, btype="low")
seis_val = signal.lfilter(b_low, a_low, np.random.normal(0, 50.0, n_samples))
seis = TimeSeries(seis_val, sample_rate=fs, name="Seismic", unit="um")

# 2. Magnetic field (60Hz + flat)
mag_val = np.random.normal(0, 0.1, n_samples)
mag_val += 0.8 * np.sin(2 * np.pi * 60 * t)  # 60Hz
mag = TimeSeries(mag_val, sample_rate=fs, name="Magnetic", unit="nT")

# 3. High-frequency noise source (circuit system)
elec_val = np.random.normal(0, 1.0, n_samples)
elec = TimeSeries(elec_val, sample_rate=fs, name="Electronic", unit="V")

# --- Generate Main Channel  ---
main = (
    main_base
    + seis * (2e-21 * main_base.unit / seis.unit)
    + mag * (1e-22 * main_base.unit / mag.unit)
    + elec * (2e-22 * main_base.unit / elec.unit)
)


# Combine into dictionary
tsd = TimeSeriesDict()
tsd["MAIN"] = main
tsd["AUX_SEIS"] = seis
tsd["AUX_MAG"] = mag
tsd["AUX_ELEC"] = elec

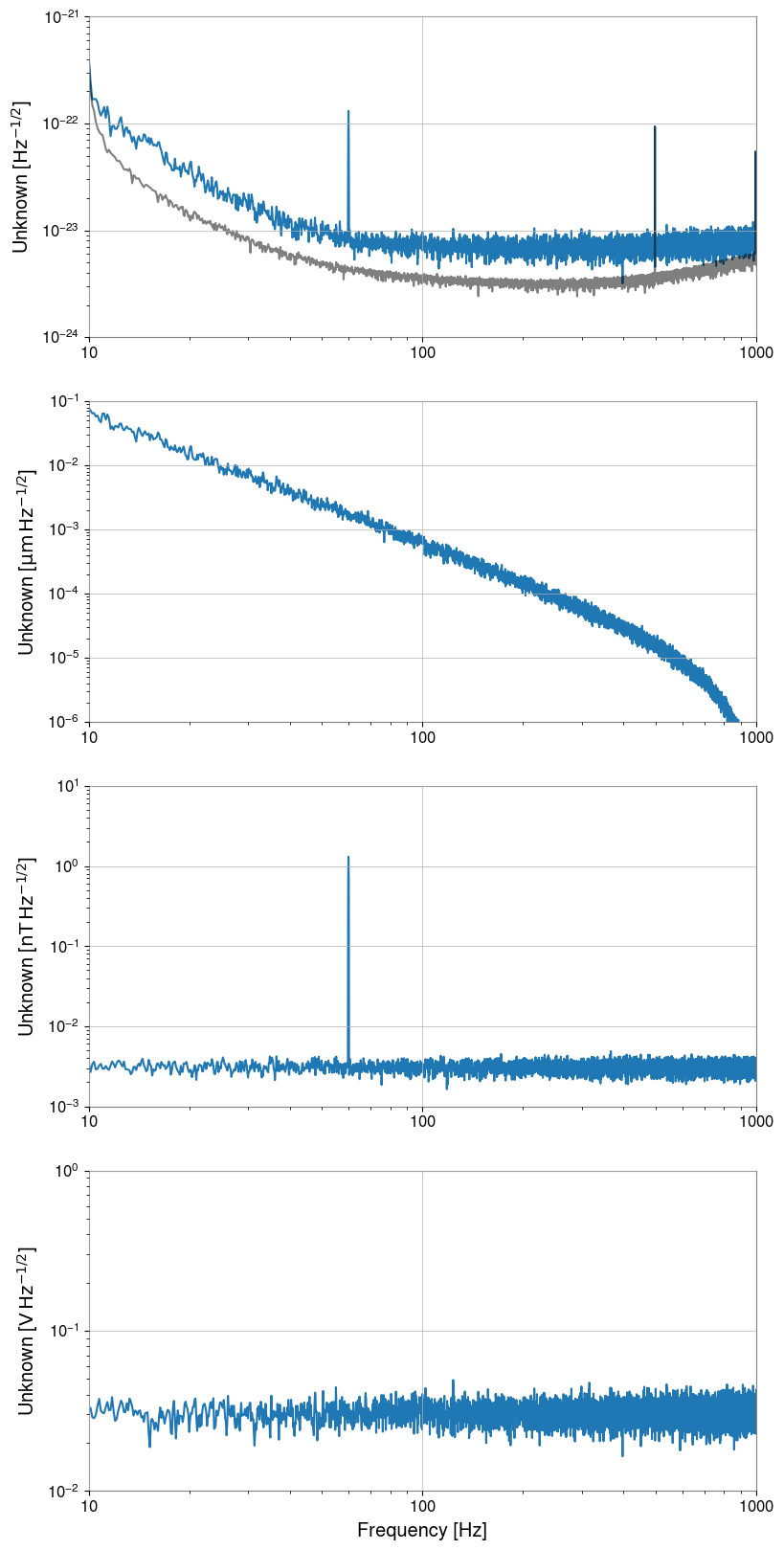

# Check overall ASD
asd_dict = tsd.asd(fftlength=8, overlap=4, method="welch")
plot = asd_dict.plot(xscale="log", yscale="log", subplots=True, sharex=True)
axes = plot.get_axes()
axes[0].plot(
    main_base.asd(fftlength=8, overlap=4, method="welch"), alpha=0.5, color="black"
)
axes[0].set_xlim(10, 1000)
axes[0].set_ylim(1e-24, 1e-21)
axes[1].set_ylim(1e-6, 1e-1)
axes[2].set_ylim(1e-3, 1e1)
axes[3].set_ylim(1e-2, 1e0)
plt.show()

# You can see that the MAIN channel (expected to be black or blue) has a "U-shaped" profile,
# decreasing at low frequencies and increasing at high frequencies.

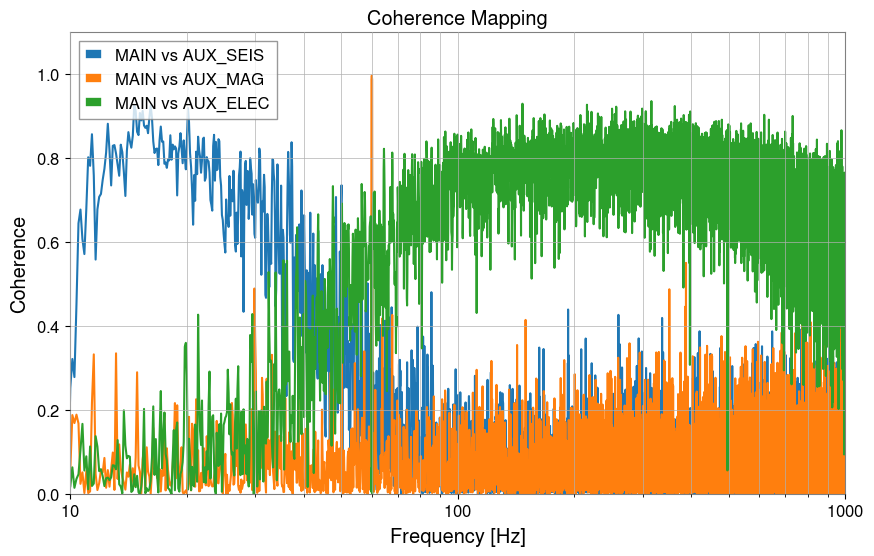

2. Coherence Mapping

We check which sensors have high coherence with the left side, bottom, and right side of the “U-shape” of the main channel.

aux_names = ["AUX_SEIS", "AUX_MAG", "AUX_ELEC"]

plt.figure(figsize=(10, 6))
for name in aux_names:
    coh = tsd["MAIN"].coherence(tsd[name], fftlength=8)
    plt.semilogx(coh.frequencies, coh.value, label=f"MAIN vs {name}")

plt.title("Coherence Mapping")
plt.xlabel("Frequency [Hz]")
plt.ylabel("Coherence")
plt.xlim(10, 1000)
plt.ylim(0, 1.1)
plt.legend()
plt.grid(True, which="both")
plt.show()

# We can see that it correlates with SEIS at low frequencies (below 10Hz) and with ELEC at high frequencies (above 100Hz).

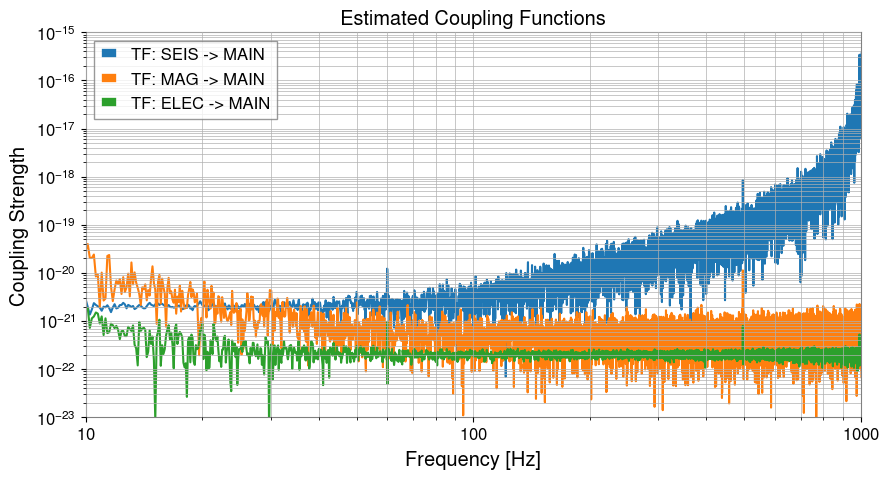

3. Transfer Function Estimation

We estimate the coupling coefficients (transfer functions) in each frequency band.

tf_seis = tsd["AUX_SEIS"].transfer_function(tsd["MAIN"], fftlength=8)
tf_mag = tsd["AUX_MAG"].transfer_function(tsd["MAIN"], fftlength=8)
tf_elec = tsd["AUX_ELEC"].transfer_function(tsd["MAIN"], fftlength=8)

plt.figure(figsize=(10, 5))
plt.loglog(tf_seis.abs(), label="TF: SEIS -> MAIN")
plt.loglog(tf_mag.abs(), label="TF: MAG -> MAIN")
plt.loglog(tf_elec.abs(), label="TF: ELEC -> MAIN")

plt.xlim(10, 1000)
plt.ylim(1e-23, 1e-15)
plt.title("Estimated Coupling Functions")
plt.xlabel("Frequency [Hz]")
plt.ylabel("Coupling Strength")
plt.legend()
plt.grid(True, which="both")
plt.show()

4. Noise Projection

main_ch = tsd["MAIN"]
proj_seis = asd_dict["AUX_SEIS"] * tf_seis.abs()
proj_mag = asd_dict["AUX_MAG"] * tf_mag.abs()
proj_elec = asd_dict["AUX_ELEC"] * tf_elec.abs()

# Calculate total contribution as the square root of the sum of squares
total_proj = (proj_seis**2 + proj_mag**2 + proj_elec**2) ** 0.5

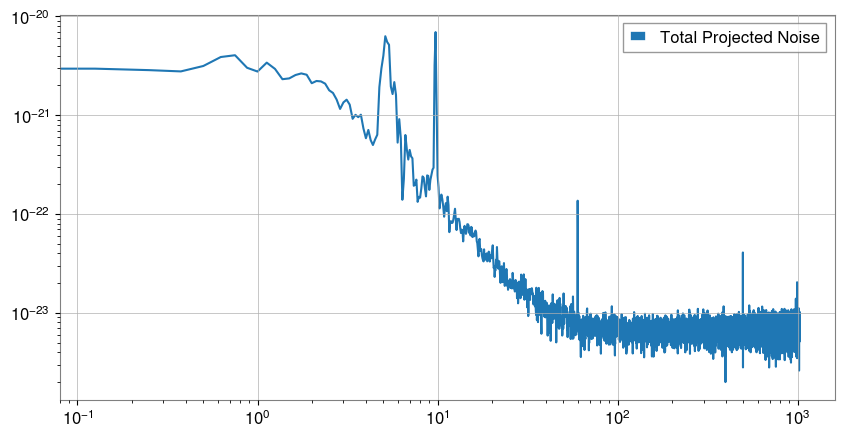

# Display total contribution in a graph
plt.figure(figsize=(10, 5))
plt.loglog(total_proj, label="Total Projected Noise")
plt.legend()
plt.show()

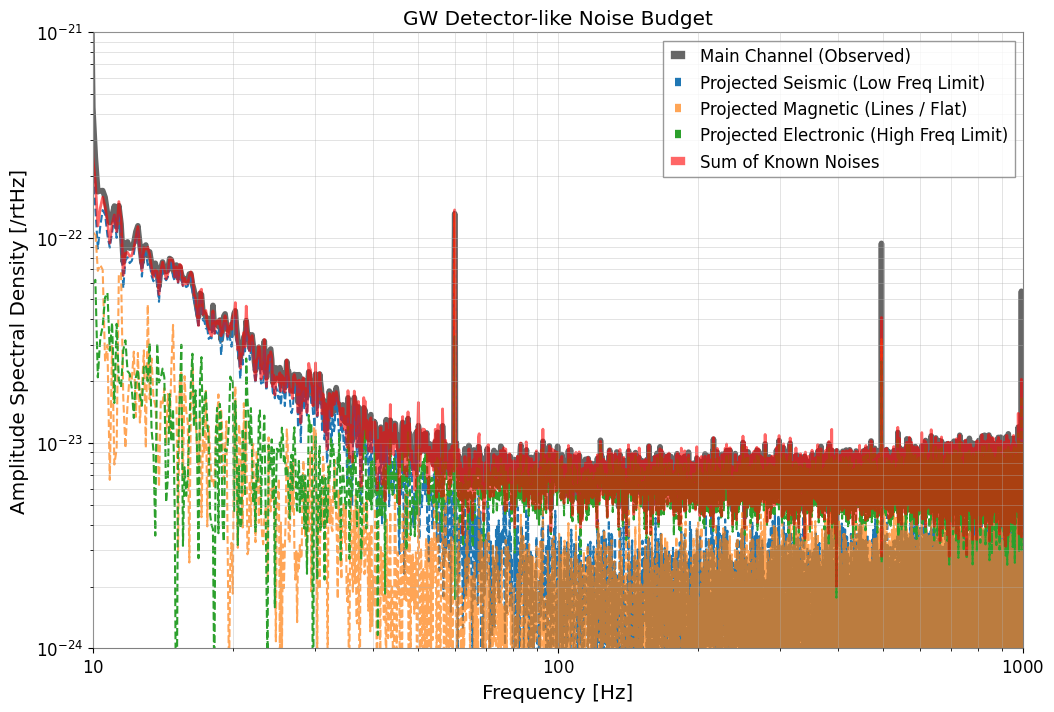

5. Noise Budget Visualization (Noise Budget Plot)

We display how the “U-shaped” noise of the main channel is explained and decomposed.

plt.figure(figsize=(12, 8))

# Actually observed sensitivity curve
plt.loglog(
    asd_dict["MAIN"],
    label="Main Channel (Observed)",
    color="black",
    linewidth=4,
    alpha=0.6,
)

# Each projected component
plt.loglog(proj_seis, label="Projected Seismic (Low Freq Limit)", ls="--")
plt.loglog(proj_mag, label="Projected Magnetic (Lines / Flat)", ls="--", alpha=0.7)
plt.loglog(proj_elec, label="Projected Electronic (High Freq Limit)", ls="--")

# Total projection
plt.loglog(total_proj, label="Sum of Known Noises", color="red", linewidth=2, alpha=0.6)

plt.title("GW Detector-like Noise Budget")
plt.xlabel("Frequency [Hz]")
plt.ylabel(f"Amplitude Spectral Density [{main_ch.unit}/rtHz]")
plt.xlim(10, 1000)
plt.ylim(1e-24, 1e-21)
plt.legend(frameon=True, facecolor="white", loc="upper right")
plt.grid(True, which="both", ls="-", alpha=0.5)
plt.show()

# In this way, we can see at a glance that the observed "U-shaped" sensitivity curve is formed by the combination of multiple noise sources.
