TimeSeriesMatrix チュートリアル

TimeSeriesMatrix は SeriesMatrix を TimeSeries 用に拡張した 3 次元配列コンテナです（shape: Nrow × Ncol × Nsample）。

• dt / t0 / times など TimeSeries 互換のエイリアス

• 要素アクセスで TimeSeries を返す（tsm[i, j]）

• 時間領域処理（detrend/bandpass/resample …）を要素ごとに適用

• FFT/PSD/ASD や coherence などのスペクトル解析（返り値は FrequencySeriesMatrix）

• 表示系 (plot, step, repr, _repr_html_) をそのまま使用

このノートブックでは追加のユーティリティ関数は定義せず、クラスメソッドを直接呼び出して動作を確認します。

import matplotlib.pyplot as plt
import numpy as np
from astropy import units as u

from gwexpy.timeseries import TimeSeries, TimeSeriesMatrix

代表データを用意

• 2×2 の TimeSeriesMatrix を作り、dt/t0/times やメタデータ（unit/name/channel）を確認します。

rng = np.random.default_rng(0)

# SampleSet
n = 1024
dt = (1 / 256) * u.s
t0 = 0 * u.s

t = (np.arange(n) * dt).to_value(u.s)

tone10 = np.sin(2 * np.pi * 10 * t)
tone20 = np.sin(2 * np.pi * 20 * t + 0.3)

data = np.empty((2, 2, n), dtype=float)
data[0, 0] = 0.5 * tone10 + 0.05 * rng.normal(size=n)
data[0, 1] = 0.5 * tone20 + 0.05 * rng.normal(size=n)
data[1, 0] = 0.3 * tone10 + 0.3 * tone20 + 0.05 * rng.normal(size=n)
data[1, 1] = 0.2 * tone10 - 0.4 * tone20 + 0.05 * rng.normal(size=n)

units = np.full((2, 2), u.V)
names = [["ch00", "ch01"], ["ch10", "ch11"]]
channels = [["X:A", "X:B"], ["Y:A", "Y:B"]]

tsm = TimeSeriesMatrix(
    data,
    dt=dt,
    t0=t0,
    units=units,
    names=names,
    channels=channels,
    rows={"r0": {"name": "row0"}, "r1": {"name": "row1"}},
    cols={"c0": {"name": "col0"}, "c1": {"name": "col1"}},
    name="demo",
)

display(tsm)
tsm.plot();

SeriesMatrix: shape=(2, 2, 1024), name='demo'

• epoch: 0.0 s
• x0: 0.0 s, dx: 0.00390625 s, N_samples: 1024
• xunit: s

Row Metadata

	name	channel	unit
key
r0	row0
r1	row1

Column Metadata

	name	channel	unit
key
c0	col0
c1	col1

Element Metadata

	unit	name	channel	row	col
0	V	ch00	X:A	0	0
1	V	ch01	X:B	0	1
2	V	ch10	Y:A	1	0
3	V	ch11	Y:B	1	1

多様な入力パターン（コンストラクタ例）

dt/t0 のほか、sample_rate や times、TimeSeries の 2D リスト、Quantity 入力などを確認します。

print("=== TimeSeriesMatrix ===")
times = tsm.times

# 1: sample_rate （dt ）
tsm_sr = TimeSeriesMatrix(
    data,
    sample_rate=256 * u.Hz,
    t0=t0,
    units=units,
    names=names,
    channels=channels,
)
print("case1 sample_rate", "dt", tsm_sr.dt, "sample_rate", tsm_sr.sample_rate)

# 2: times （ Sample ）
tsm_times = TimeSeriesMatrix(data, times=times, units=units, names=names)
print("case2 times", "dt", tsm_times.dt, "t0", tsm_times.t0, "N", tsm_times.N_samples)

# 3: TimeSeries 2D Listfrom
ts00 = TimeSeries(data[0, 0], times=times, unit=u.V, name="ch00", channel="X:A")
ts01 = TimeSeries(data[0, 1], times=times, unit=u.V, name="ch01", channel="X:B")
ts10 = TimeSeries(data[1, 0], times=times, unit=u.V, name="ch10", channel="Y:A")
ts11 = TimeSeries(data[1, 1], times=times, unit=u.V, name="ch11", channel="Y:B")
tsm_from_ts = TimeSeriesMatrix([[ts00, ts01], [ts10, ts11]])
print("case3 from TimeSeries", tsm_from_ts.shape, "dt", tsm_from_ts.dt)

# 4: Quantity （units Set）
tsm_q = TimeSeriesMatrix((data * u.mV), dt=dt, t0=t0)
print("case4 Quantity meta unit", tsm_q.meta[0, 0].unit)

# : dt sample_rate / t0 epoch
for kwargs in [
    dict(dt=dt, sample_rate=256 * u.Hz, t0=t0),
    dict(dt=dt, t0=t0, epoch=t0),
]:
    try:
        _ = TimeSeriesMatrix(data, **kwargs)
    except Exception as e:
        print("error", kwargs, "->", type(e).__name__, e)

=== TimeSeriesMatrix ===
case1 sample_rate dt 0.00390625 s sample_rate 256.0 Hz
case2 times dt 0.00390625 s t0 0.0 s N 1024
case3 from TimeSeries (2, 2, 1024) dt 0.00390625 s
case4 Quantity meta unit mV
error {'dt': <Quantity 0.00390625 s>, 'sample_rate': <Quantity 256. Hz>, 't0': <Quantity 0. s>} -> ValueError give only one of sample_rate or dt
error {'dt': <Quantity 0.00390625 s>, 't0': <Quantity 0. s>, 'epoch': <Quantity 0. s>} -> ValueError give only one of epoch or t0

参照・切り出し

• tsm[i, j] は TimeSeries を返す

• スライスは TimeSeriesMatrix を返す

• row/col ラベルでもアクセスできる

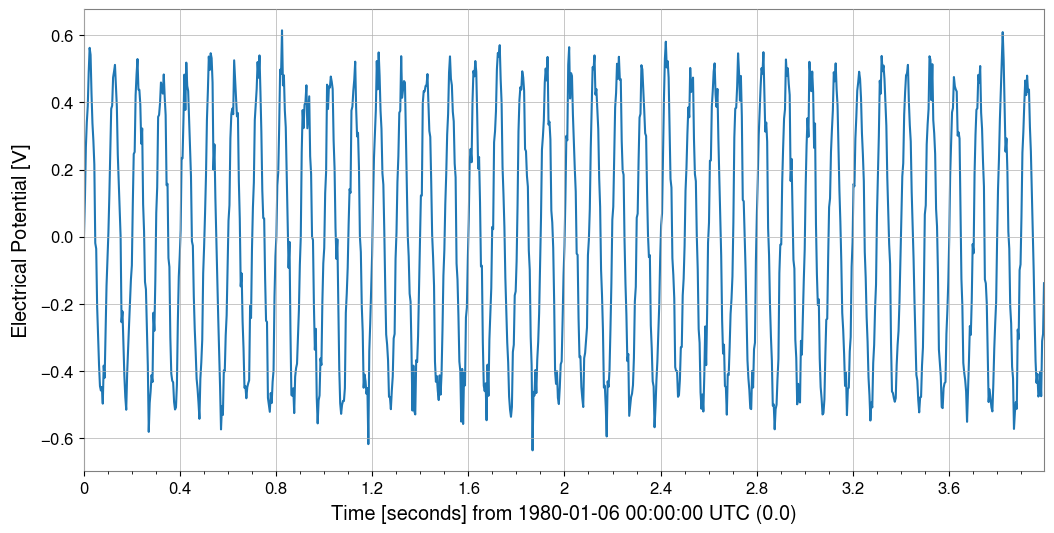

s00 = tsm[0, 0]
print("[0,0]", "type", type(s00), "dt", s00.dt, "t0", s00.t0, "unit", s00.unit)
print("[0,0]", "name", s00.name, "channel", s00.channel)

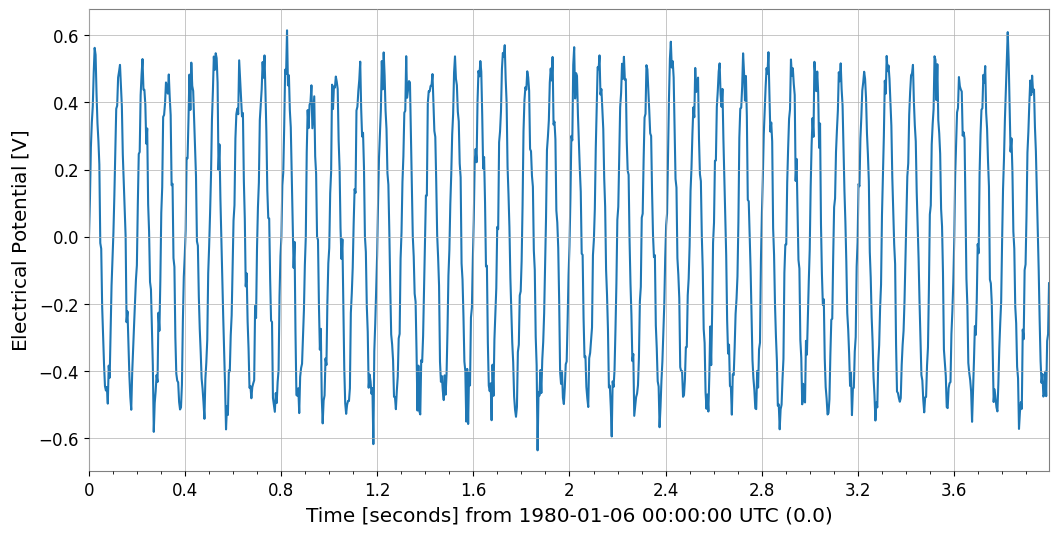

s00.plot(xscale="seconds")

s01 = tsm["r0", "c1"]
print("[r0,c1]", "name", s01.name, "channel", s01.channel)

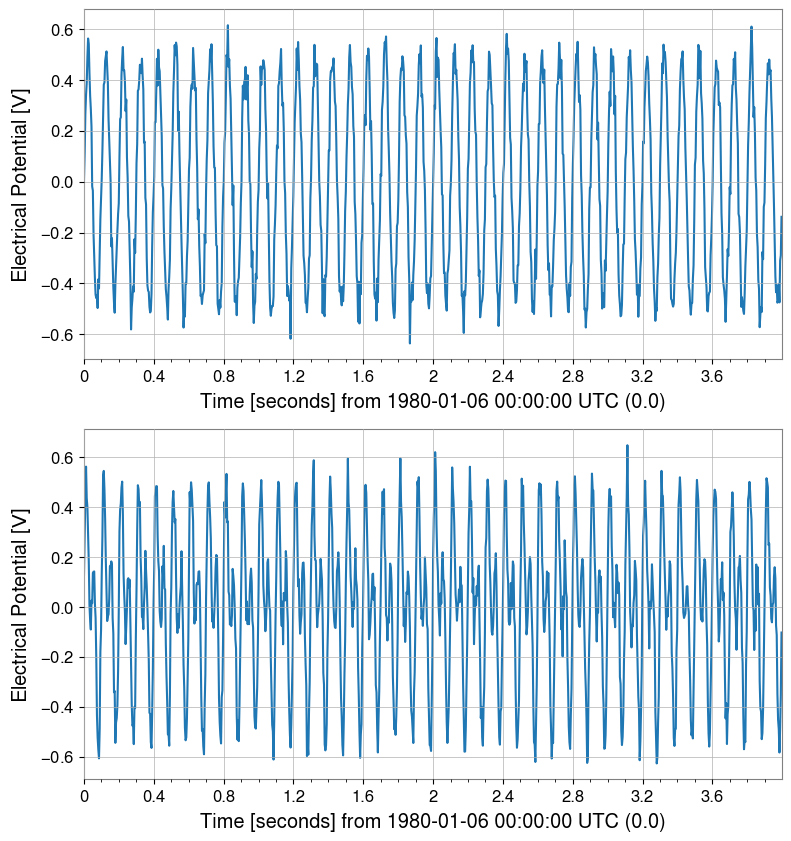

sub = tsm[:, 0]
print("tsm[:,0] ->", type(sub), sub.shape)

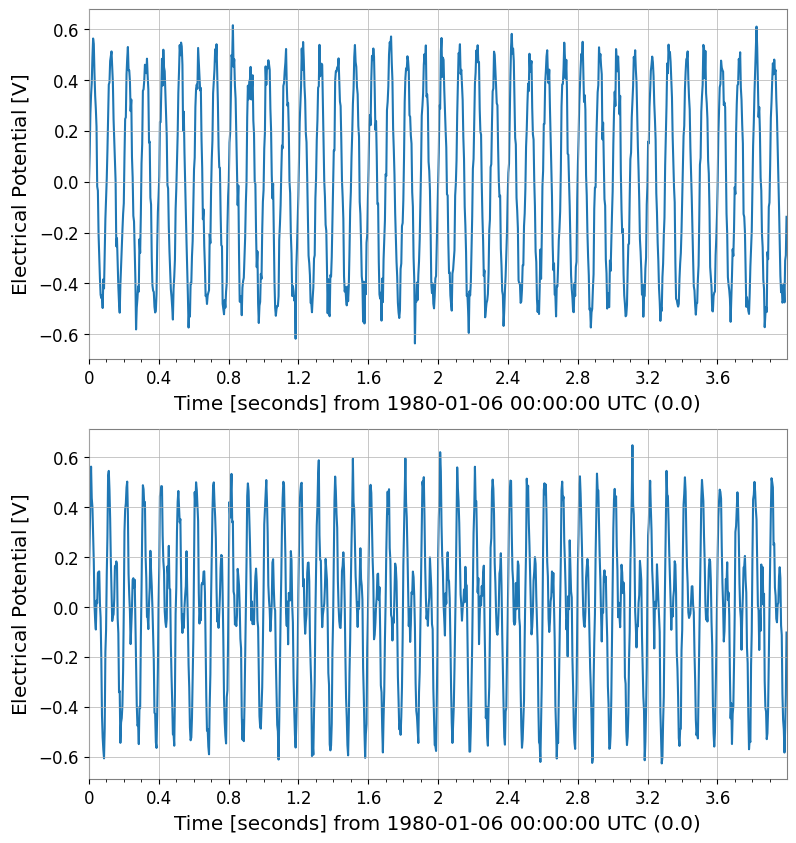

sub.plot(subplots=True, xscale="seconds");

[0,0] type <class 'gwexpy.timeseries.timeseries.TimeSeries'> dt 0.00390625 s t0 0.0 s unit V
[0,0] name ch00 channel X:A
[r0,c1] name ch01 channel X:B
tsm[:,0] -> <class 'gwexpy.timeseries.matrix.TimeSeriesMatrix'> (2, 1, 1024)

サンプル軸編集

• diff / pad は TimeSeriesMatrix を返す

• crop は現在 SeriesMatrix を返すので、view(TimeSeriesMatrix) で戻します（中身は同じ）

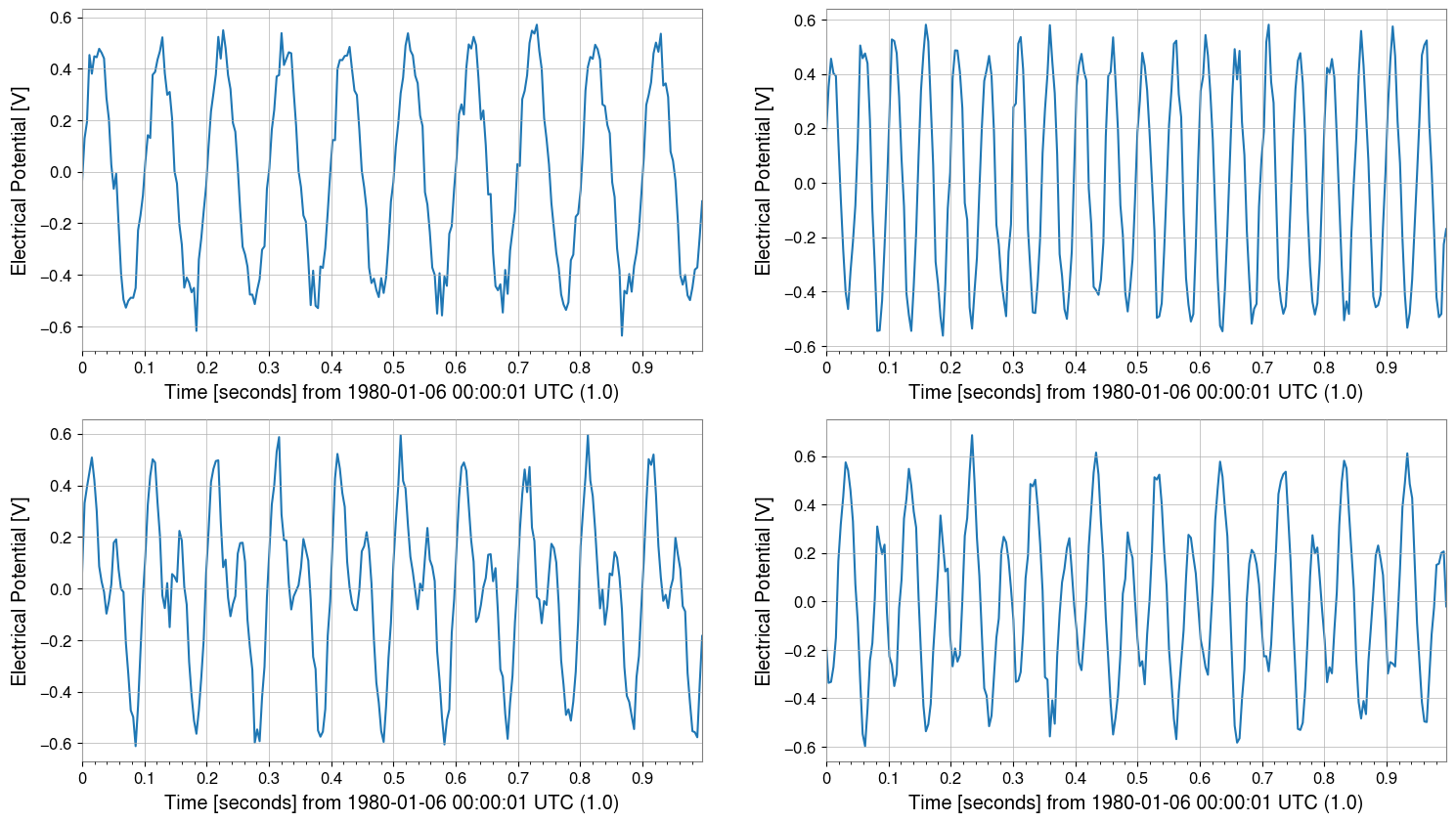

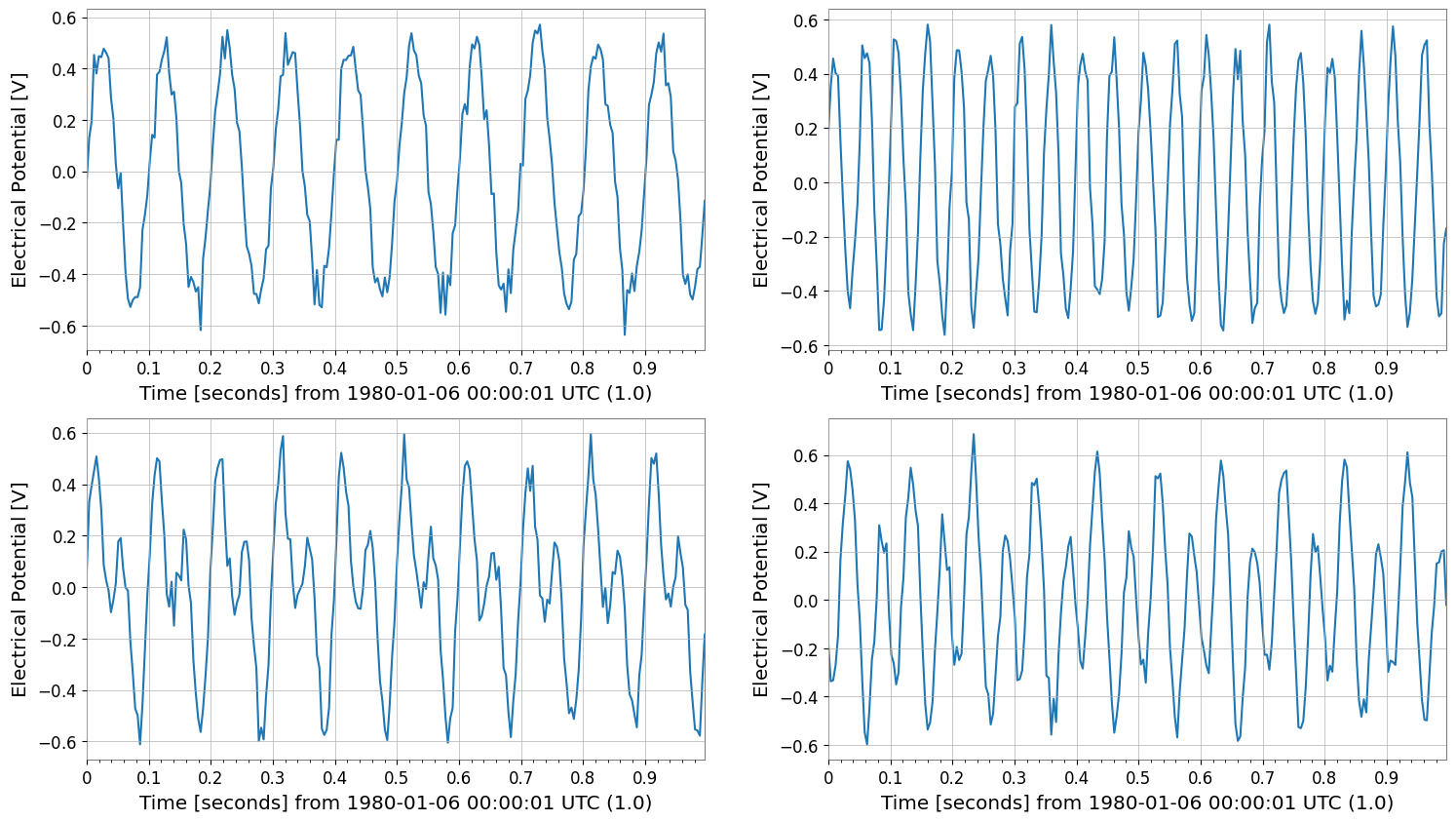

cropped = tsm.crop(start=1 * u.s, end=2 * u.s).view(TimeSeriesMatrix)
print("cropped", type(cropped), cropped.shape, "span", cropped.span)
cropped.plot(subplots=True, xscale="seconds")

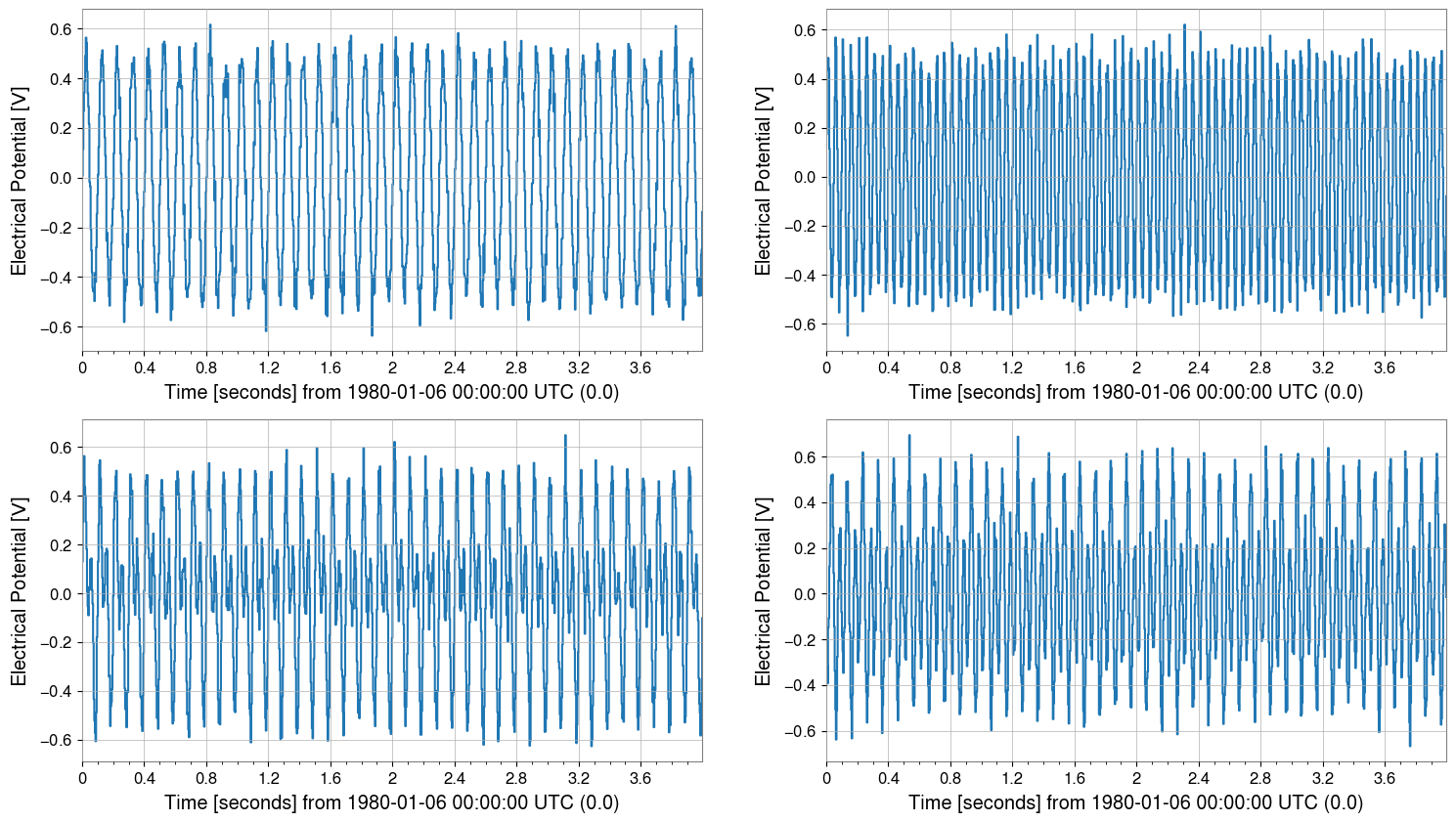

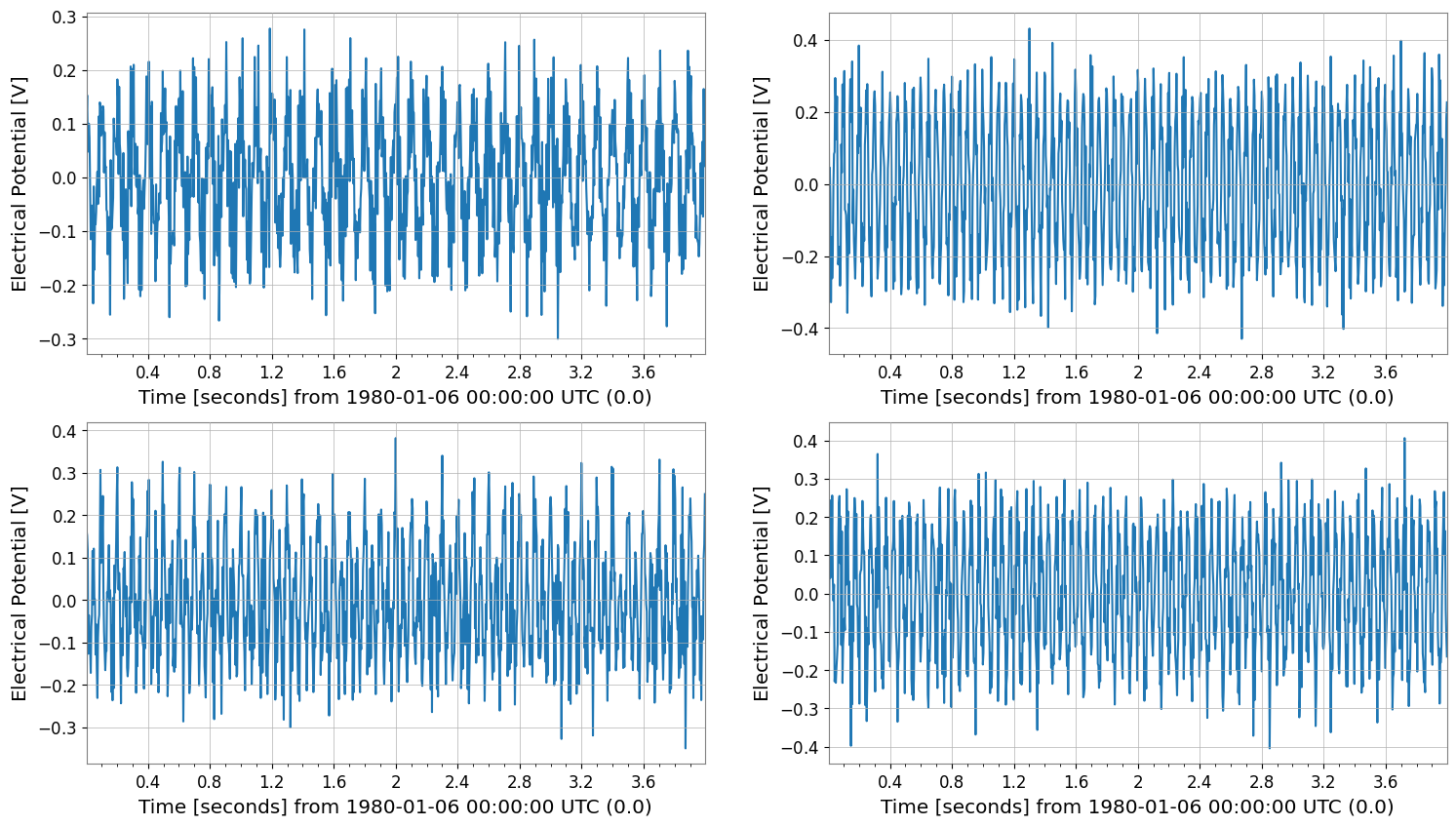

diffed = tsm.diff(n=1)
print("diffed", diffed.shape, "dt", diffed.dt)
diffed.plot(subplots=True, xscale="seconds")

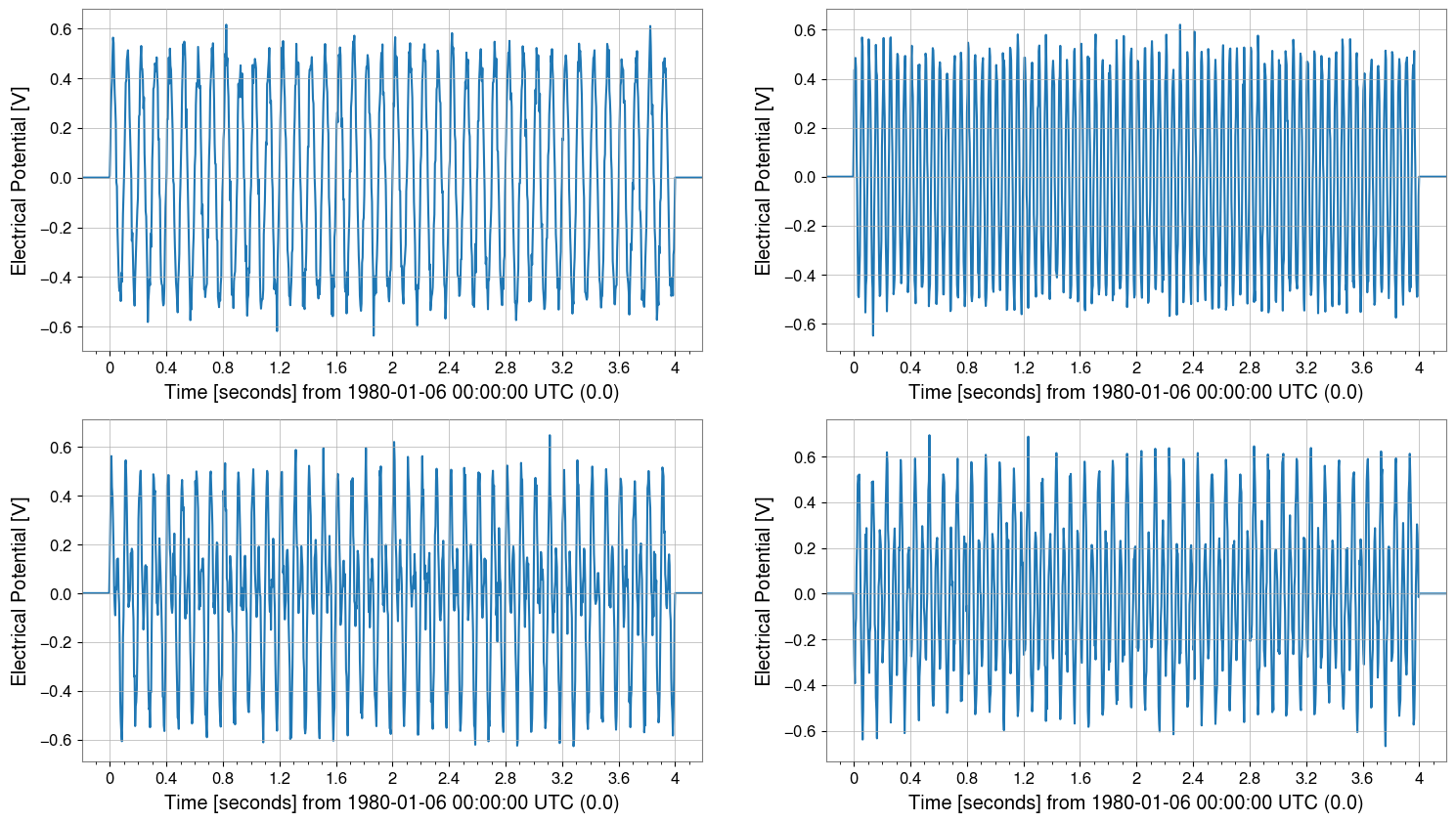

padded = tsm.pad(50)
print("padded", padded.shape, "t0", padded.t0)

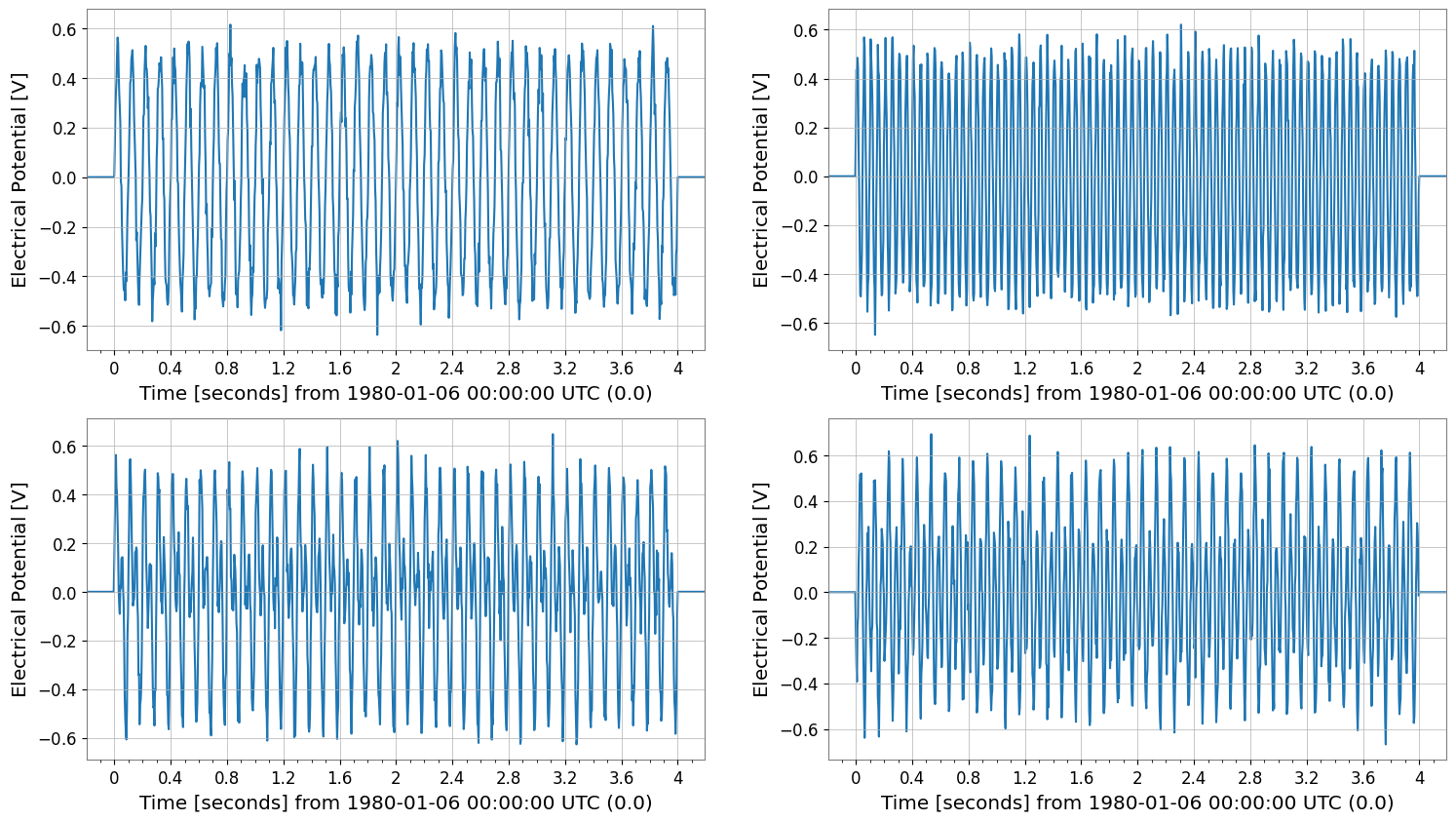

padded.plot(subplots=True, xscale="seconds");

cropped <class 'gwexpy.timeseries.matrix.TimeSeriesMatrix'> (2, 2, 256) span (<Quantity 1. s>, <Quantity 2. s>)
diffed (2, 2, 1023) dt 0.00390625 s
padded (2, 2, 1124) t0 -0.1953125 s

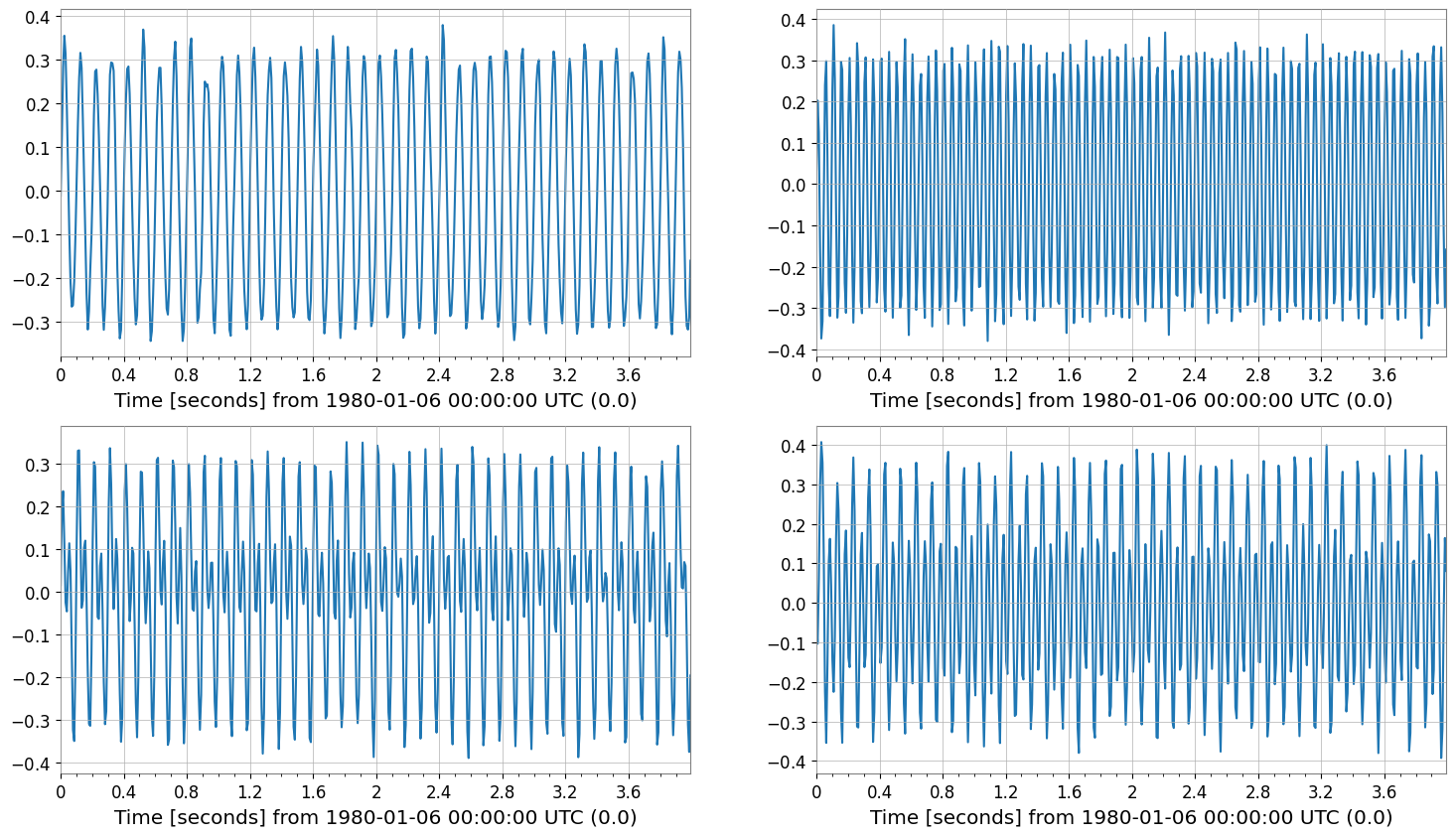

時間領域処理（TimeSeries メソッドの要素ごと適用）

TimeSeries のメソッド（detrend, bandpass, resample など）を行列要素ごとに適用します。

detr = tsm.detrend("constant")
bp = detr.bandpass(5, 40)
rs = bp.resample(128)

print("original", tsm.shape, "sample_rate", tsm.sample_rate)
print("bandpass", bp.shape, "sample_rate", bp.sample_rate)
print("resample", rs.shape, "sample_rate", rs.sample_rate)

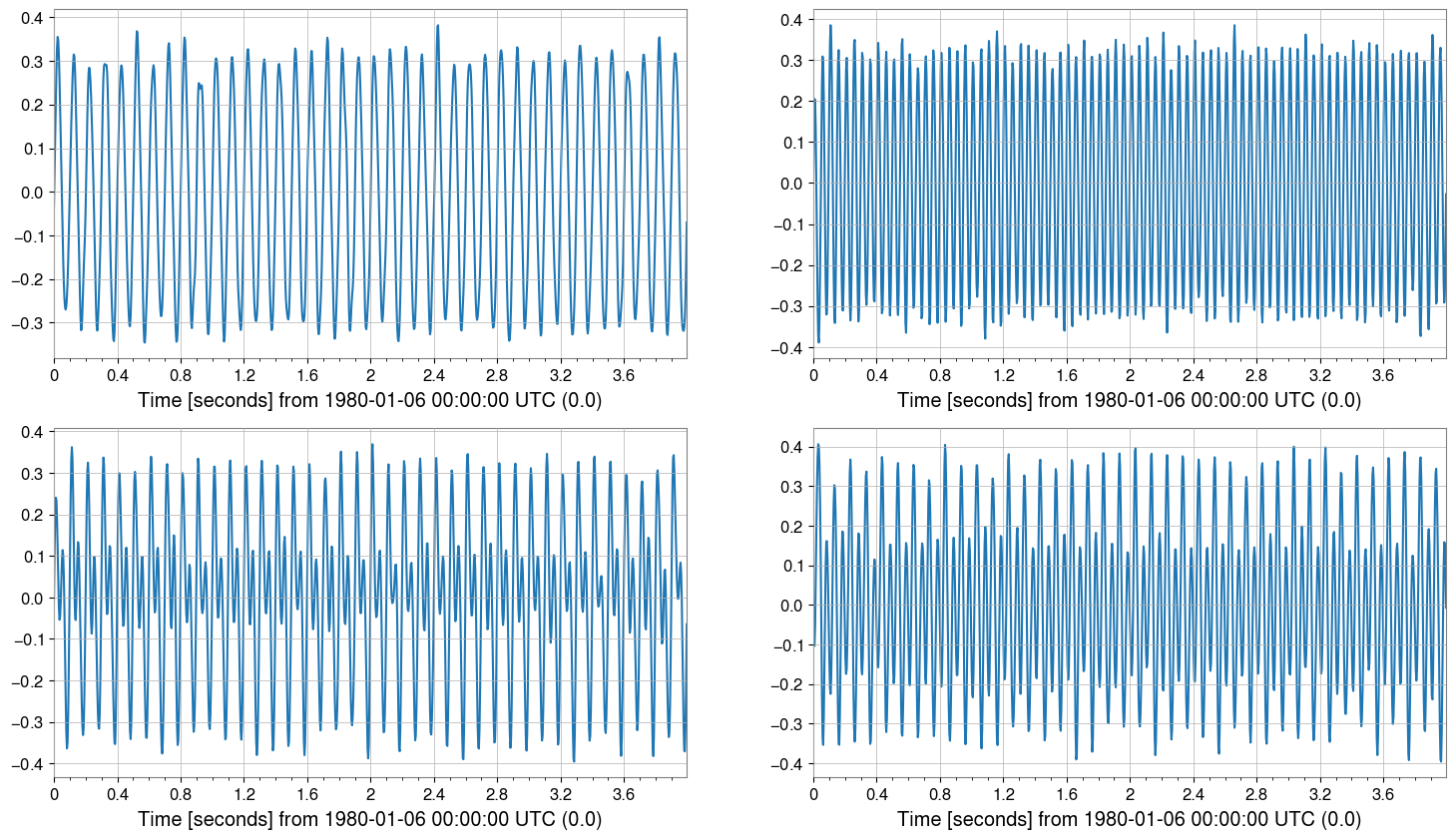

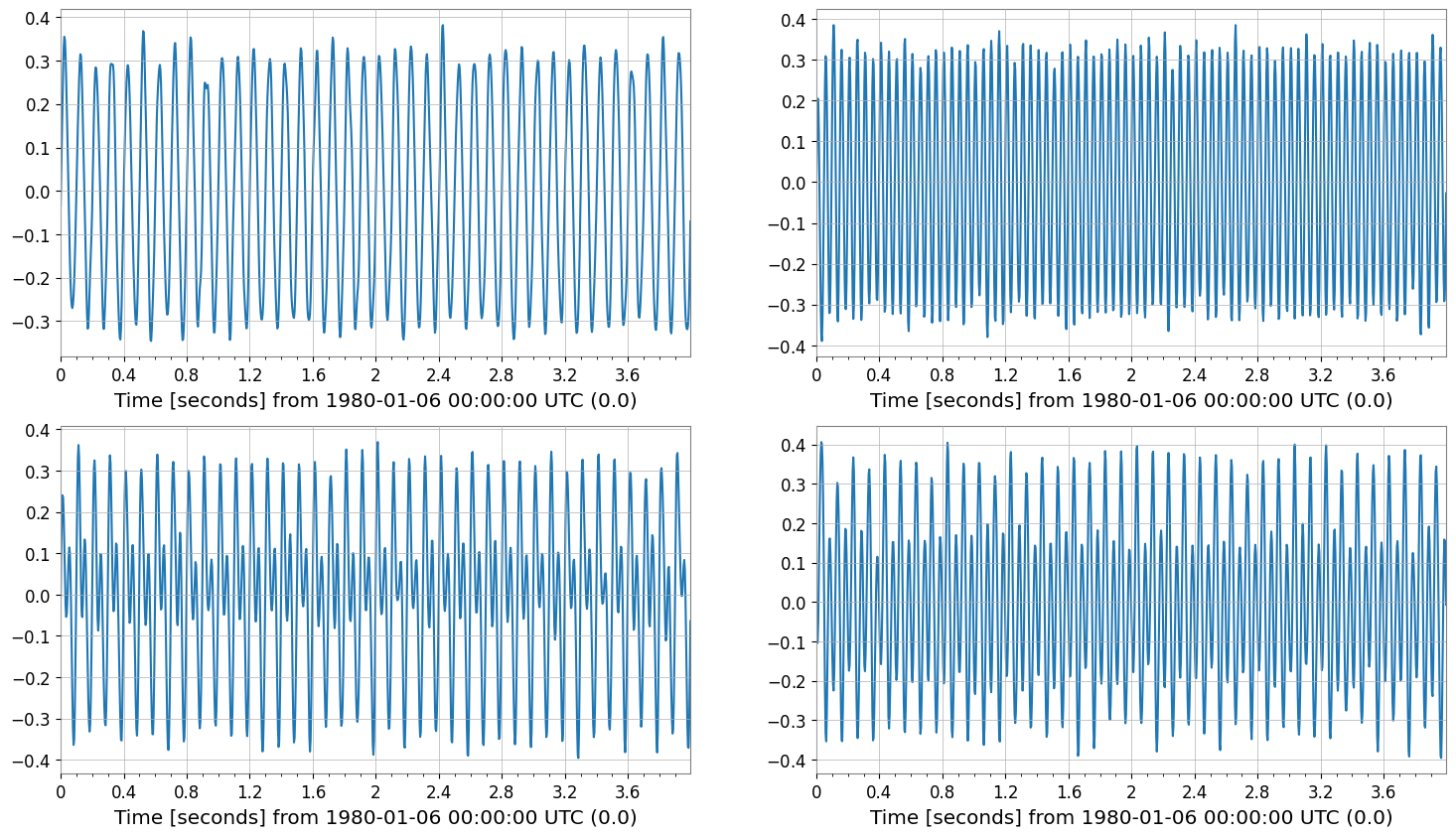

bp.plot(subplots=True, xscale="seconds")

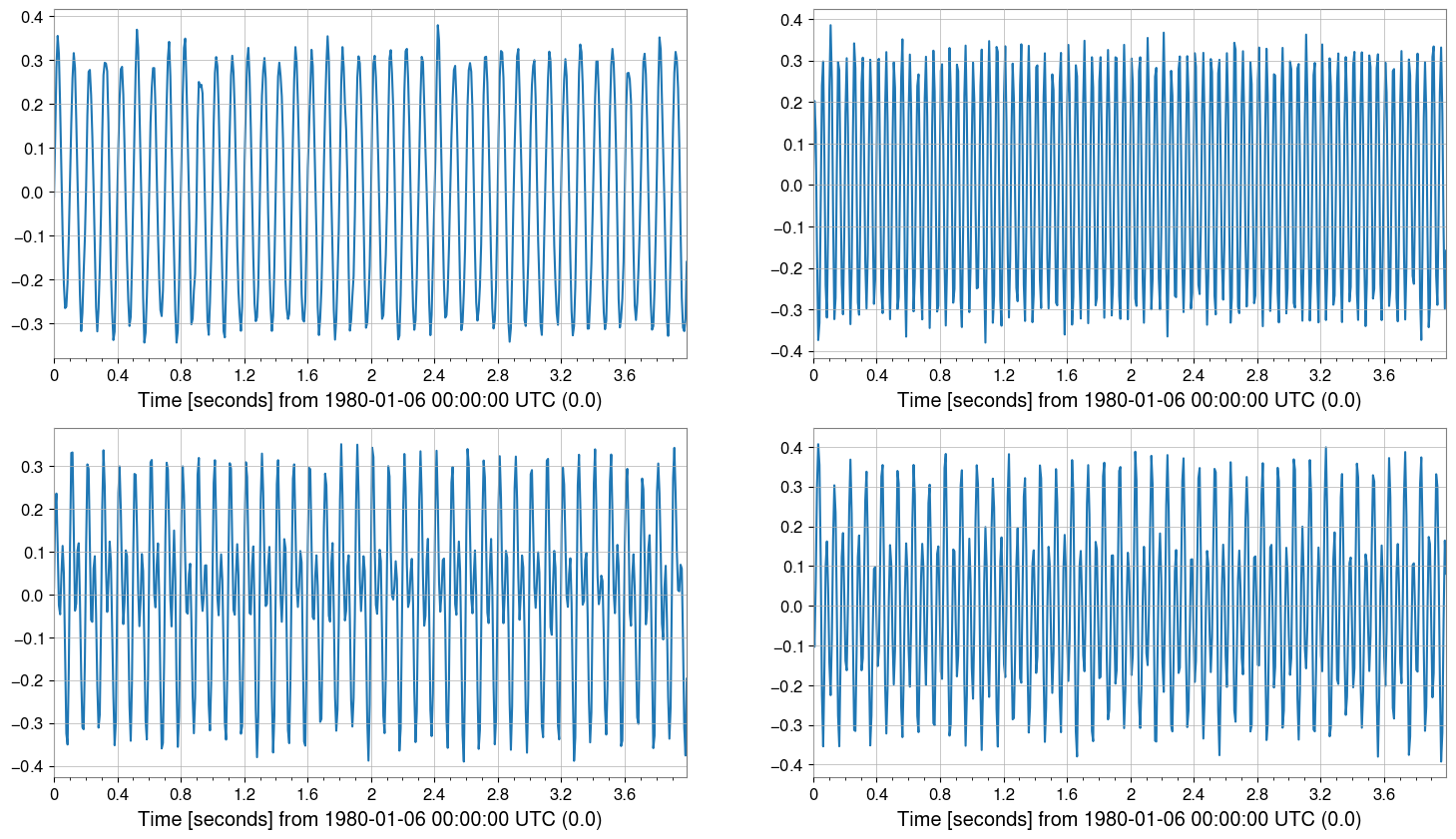

rs.plot(subplots=True, xscale="seconds");

original (2, 2, 1024) sample_rate 256.0 Hz
bandpass (2, 2, 1024) sample_rate 256.0 Hz
resample (2, 2, 512) sample_rate 128.0 Hz

欠損値処理 (Imputation)

Matrix内の欠損値 (NaN) を補完します。各チャンネルごとに適用されます。

# Data Create ( )
tsm_miss = tsm.copy()
# NaN do ( : tsm[0,0] time series)
tsm_miss[0, 0].value[50:60] = np.nan

print("Before impute (Has NaN):", np.isnan(tsm_miss[0, 0].value).any())

# ( )
tsm_imp = tsm_miss.impute(method="interpolate")
print("After impute (Has NaN):", np.isnan(tsm_imp[0, 0].value).any())

Before impute (Has NaN): False
After impute (Has NaN): False

前処理: 標準化と白色化

多変量解析の前処理として有用です。

# (Standardize): Mean0, minutes 1
tsm_std = tsm.standardize(method="zscore")

# Color (Whiten): Correlation(Covariance) Subtraction
# PCAusing Correlation
tsm_white, w_model = tsm_std.whiten_channels(return_model=True)

print("Standardized shape:", tsm_std.shape)
print("Whitened shape:", tsm_white.shape)

Standardized shape: (2, 2, 1024)
Whitened shape: (4, 1, 1024)

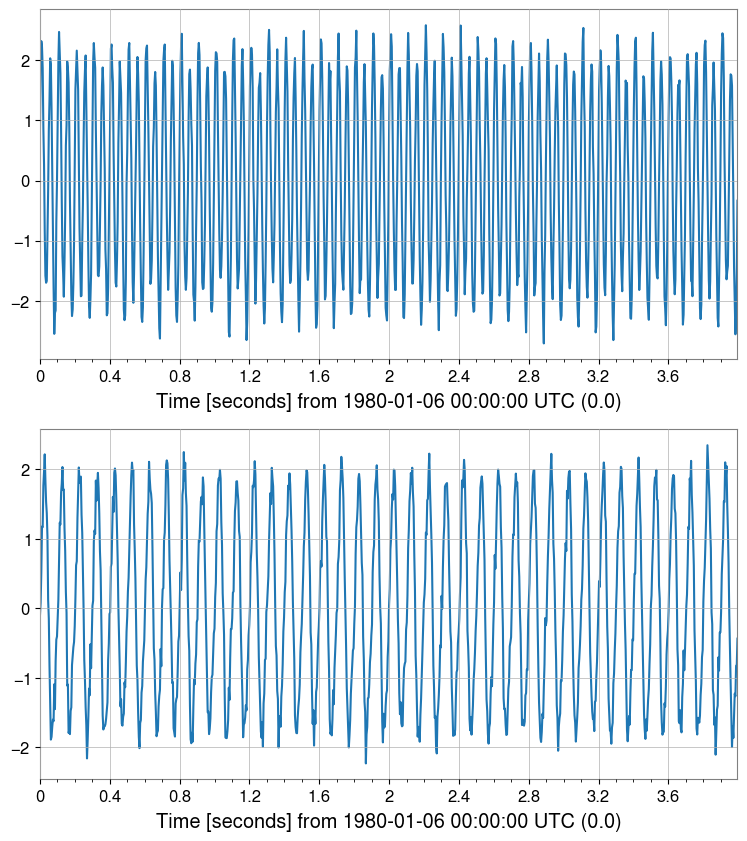

成分分解 (PCA / ICA)

効率的な次元圧縮や、信号源分離を行います。

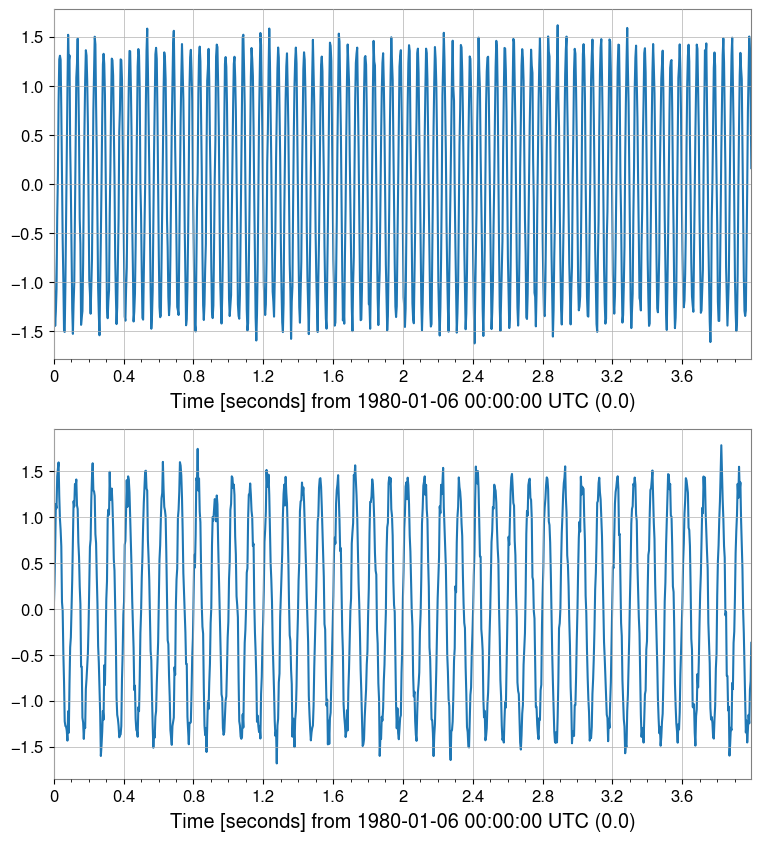

# minutesminutes (PCA)
# Dimension ( : 3 -> 2 minutes)
n_comp = min(2, tsm.shape[0])
pca_scores, pca_res = tsm_std.pca(n_components=n_comp, return_model=True)

print("PCA Scores shape:", pca_scores.shape)
print("Explained variance ratio:", pca_res.explained_variance_ratio)

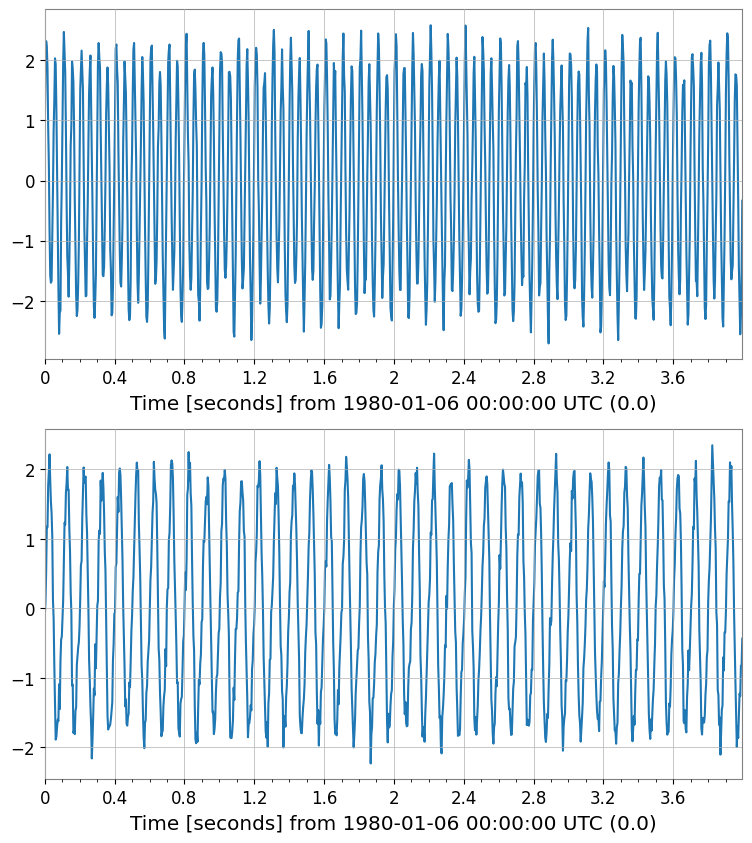

pca_scores.plot()
plt.show()
plt.close()

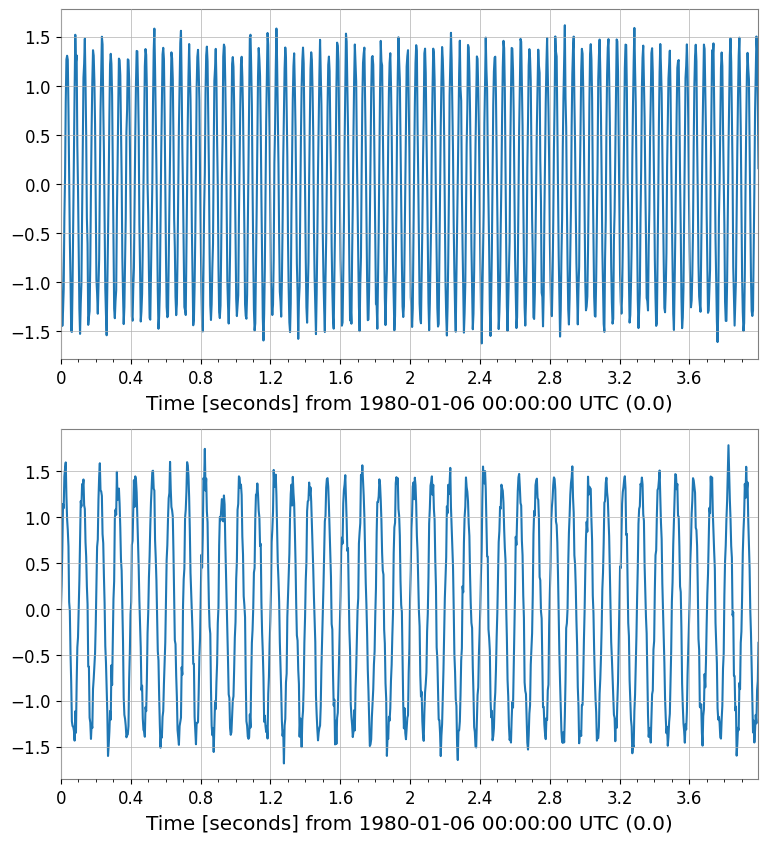

# minutesminutes (ICA)
# Signal minutes (Blind Source Separation)
ica_sources = tsm_std.ica(n_components=n_comp, random_state=42)
print("ICA Sources shape:", ica_sources.shape)
ica_sources.plot()
plt.show()
plt.close()

PCA Scores shape: (2, 1, 1024)
Explained variance ratio: [0.57128681 0.41742564]

ICA Sources shape: (2, 1, 1024)

相互運用性 (Interop) 入門

PyTorchなどの外部ライブラリへデータを渡すことができます。

try:
    # PyTorch Tensor Transform
    import torch

    _ = torch
    tensor = tsm.to_torch()
    print("Converted to PyTorch:", tensor.shape)
except ImportError:
    print("PyTorch not installed")

Converted to PyTorch: torch.Size([2, 2, 1024])

スペクトル解析（FFT / PSD / ASD）

fft/psd/asd は FrequencySeriesMatrix を返します。

fft = tsm.fft()
print("fft", type(fft), fft.shape, "df", fft.df, "f0", fft.f0)

psd = tsm.psd(fftlength=1, overlap=0.5)
asd = tsm.asd(fftlength=1, overlap=0.5)
print("psd", psd.shape, "unit", psd[0, 0].unit)
print("asd", asd.shape, "unit", asd[0, 0].unit)

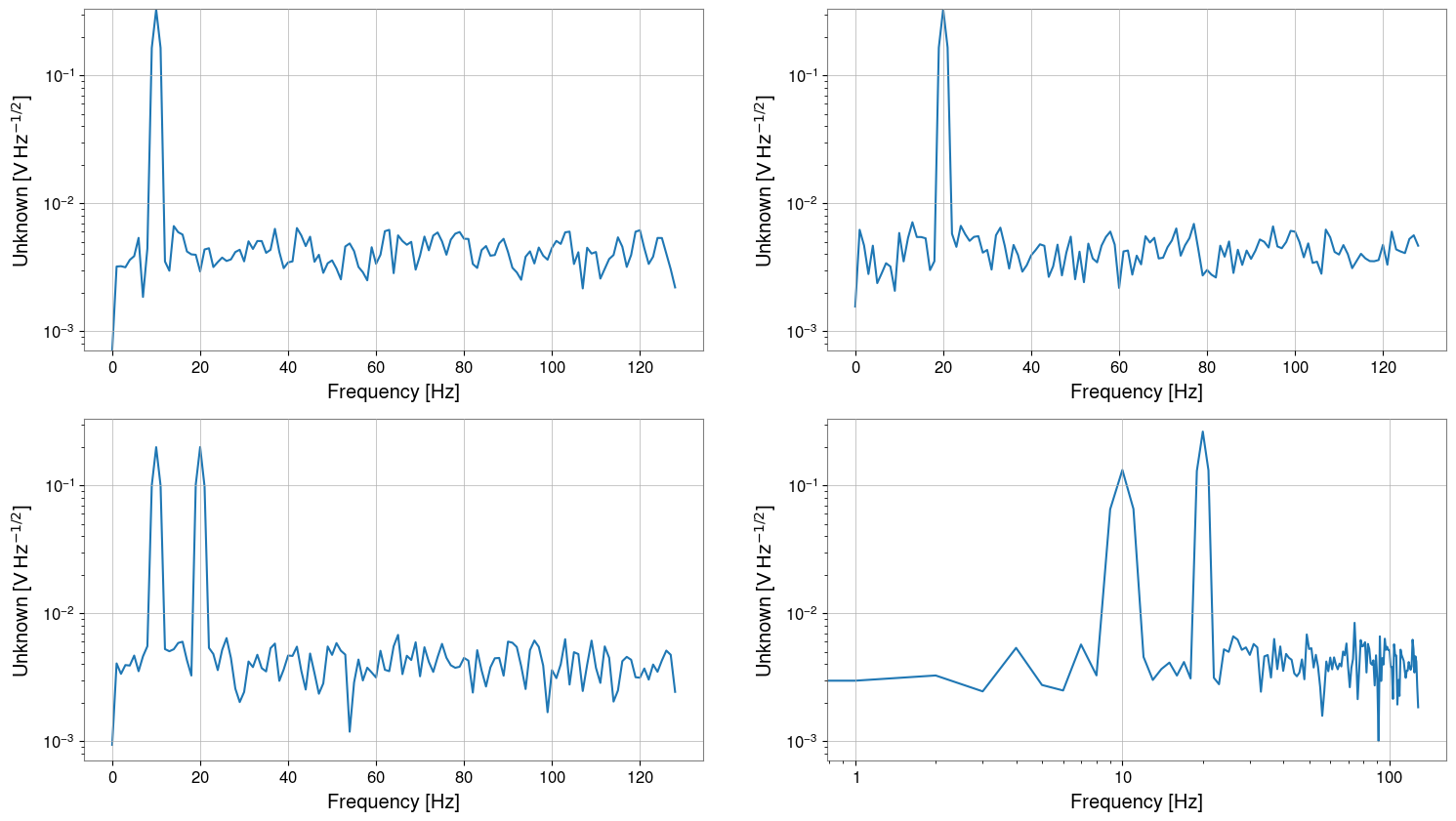

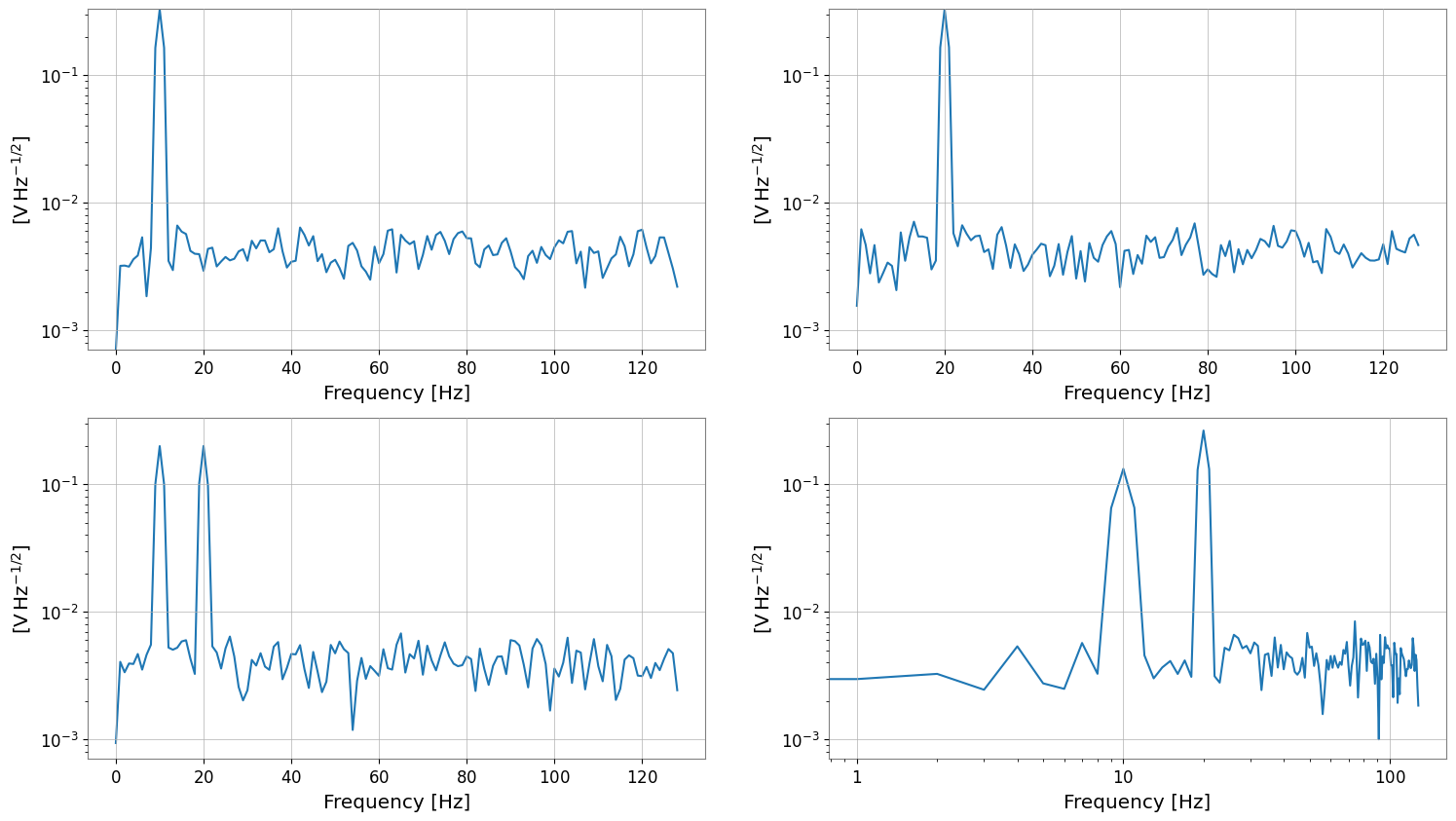

asd.plot(subplots=True)
plt.xscale("log")
plt.yscale("log")

fft <class 'gwexpy.frequencyseries.matrix.FrequencySeriesMatrix'> (2, 2, 513) df 0.25 Hz f0 0.0 Hz
psd (2, 2, 129) unit V2 / Hz
asd (2, 2, 129) unit V / Hz(1/2)

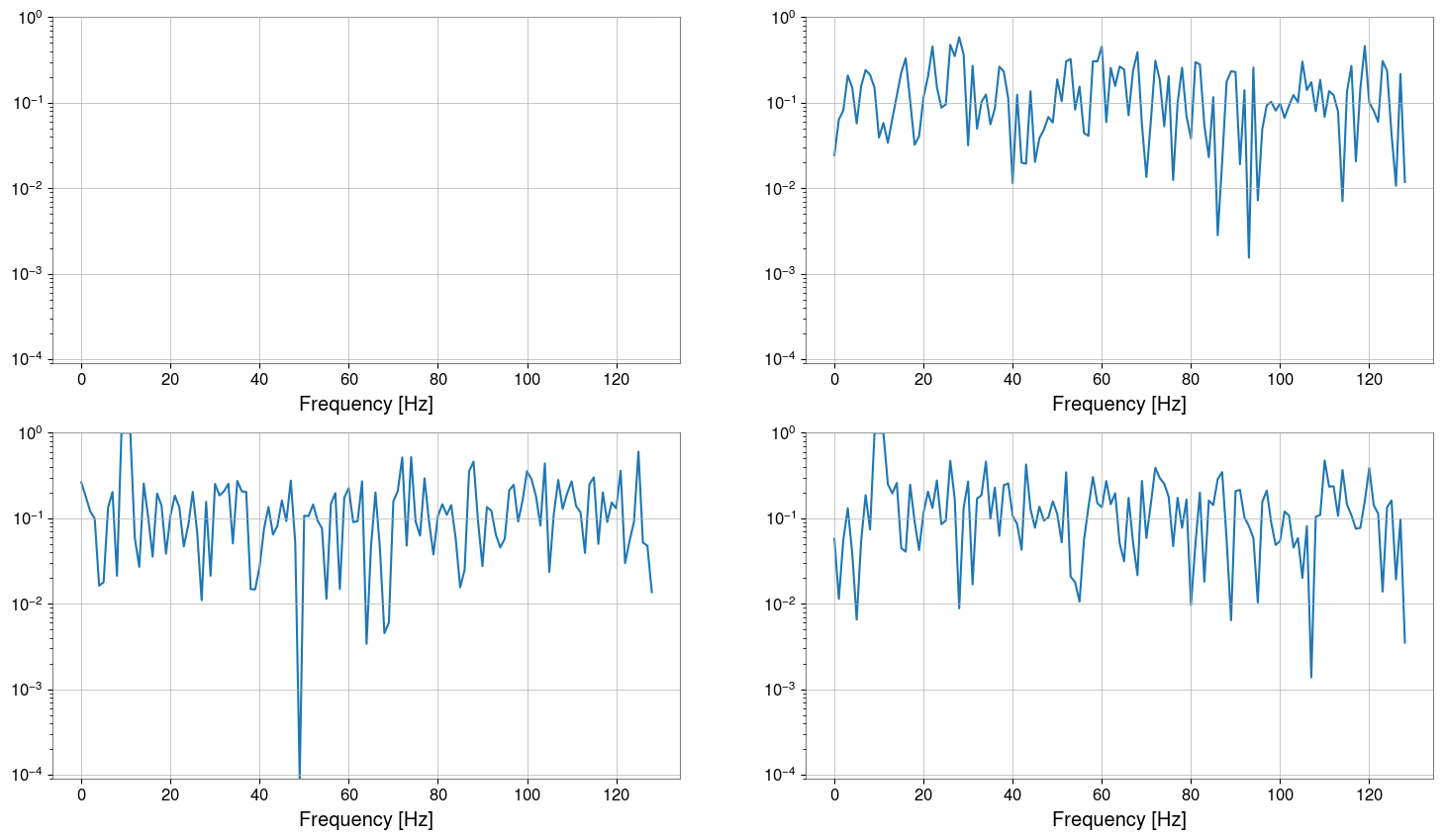

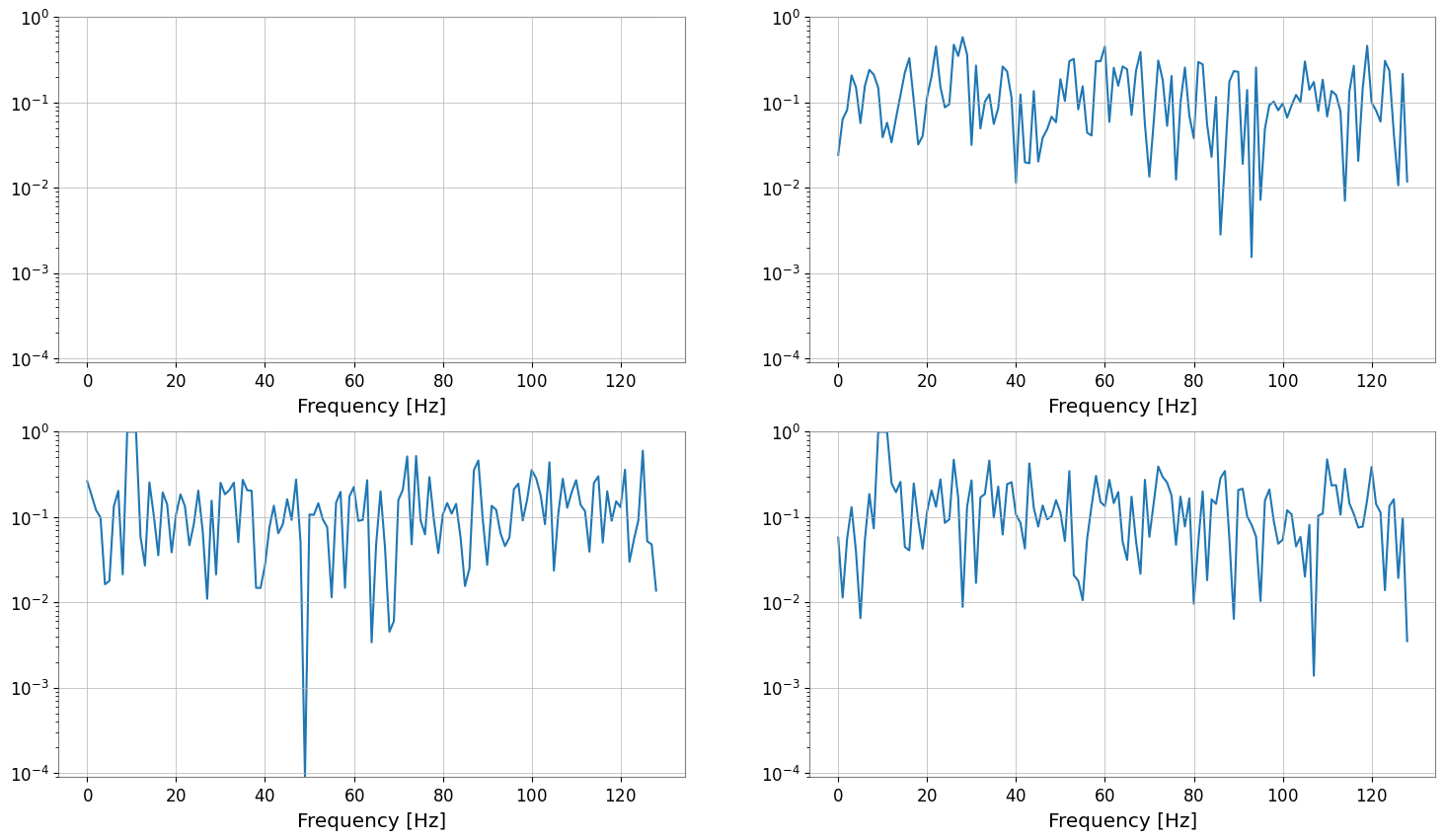

bivariate スペクトル解析（coherence 例）

TimeSeriesMatrix.coherence(other) は要素ごとに coherence を計算し、FrequencySeriesMatrix を返します。

• other に TimeSeries を渡すと「全要素 vs 同一参照」の比較になります

• other に TimeSeriesMatrix を渡す場合は shape (Nrow, Ncol) が一致している必要があります

ref = tsm[0, 0]
coh = tsm.coherence(ref, fftlength=1, overlap=0.5)
print("coherence", type(coh), coh.shape, "unit", coh[0, 0].unit)
coh.plot(subplots=True)

try:
    _ = tsm.coherence(tsm[:, :1], fftlength=1)
except Exception as e:
    print("shape mismatch ->", type(e).__name__, e)

coherence <class 'gwexpy.frequencyseries.matrix.FrequencySeriesMatrix'> (2, 2, 129) unit coherence
shape mismatch -> IndexError index 1 is out of bounds for axis 1 with size 1

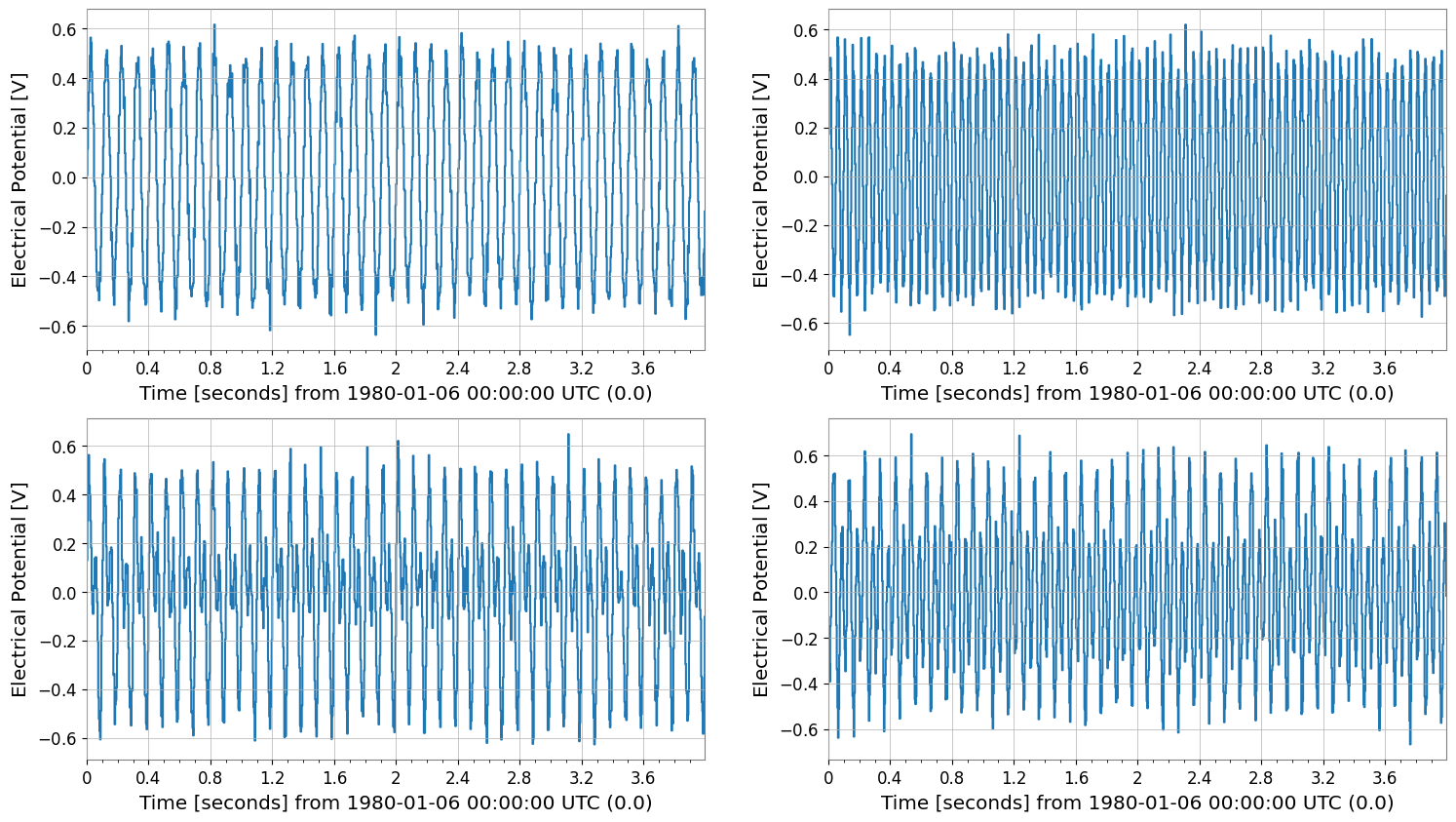

表示系: repr / plot / step

• repr: テキスト表示

• _repr_html_: ノートブックでは display(tsm) で表形式

• plot / step: クラスメソッドで直接描画

print("repr:\n", tsm)
display(tsm)

tsm.plot(subplots=True, xscale="seconds")
tsm.step(where="post", xscale="seconds");

repr:
 SeriesMatrix(shape=(2, 2, 1024),  name='demo')
  epoch   : 0.0 s
  x0      : 0.0 s
  dx      : 0.00390625 s
  xunit   : s
  samples : 1024

[ Row metadata ]
     name channel unit
key
r0   row0
r1   row1

[ Column metadata ]
     name channel unit
key
c0   col0
c1   col1

[ Elements metadata ]
  unit  name channel  row  col
0    V  ch00     X:A    0    0
1    V  ch01     X:B    0    1
2    V  ch10     Y:A    1    0
3    V  ch11     Y:B    1    1

SeriesMatrix: shape=(2, 2, 1024), name='demo'

• epoch: 0.0 s
• x0: 0.0 s, dx: 0.00390625 s, N_samples: 1024
• xunit: s

Row Metadata

	name	channel	unit
key
r0	row0
r1	row1

Column Metadata

	name	channel	unit
key
c0	col0
c1	col1

Element Metadata

	unit	name	channel	row	col
0	V	ch00	X:A	0	0
1	V	ch01	X:B	0	1
2	V	ch10	Y:A	1	0
3	V	ch11	Y:B	1	1

まとめ

• TimeSeriesMatrix は TimeSeries 互換の軸情報（dt/t0/times）と要素メタデータを保ったまま、行列として一括処理できる。

• 時間領域処理（detrend/bandpass/resample 等）やスペクトル解析（asd/psd/coherence 等）を、要素ごとにまとめて適用できる。

• まず tsm[i, j] で TimeSeries を取り出して挙動を確認し、慣れたら行列のまま処理するのが簡単。
