Case Study: Seismic Analysis with ObsPy#
This tutorial demonstrates how to read seismological data in MiniSEED / SAC / FDSN formats and analyze it using gwexpy, with seamless conversion between obspy and gwexpy objects.
Use cases in GW detector science#
Reading seismometer data from KAGRA, LIGO, or Virgo environment monitors
Seismic noise analysis and coupling to detector sensitivity
Cross-correlation of seismic channels with gravitational-wave data
Legacy migration note:
If your code used obspy.read() directly followed by manual numpy processing, replace it with TimeSeries.read(format='miniseed') and gwexpy’s high-level signal processing methods.
See the Interop / Conversion Guide and Interop API reference for the current public interop surface.
import matplotlib.pyplot as plt
import numpy as np
from astropy import units as u
from gwexpy.timeseries import TimeSeries
# ObsPy is an optional dependency
try:
import obspy
OBSPY_AVAILABLE = True
print(f"ObsPy version: {obspy.__version__}")
except ImportError:
OBSPY_AVAILABLE = False
print("ObsPy not installed. Install with: pip install obspy")
print("This tutorial will show the API but skip cells requiring obspy.")
ObsPy version: 1.5.1
1. Route 1: TimeSeries.read(format='miniseed')#
gwexpy’s I/O layer supports reading MiniSEED files directly, returning a TimeSeries object with correct units and time axis.
# --- Route 1: Read MiniSEED via gwexpy I/O ---
# Replace the path below with your actual MiniSEED file
#
# ts_seismic = TimeSeries.read(
# "path/to/seismic.mseed",
# format='miniseed',
# )
#
# Or read SAC format:
# ts_seismic = TimeSeries.read("path/to/seismic.sac", format='sac')
#
# For FDSN web service (requires network access):
# ts_seismic = TimeSeries.read(
# "IU.ANMO.00.BHZ",
# format='miniseed',
# start=1234567890,
# end=1234568090,
# )
print("Route 1: TimeSeries.read(format='miniseed') or format='sac'")
print("This returns a TimeSeries with GPS time axis, units, and channel name.")
Route 1: TimeSeries.read(format='miniseed') or format='sac'
This returns a TimeSeries with GPS time axis, units, and channel name.
2. Route 2: from_obspy_trace() – Convert from obspy objects#
If you already have an obspy.Trace or obspy.Stream, convert it to gwexpy with from_obspy_trace().
if OBSPY_AVAILABLE:
# Simulate obspy workflow
# Normally: st = obspy.read("seismic.mseed")
# Here we create a synthetic trace for demonstration
rng = np.random.default_rng(0)
fs_seis = 100.0 # 100 Hz seismometer
n_seis = 6000 # 60 seconds
t_seis = np.arange(n_seis) / fs_seis
# Simulate seismic noise + Rayleigh wave
seis_data = (
1e-7 * rng.normal(0, 1, n_seis) # broadband noise
+ 5e-7 * np.sin(2 * np.pi * 0.15 * t_seis) # 0.15 Hz microseism
+ 2e-7 * np.sin(2 * np.pi * 1.0 * t_seis) # 1 Hz noise
)
stats = obspy.core.Stats()
stats.network = "K1"
stats.station = "KAGRA"
stats.location = "00"
stats.channel = "BHZ"
stats.sampling_rate = fs_seis
stats.starttime = obspy.UTCDateTime("2023-01-01T00:00:00")
stats.npts = n_seis
tr = obspy.Trace(data=seis_data, header=stats)
print("obspy Trace:", tr)
# Convert to gwexpy TimeSeries
ts_seismic = TimeSeries.from_obspy_trace(tr, unit=u.m / u.s)
print("\nConverted to TimeSeries:")
print(f" t0 = {ts_seismic.t0:.3f}")
print(f" dt = {ts_seismic.dt}")
print(f" N = {len(ts_seismic.value)}")
print(f" unit = {ts_seismic.unit}")
print(f" name = {ts_seismic.name}")
else:
# Fallback: create synthetic data without obspy
rng = np.random.default_rng(0)
fs_seis = 100.0
n_seis = 6000
t_seis = np.arange(n_seis) / fs_seis
seis_data = (
1e-7 * rng.normal(0, 1, n_seis)
+ 5e-7 * np.sin(2 * np.pi * 0.15 * t_seis)
+ 2e-7 * np.sin(2 * np.pi * 1.0 * t_seis)
)
ts_seismic = TimeSeries(
seis_data,
dt=(1/fs_seis)*u.s,
t0=0*u.s,
unit=u.m/u.s,
name="K1:KAGRA.BHZ",
)
print("Created synthetic TimeSeries (no obspy)")
obspy Trace: K1.KAGRA.00.BHZ | 2023-01-01T00:00:00.000000Z - 2023-01-01T00:00:59.990000Z | 100.0 Hz, 6000 samples
Converted to TimeSeries:
t0 = 1356566418.000 s
dt = 0.01 s
N = 6000
unit = m / s
name = K1.KAGRA.00.BHZ
3. Signal Processing on Seismic Data#
Once converted to TimeSeries, all gwexpy signal processing methods are available.

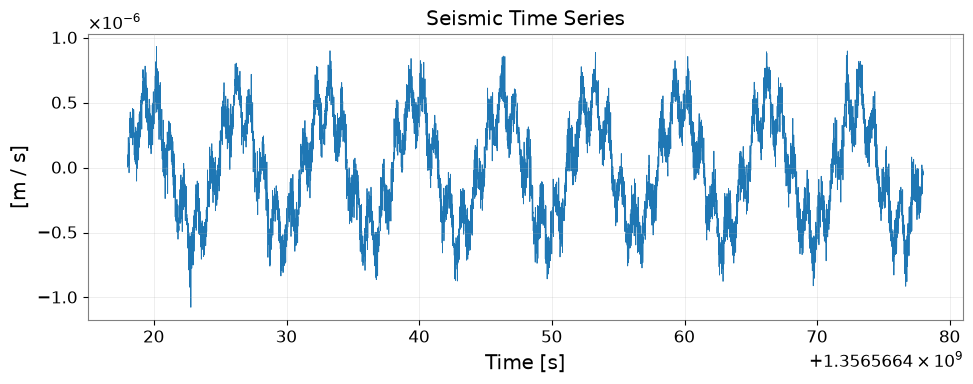

fig, ax = plt.subplots(figsize=(10, 4))
ax.plot(ts_seismic.times.value, ts_seismic.value, lw=0.6)
ax.set_xlabel("Time [s]")
ax.set_ylabel(f"[{ts_seismic.unit}]")
ax.set_title("Seismic Time Series")
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
# Bandpass filter to isolate seismic bands
ts_lf = ts_seismic.bandpass(0.05, 0.5) # 0.05–0.5 Hz: Earth's hum + microseism
ts_hf = ts_seismic.bandpass(1.0, 10.0) # 1–10 Hz: human-induced noise

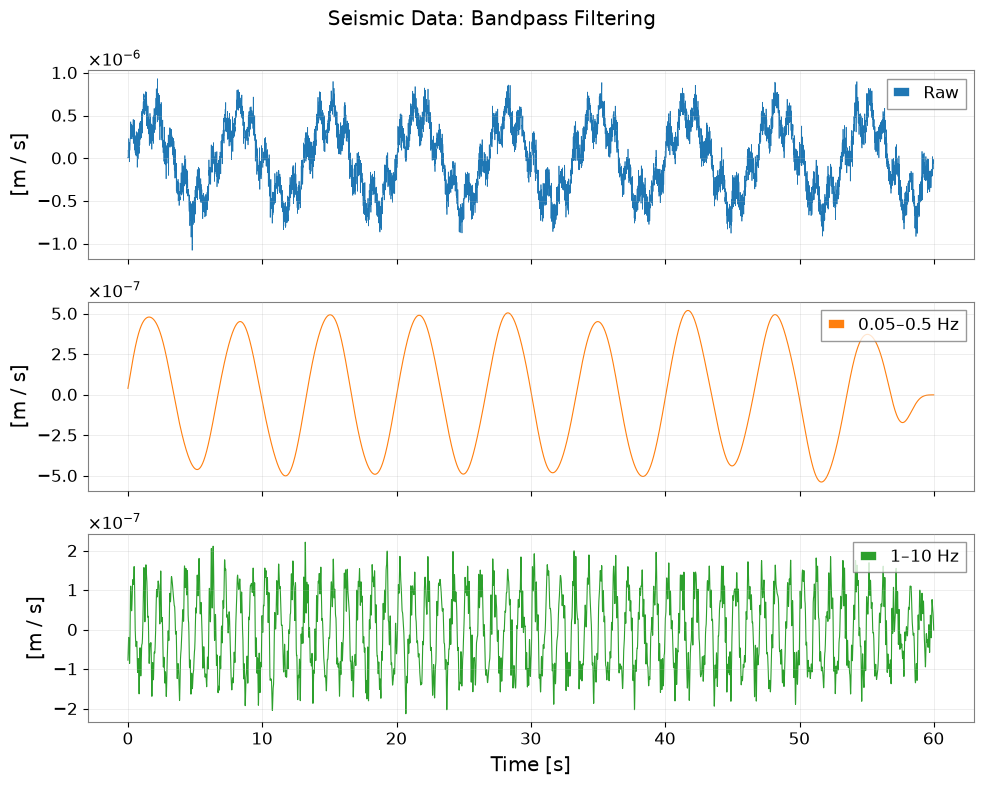

fig, axes = plt.subplots(3, 1, figsize=(10, 8), sharex=True)
axes[0].plot(np.arange(len(ts_seismic.value)) / fs_seis, ts_seismic.value, lw=0.5, label="Raw")
axes[1].plot(np.arange(len(ts_lf.value)) / fs_seis, ts_lf.value, lw=0.8, label="0.05–0.5 Hz", color="C1")
axes[2].plot(np.arange(len(ts_hf.value)) / fs_seis, ts_hf.value, lw=0.8, label="1–10 Hz", color="C2")
for ax in axes:
ax.set_ylabel(f"[{ts_seismic.unit}]")
ax.legend(loc="upper right")
ax.grid(True, alpha=0.3)
axes[2].set_xlabel("Time [s]")
fig.suptitle("Seismic Data: Bandpass Filtering")
plt.tight_layout()
# Amplitude Spectral Density

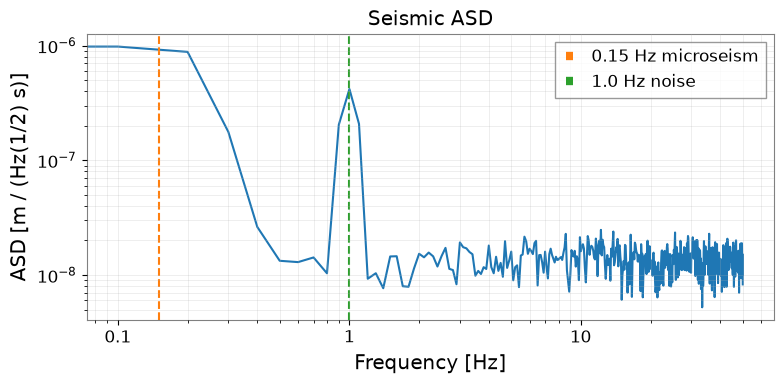

asd = ts_seismic.asd(fftlength=10.0, overlap=0.5)
fig, ax = plt.subplots(figsize=(8, 4))
ax.loglog(asd.frequencies.value, asd.value)
ax.set_xlabel("Frequency [Hz]")
ax.set_ylabel(f"ASD [{asd.unit}]")
ax.set_title("Seismic ASD")
ax.grid(True, which="both", alpha=0.3)
# Annotate microseism peak
ax.axvline(0.15, color="C1", linestyle="--", label="0.15 Hz microseism")
ax.axvline(1.0, color="C2", linestyle="--", label="1.0 Hz noise")
ax.legend()
plt.tight_layout()
# Spectrogram: Time-frequency map

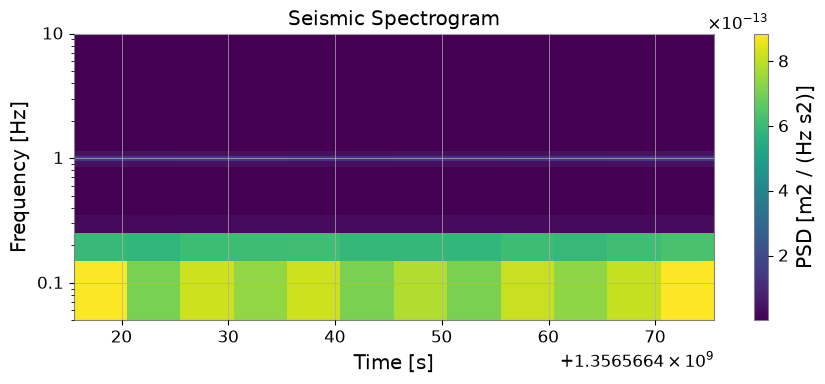

sg = ts_seismic.spectrogram2(fftlength=10.0, overlap=5.0)
fig, ax = plt.subplots(figsize=(9, 4))
mesh = ax.pcolormesh(sg.times.value, sg.frequencies.value, sg.value.T, shading="auto")
ax.set_yscale('log')
ax.set_ylim(0.05, 10)
ax.set_xlabel("Time [s]")
ax.set_ylabel("Frequency [Hz]")
ax.set_title("Seismic Spectrogram")
plt.colorbar(mesh, ax=ax, label=f"PSD [{getattr(sg, 'unit', '')}]")
plt.tight_layout()
plt.show()
4. Convert Back to obspy#
After gwexpy processing, convert the result back to obspy for further seismological analysis (e.g., instrument response removal, FDSN upload).
import warnings
if OBSPY_AVAILABLE:
# Convert processed TimeSeries back to obspy Trace
tr_filtered = ts_lf.to_obspy_trace()
print("Converted back to obspy Trace:", tr_filtered)
# Or use the generic to_obspy dispatcher
from gwexpy.interop import to_obspy
tr_generic = to_obspy(ts_lf)
print("via to_obspy():", tr_generic)
else:
print("obspy not available – skipping round-trip conversion")
Converted back to obspy Trace: .K1.KAGRA.00.BHZ.. | 2023-01-01T00:00:00.000000Z - 2023-01-01T00:00:59.990000Z | 100.0 Hz, 6000 samples
via to_obspy(): .K1.KAGRA.00.BHZ.. | 2023-01-01T00:00:00.000000Z - 2023-01-01T00:00:59.990000Z | 100.0 Hz, 6000 samples
5. Multi-channel Seismic Analysis#
When you have multiple seismic channels (3-component seismometer: X, Y, Z), use TimeSeriesMatrix for batch processing.
from gwexpy.timeseries import TimeSeriesMatrix
rng2 = np.random.default_rng(1)
# Three-component seismometer
components = ['BHX', 'BHY', 'BHZ']
data_3c = np.stack([
seis_data + 1e-8 * rng2.normal(0, 1, n_seis),
seis_data * 0.8 + 1e-8 * rng2.normal(0, 1, n_seis),
seis_data * 1.2 + 1e-8 * rng2.normal(0, 1, n_seis),
], axis=0)[:, np.newaxis, :] # (3, 1, n)
tsm_3c = TimeSeriesMatrix(
data_3c,
dt=(1/fs_seis)*u.s,
t0=0*u.s,
units=np.full((3, 1), u.m/u.s),
)
tsm_3c.channel_names = components
# ASD for all 3 components at once
asd_3c = tsm_3c.asd(fftlength=10.0, overlap=0.5)

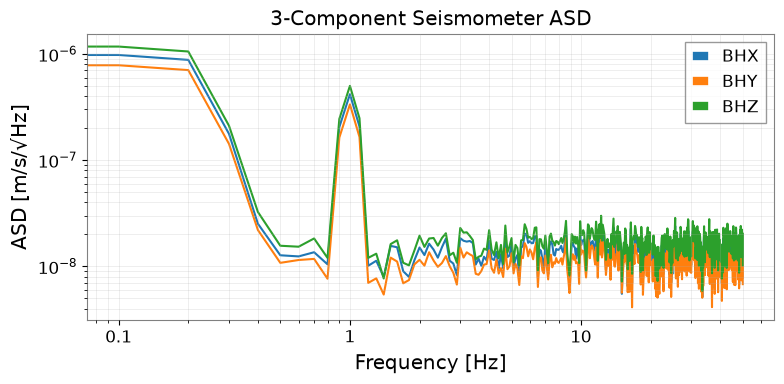

fig, ax = plt.subplots(figsize=(8, 4))
for i, comp in enumerate(components):
ax.loglog(asd_3c[i, 0].frequencies.value, asd_3c[i, 0].value, label=comp)
ax.set_xlabel("Frequency [Hz]")
ax.set_ylabel("ASD [m/s/√Hz]")
ax.set_title("3-Component Seismometer ASD")
ax.legend()
ax.grid(True, which="both", alpha=0.3)
plt.tight_layout()
6. Migration Guide: obspy → gwexpy#
Before (obspy + numpy):
import obspy
from scipy import signal
import numpy as np
st = obspy.read("seismic.mseed")
tr = st[0]
# Manual bandpass
tr_bp = tr.copy().filter('bandpass', freqmin=0.1, freqmax=1.0)
# Manual ASD with scipy
f, psd = signal.welch(tr.data, fs=tr.stats.sampling_rate, nperseg=1024)
asd = np.sqrt(psd)
# Manual spectrogram
f, t, Sxx = signal.spectrogram(tr.data, fs=tr.stats.sampling_rate)
After (gwexpy):
from gwexpy.timeseries import TimeSeries
ts = TimeSeries.read("seismic.mseed", format='miniseed')
# Or: ts = TimeSeries.from_obspy_trace(obspy.read("seismic.mseed")[0])
ts_bp = ts.bandpass(0.1, 1.0)
asd = ts.asd(fftlength=10.0, overlap=0.5) # FrequencySeries with units
sg = ts.spectrogram2(fftlength=10.0, overlap=5.0) # Spectrogram with GPS time axis
asd.plot() # Ready to plot with correct units and axis labels
Summary#
Task |
gwexpy API |
|---|---|
Read MiniSEED file |
|
Read SAC file |
|
Convert from obspy Trace |
|
Convert to obspy Trace |
|
Bandpass filter |
|
ASD |
|
Spectrogram |
|
Multi-channel |
|
See also:
