Non-Gaussian Noise Analysis: Rayleigh and Gaussian-Chi

This tutorial demonstrates the implementation of a comprehensive non-Gaussian noise analysis toolkit in GWexpy, based on research by Yamamura (2024) and Yamamoto (2015-2016).

Contents

1. Noise Simulation: Generating non-stationary and scattered light noise.

2. Rayleigh Statistics: Testing deviations from Rayleigh distribution.

3. GauCh (Modified KS Test): Advanced non-Gaussianity detection.

4. Student-t Indicator: Measuring distribution tail thickness.

5. Data Quality Flags: Generating veto segments automatically.

6. Evaluation & Visualization: ROC curves and composite dashboards.

import warnings


import matplotlib.pyplot as plt

from gwexpy.noise import scatter_light_noise, transient_gaussian_noise
from gwexpy.plot.gauch_dashboard import plot_gauch_dashboard
from gwexpy.statistics import to_segments

1. Noise Simulation

We simulate two types of non-Gaussian noise models used in KAGRA characterization.

• Model I: Transient Gaussian noise (glitches).

• Model II: Scattered light noise (stationary non-Gaussianity).

duration = 32.0
fs = 1024.0

# Model I: Glitch injection
ts_glitch = transient_gaussian_noise(duration, fs, A1=20.0, name='Glitchy Data')

# Model II: Scattered light
ts_scatter = scatter_light_noise(duration, fs, A2=1e-12, name='Scattered Light')

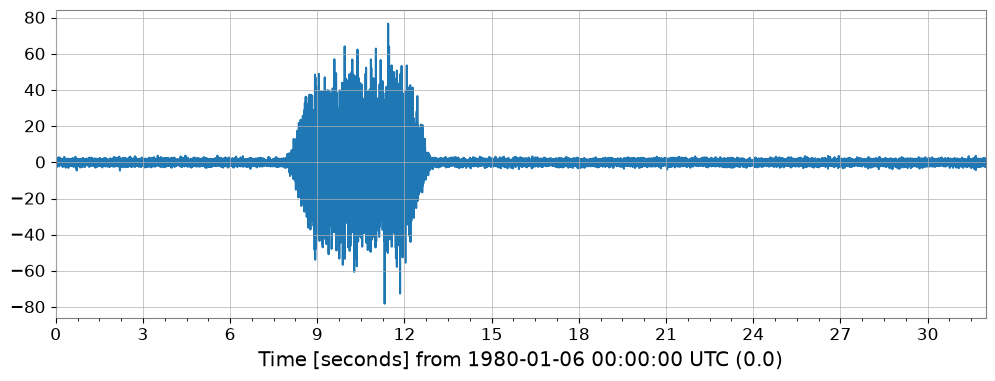

ts_glitch.plot()

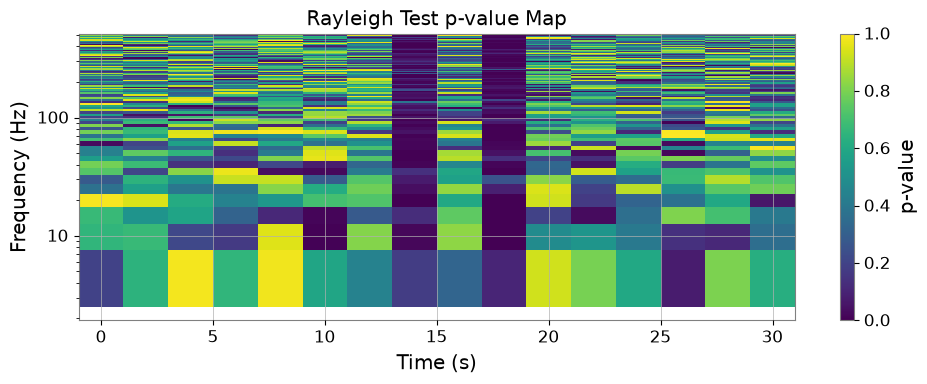

2. Rayleigh Spectrogram

The Rayleigh statistic \(R\) measures the consistency of the ASD distribution with a Rayleigh distribution. We use the rayleigh_test method to get a p-value map.

Changed in v0.1.12 (#506). rayleigh_test now simulates its null distribution from exponential power samples instead of Rayleigh amplitude samples, and derives the number of periodogram segments from fftlength/stride/overlap rather than accepting a fixed n_samples. The fftlength/stride below were adjusted so that the 20 segments per column this cell always claimed are actually produced – the previous settings supplied only 2. The DC and Nyquist bins are reported as NaN because their power follows chi2_1, not an exponential. p-values from earlier versions are not comparable with these.

v0.1.12 での変更 (#506)。 rayleigh_test の帰無分布は、Rayleigh 振幅標本ではなく指数分布のパワー標本から生成されるようになりました。 ピリオドグラムのセグメント数も、固定の n_samples ではなく fftlength/stride/overlap から導出されます。 下のセルが従来主張していた「1 列あたり 20 セグメント」が実際に得られるよう fftlength/stride を調整しました（従来の設定では 2 セグメントしか ありませんでした）。DC と Nyquist ビンのパワーは指数分布ではなく chi2_1 に 従うため NaN として報告されます。以前のバージョンの p 値とは比較できません。

rs_p = ts_glitch.rayleigh_test(fftlength=0.2, stride=2.0)
fig, ax = plt.subplots(figsize=(10, 4))
mesh = ax.pcolormesh(rs_p.times.value, rs_p.frequencies.value, rs_p.value.T, shading='auto')
ax.set_yscale('log')
ax.set_xlabel('Time (s)')
ax.set_ylabel('Frequency (Hz)')

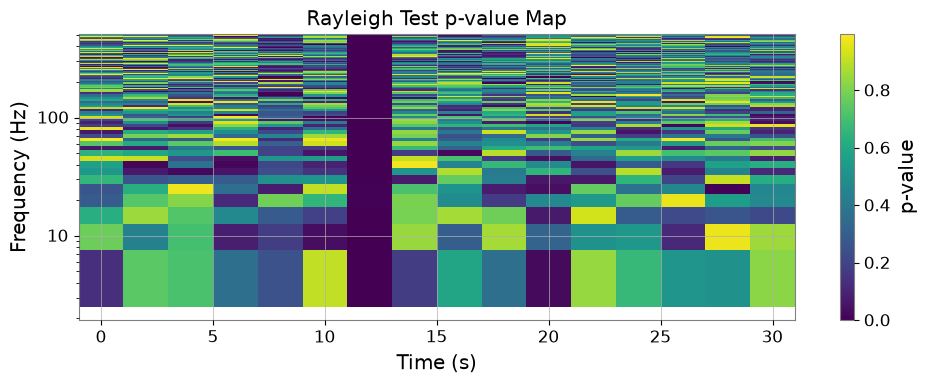

ax.set_title('Rayleigh Test p-value Map')
plt.colorbar(mappable=mesh, ax=ax, label='p-value')
plt.tight_layout()

/home/runner/work/gwexpy/gwexpy/gwexpy/timeseries/_statistics.py:489: RuntimeWarning: rayleigh_pvalue: DC and Nyquist bin(s) set to NaN p-value (excluded from veto) because their power follows chi2_1, not the Exp(1) used for the null distribution
  return rayleigh_pvalue(rs, n_samples=n_samples, nfft=nfft, **kwargs)

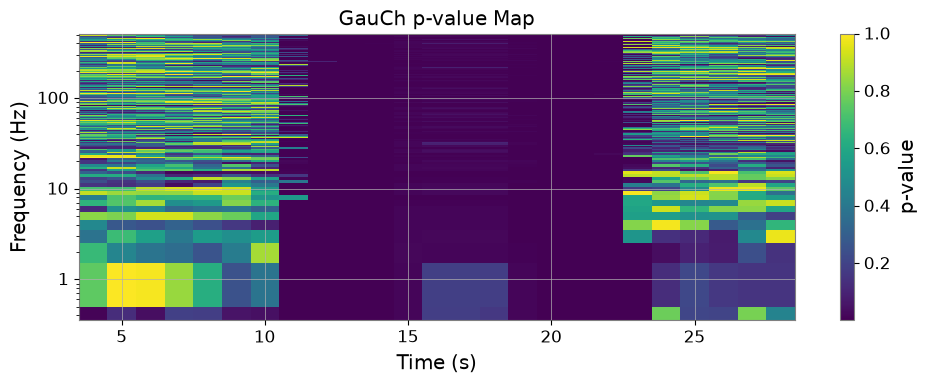

3. GauCh (Modified KS Test)

GauCh is a more sensitive test for non-Gaussianity using a modified Kolmogorov-Smirnov test.

gauch_res = ts_glitch.gauch(fftlength=1.0, window=8)
fig, ax = plt.subplots(figsize=(10, 4))
mesh = ax.pcolormesh(gauch_res.pvalue_map.times.value, gauch_res.pvalue_map.frequencies.value, gauch_res.pvalue_map.value.T, shading='auto')
ax.set_yscale('log')
ax.set_xlabel('Time (s)')
ax.set_ylabel('Frequency (Hz)')

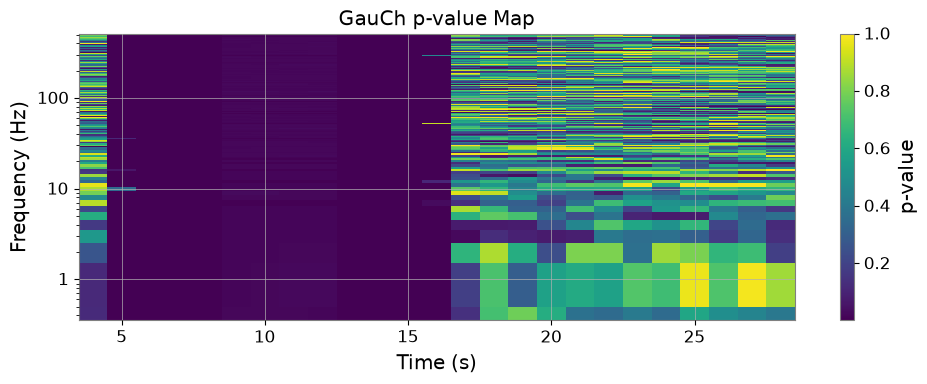

ax.set_title('GauCh p-value Map')
plt.colorbar(mappable=mesh, ax=ax, label='p-value')
plt.tight_layout()

4. Student-t Indicator

The Student-t indicator fits a Student-t distribution to FFT components and outputs the degree of freedom \(\nu\).

nu_spec = ts_glitch.student_t_spectrogram(fftlength=1.0, window=8, frange=(10, 200))
fig, ax = plt.subplots(figsize=(10, 4))
mesh = ax.pcolormesh(nu_spec.times.value, nu_spec.frequencies.value, nu_spec.value.T, shading='auto')
ax.set_yscale('log')
ax.set_xlabel('Time (s)')
ax.set_ylabel('Frequency (Hz)')

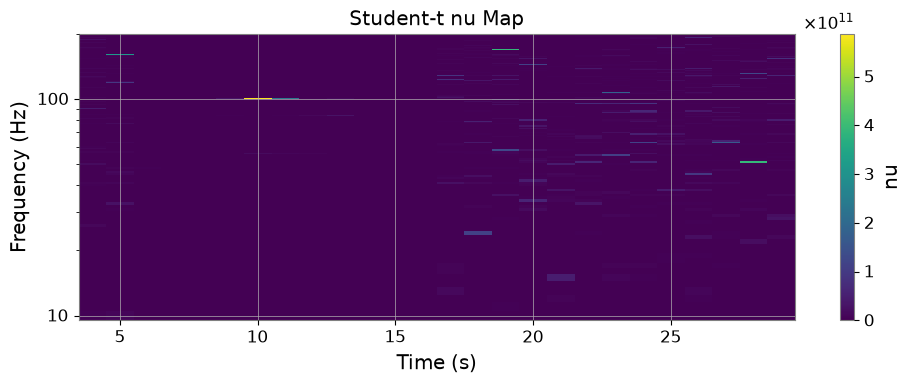

ax.set_title('Student-t nu Map')
plt.colorbar(mappable=mesh, ax=ax, label='nu')
plt.tight_layout()

5. Data Quality Flags

We can automatically generate veto segments where the p-value is below a threshold.

dq_flag = to_segments(gauch_res.pvalue_map, alpha=0.001)
print(dq_flag)

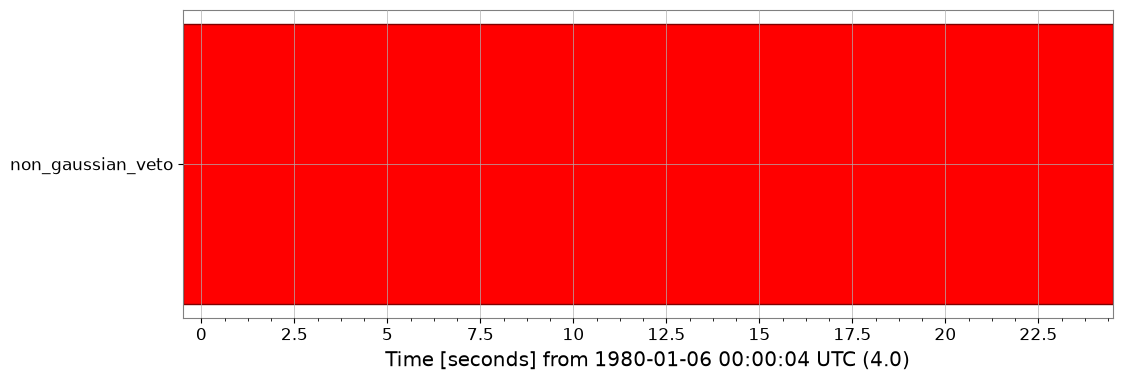

dq_flag.plot()

<DataQualityFlag('non_gaussian_veto',
                 known=[[3.5 ... 28.5)]
                 active=[]
                 description='None')>

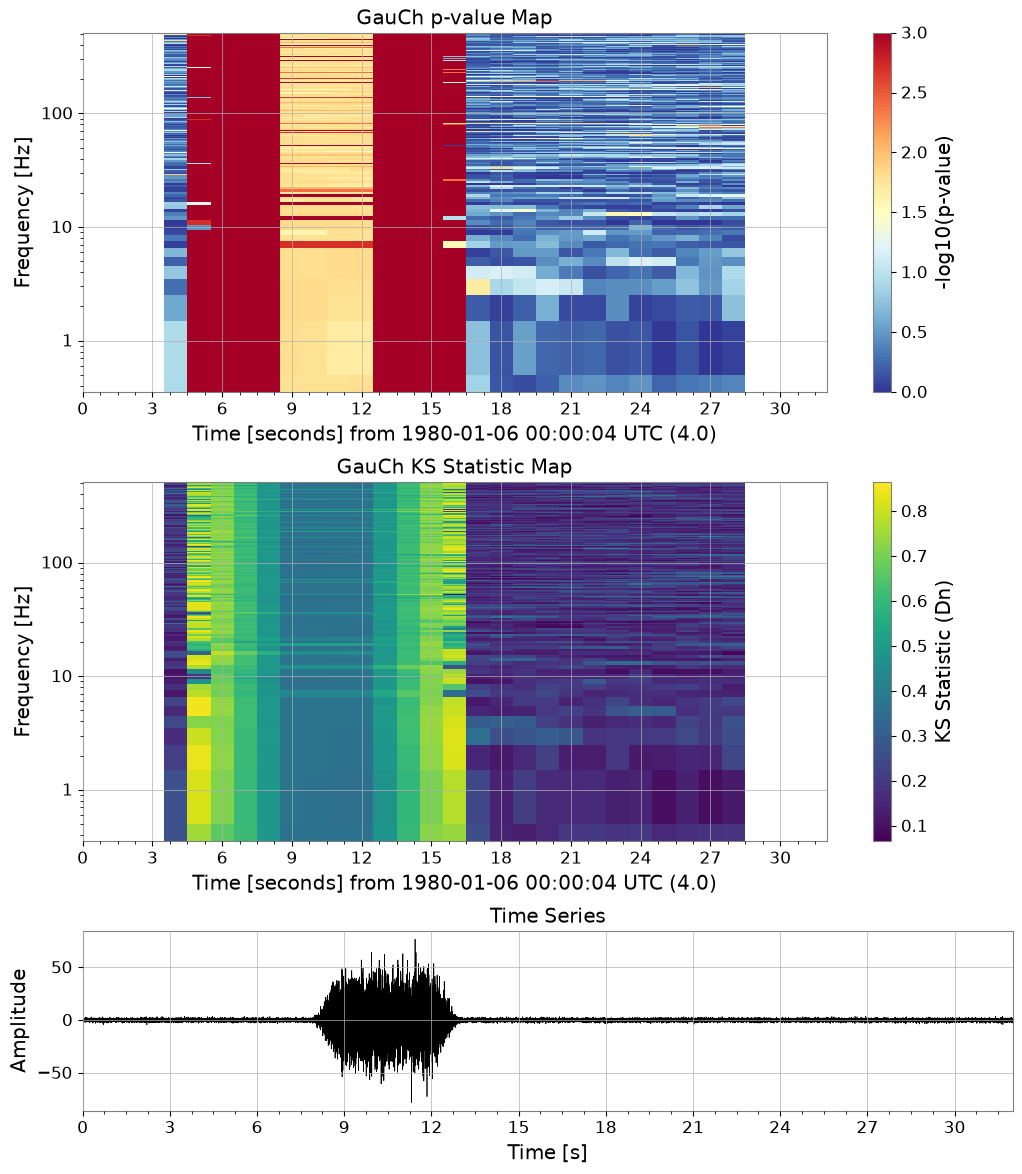

6. Composite Dashboard

Finally, we can visualize everything in a single dashboard.

fig = plot_gauch_dashboard(ts_glitch, gauch_res)
plt.show()
