Correlation Analysis: Statistical Methods#
gwexpy makes it easy to calculate statistical correlations between TimeSeries objects. This is useful for noise hunting and investigating nonlinear coupling.
Supported methods:
Pearson (PCC): Linear correlation.
Kendall (Ktau): Rank correlation (robust to outliers, non-parametric).
MIC: Maximal Information Coefficient (robust to nonlinear relationships, requires
minepyviapython scripts/dev_tools/install_minepy.py).
import warnings
import matplotlib.pyplot as plt
import numpy as np
from gwexpy.plot import PairPlot, Plot
from gwexpy.timeseries import TimeSeries, TimeSeriesMatrix
Pairwise Correlation#
# Create dummy data
t = np.linspace(0, 10, 1000)
# Linear relationship
ts_a = TimeSeries(t, dt=0.01, name="A")
ts_b = TimeSeries(t * 2 + np.random.normal(0, 1, 1000), dt=0.01, name="B_Linear")
# Nonlinear relationship (sine wave)
ts_c = TimeSeries(np.sin(t) * 10, dt=0.01, name="C_Sine")
# Random noise
ts_d = TimeSeries(np.random.normal(0, 1, 1000), dt=0.01, name="D_Noise")

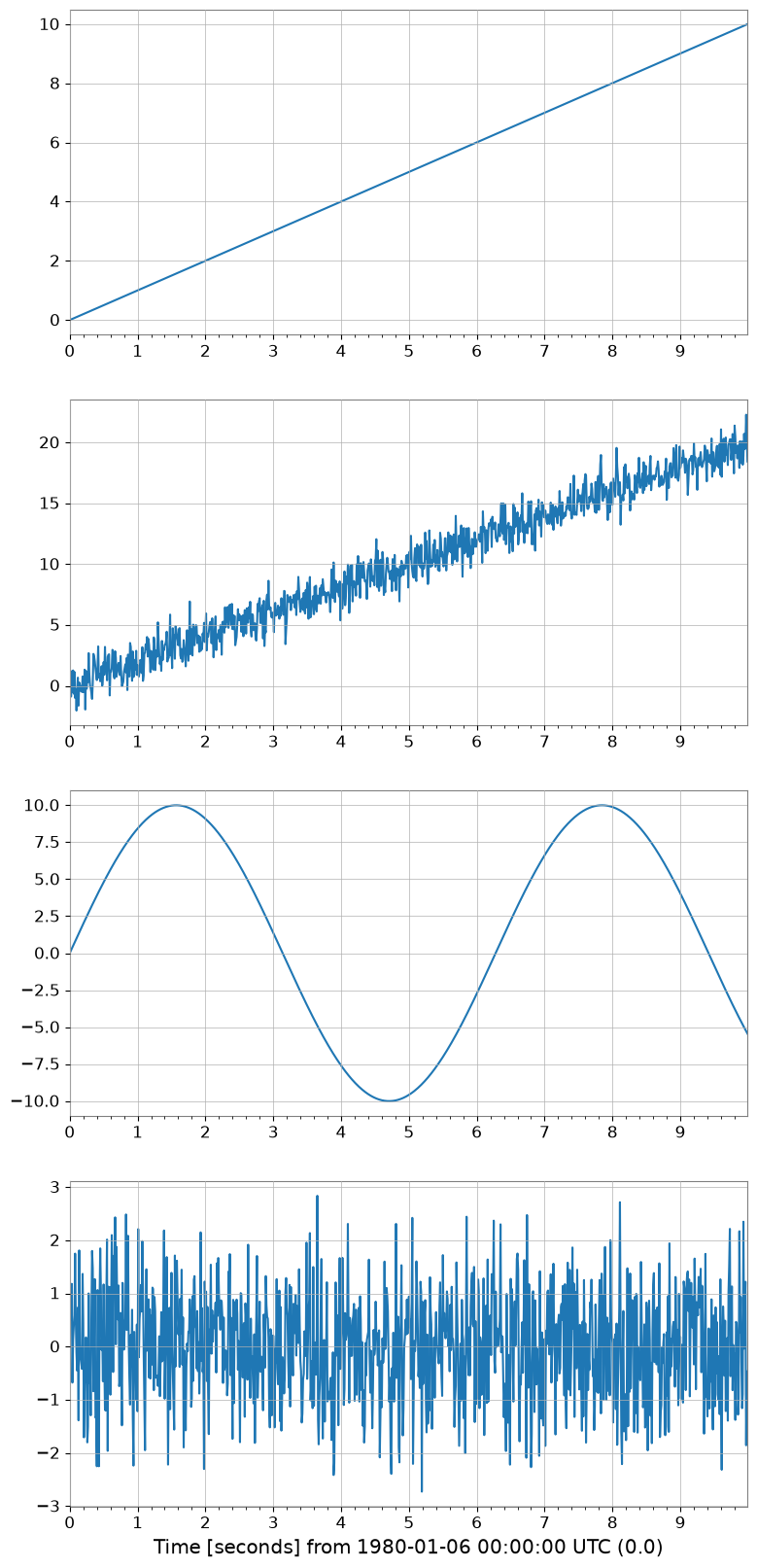

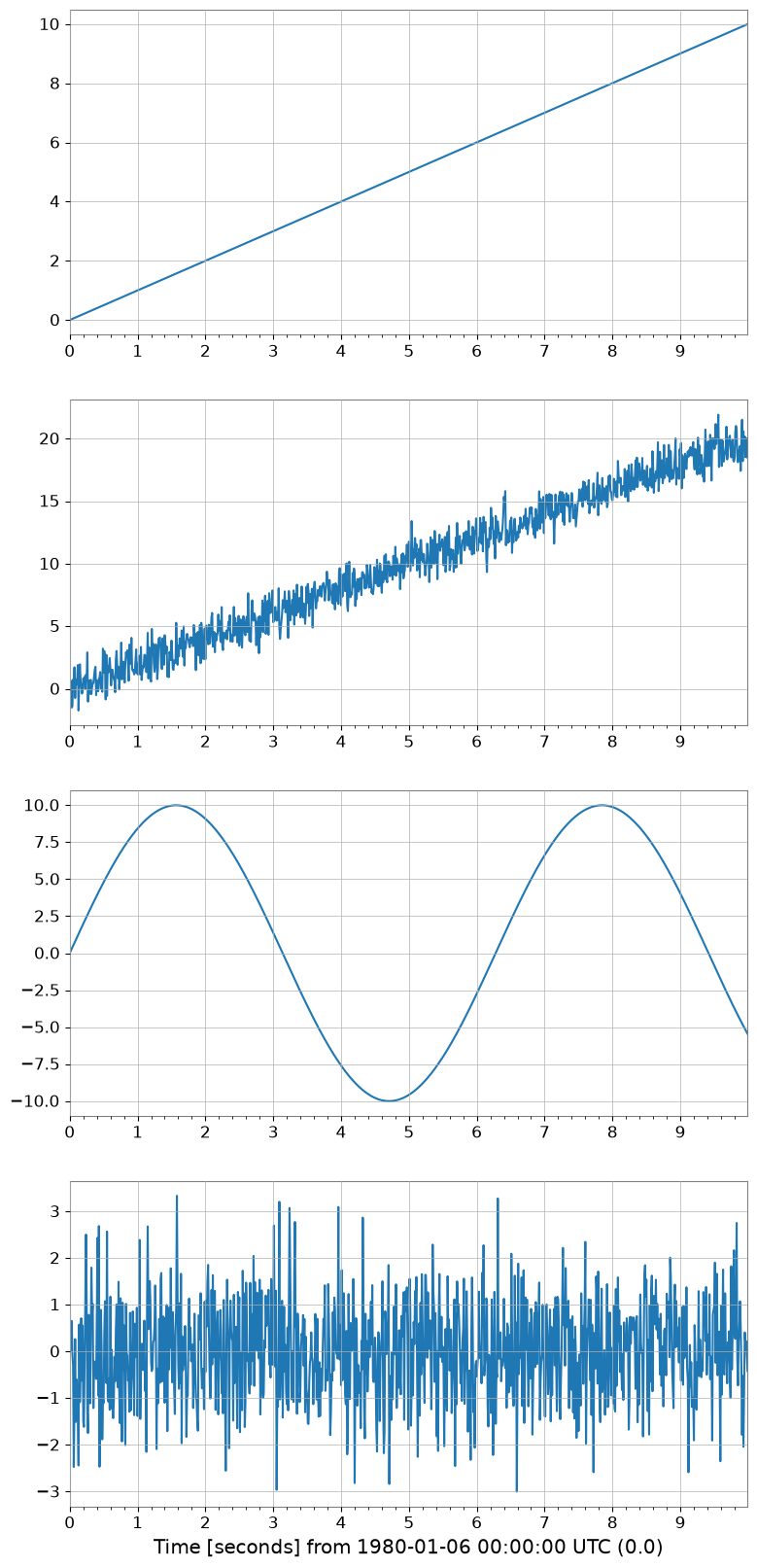

Plot(ts_a, ts_b, ts_c, ts_d, separate=True, sharex=True);
# Visualization

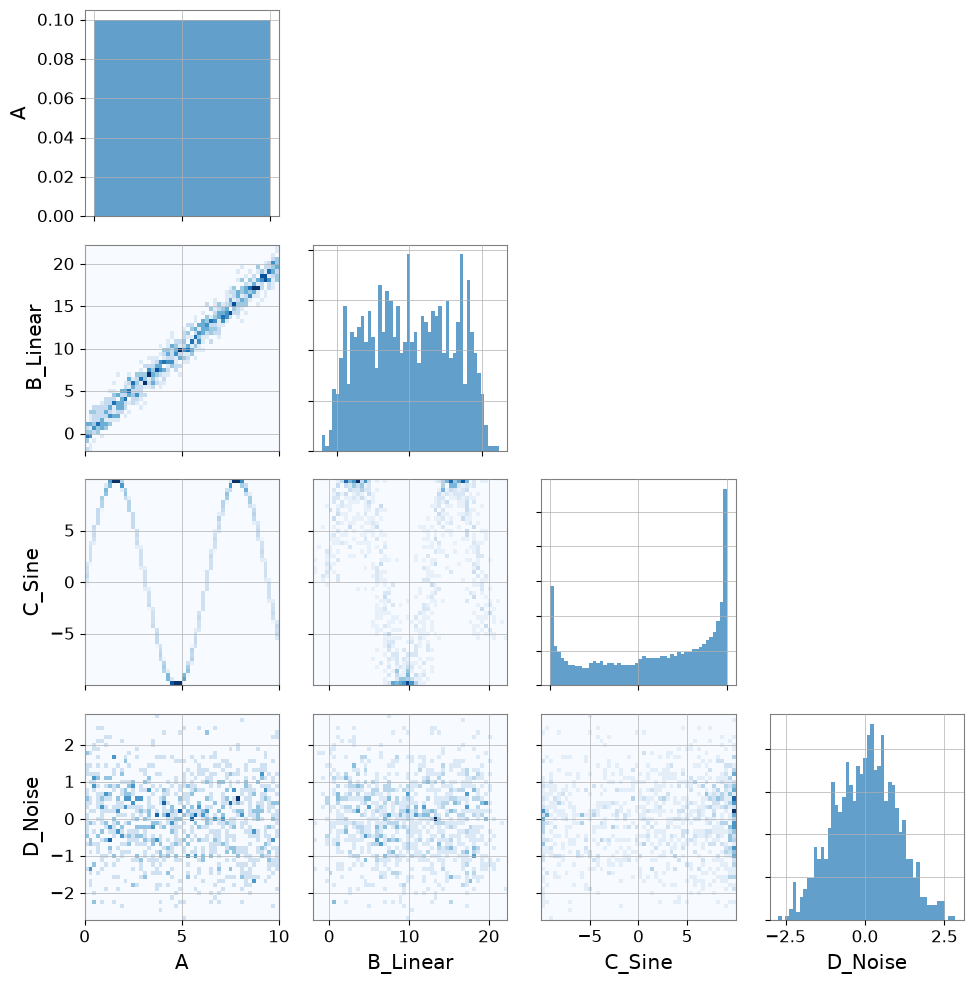

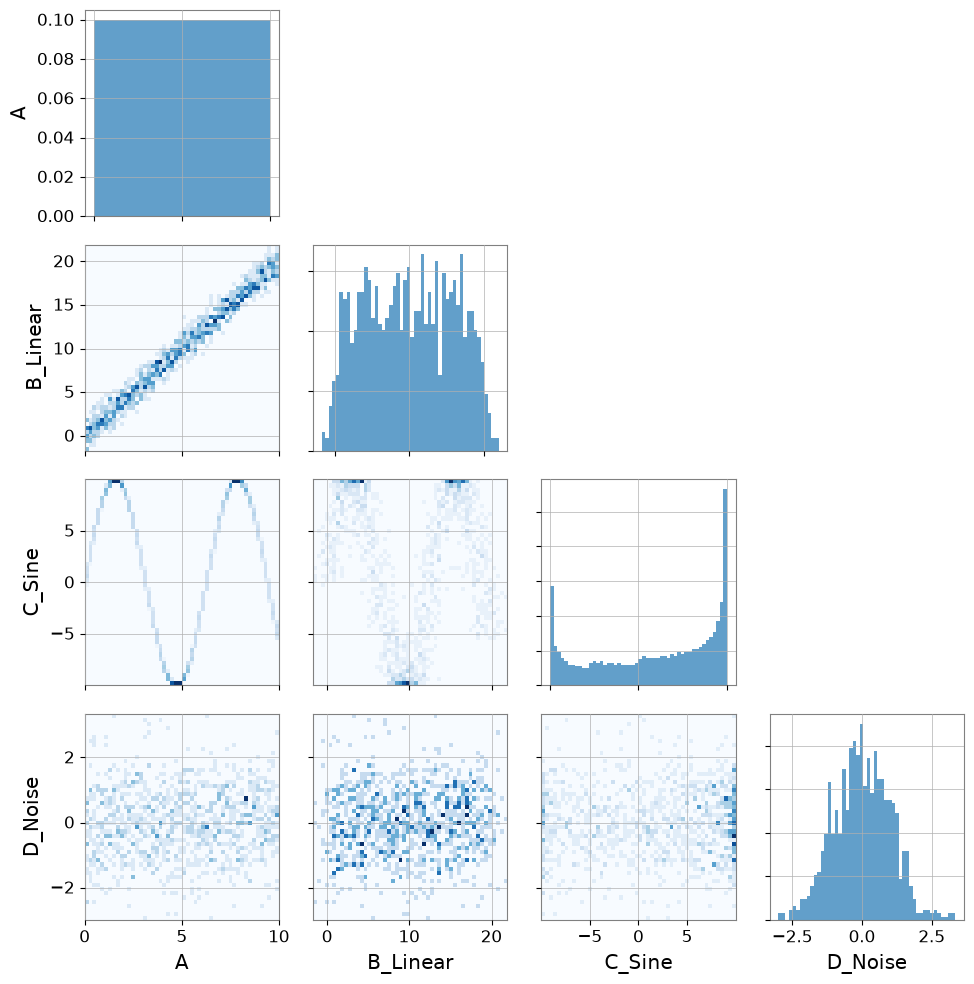

pair = PairPlot([ts_a, ts_b, ts_c, ts_d], corner=True)
pair.show()
<gwexpy.plot.pairplot.PairPlot at 0x7fafa2701050>
Note — automatic resampling: If two time series have different sample rates, gwexpy will automatically resample one to match the other and emit a
UserWarning. To suppress this, ensure both series share the same sample rate before calling correlation methods.
print("Correlation A vs B (linear):")
print(f" Pearson: {ts_a.pcc(ts_b):.3f}")
print(f" Kendall: {ts_a.ktau(ts_b):.3f}")
try:
print(f" MIC: {ts_a.mic(ts_b):.3f}")
except ImportError:
from IPython.display import Markdown, display
display(Markdown("""
**Note**: MIC: (minepy not available)
"""))
Correlation A vs B (linear):
Pearson: 0.984
Kendall: 0.890
**Note**: MIC: (minepy not available)
print("Correlation A vs C (nonlinear sine wave):")
print(f" Pearson: {ts_a.pcc(ts_c):.3f} (linear correlation cannot capture structure)")
print(f" Kendall: {ts_a.ktau(ts_c):.3f}")
try:
print(f" MIC: {ts_a.mic(ts_c):.3f} (captures nonlinear dependency)")
except ImportError:
from IPython.display import Markdown, display
display(Markdown("""
**Note**: MIC: (minepy not available)
"""))
Correlation A vs C (nonlinear sine wave):
Pearson: -0.071 (linear correlation cannot capture structure)
Kendall: -0.053
**Note**: MIC: (minepy not available)
Correlation Vector (Noise Hunting)#
When investigating noise sources, we often want to check correlations between a target channel (e.g., DARM) and hundreds of auxiliary channels.
TimeSeriesMatrix.correlation_vector efficiently computes this ranking.
# Create a Matrix with many auxiliary channels
n_channels = 20
data = np.random.randn(n_channels, 1, 1000)
names = [f"AUX-{i:02d}" for i in range(n_channels)]
# Inject signals into AUX-05 and AUX-12
target_signal = np.sin(np.linspace(0, 20, 1000))
data[5, 0, :] += target_signal * 5 # Strong coupling
data[12, 0, :] += target_signal**2 * 5 # Nonlinear coupling
matrix = TimeSeriesMatrix(data, dt=0.01, channel_names=names)
# Target channel
target = TimeSeries(
target_signal + np.random.normal(0, 0.1, 1000), dt=0.01, name="TARGET"
)
# Compute correlation vector
# Use 'mic' to capture both linear and nonlinear (slower but powerful)
# Use 'pearson' for speed
try:
print("Computing MIC vector (Top 5)...")
df_mic = matrix.correlation_vector(target, method="mic", parallel=2)
print(df_mic.head(5))
except ImportError:
from IPython.display import Markdown, display
display(Markdown("""
**Note**: Skipping MIC example because minepy is not installed.
"""))
Computing MIC vector (Top 5)...
**Note**: Skipping MIC example because minepy is not installed.
print("Computing Pearson vector (Top 5)...")
df_pcc = matrix.correlation_vector(target, method="pearson", parallel=1)
print(df_pcc.head(5))
Computing Pearson vector (Top 5)...
row col channel score
0 5 0 AUX-05 0.951216
1 10 0 AUX-10 -0.054959
2 11 0 AUX-11 0.052333
3 4 0 AUX-04 -0.046173
4 16 0 AUX-16 0.040057

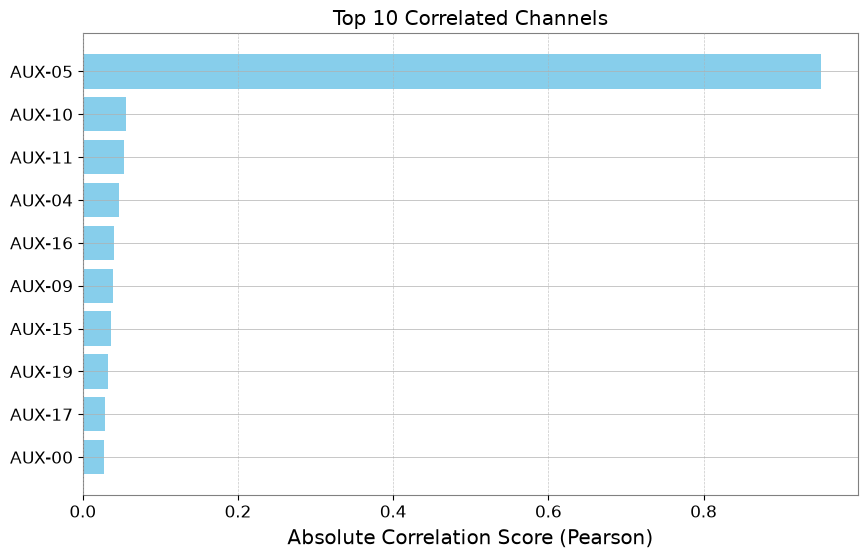

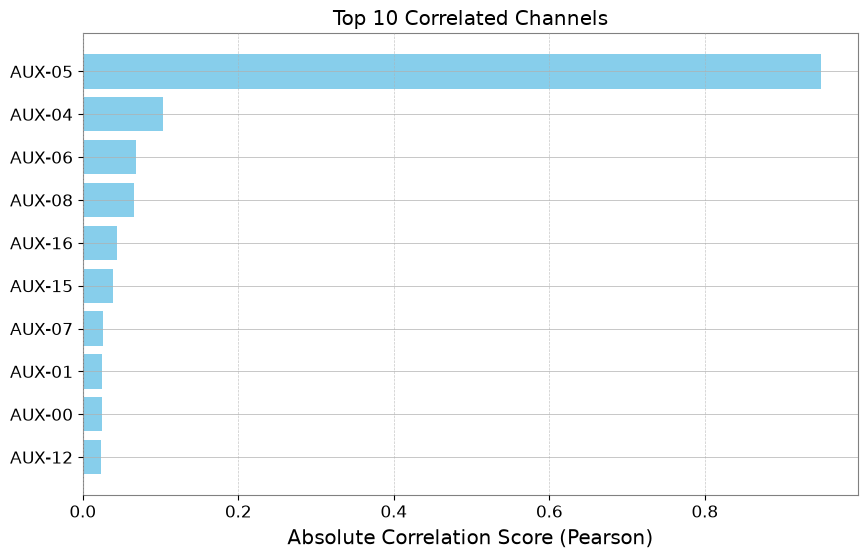

# Visualize ranking (Top 10)
df_plot = df_pcc.head(10).iloc[::-1] # Reverse to descending order
plt.figure(figsize=(10, 6))
plt.barh(df_plot["channel"], np.abs(df_plot["score"]), color="skyblue")
plt.xlabel("Absolute Correlation Score (Pearson)")
plt.title("Top 10 Correlated Channels")
plt.grid(axis="x", linestyle="--", alpha=0.7)
plt.show()
Partial Correlation (Confound Control)#
Partial correlation estimates direct coupling by removing shared confounds.
import numpy as np
from gwexpy.timeseries import TimeSeries
rng = np.random.default_rng(0)
t = np.linspace(0, 10, 1000)
z = np.sin(2 * np.pi * 0.5 * t) + 0.1 * rng.standard_normal(t.size)
x = z + 0.1 * rng.standard_normal(t.size)
y = z + 0.1 * rng.standard_normal(t.size)
ts_x = TimeSeries(x, dt=t[1] - t[0], name="x")
ts_y = TimeSeries(y, dt=t[1] - t[0], name="y")
ts_z = TimeSeries(z, dt=t[1] - t[0], name="z")
print("corr(x,y):", ts_x.correlation(ts_y, method="pearson"))
print("partial corr(x,y|z):", ts_x.partial_correlation(ts_y, controls=ts_z, method="residual"))
corr(x,y): 0.9809075921667307
partial corr(x,y|z): 0.004410452860247914
Association Edges and Graphs#
Use a target TimeSeries against a TimeSeriesMatrix to build edges.
from gwexpy.analysis import association_edges, build_graph
from gwexpy.timeseries import TimeSeriesMatrix
matrix = TimeSeriesMatrix(
np.stack([x, y, z], axis=0)[:, None, :],
dt=t[1] - t[0],
channel_names=["x", "y", "z"],
)
edges = association_edges(ts_x, matrix, method="pearson", topk=3)
print("Association edges:\n", edges)
pcorr = matrix.partial_correlation_matrix(shrinkage="auto")
print("Partial correlation matrix:\n", pcorr)
# If networkx is available:
graph = build_graph(edges, backend="none")
print("Graph built successfully.")
Association edges:
row col channel score source target
0 0 0 x 1.000000 x x
1 2 0 z 0.989968 x z
2 1 0 y 0.980908 x y
Partial correlation matrix:
[[1. 0.12171043 0.64439827]
[0.12171043 1. 0.67130111]
[0.64439827 0.67130111 1. ]]
Graph built successfully.
Visualization: Edge Ranking and Partial-Corr Heatmap#
import matplotlib.pyplot as plt
# Bar plot of top edges
top = edges.sort_values('score', ascending=False, key=abs).head(10)
plt.figure(figsize=(6, 3))
plt.barh(top['target'], top['score'])
plt.gca().invert_yaxis()
plt.xlabel('score')
plt.title('Top associations')
plt.show()

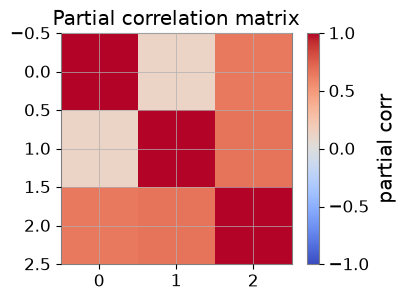

# Heatmap of partial correlation
plt.figure(figsize=(4, 3))
im = plt.imshow(pcorr, vmin=-1, vmax=1, cmap='coolwarm')
plt.colorbar(mappable=im, label='partial corr')
plt.title('Partial correlation matrix')
plt.show()
FastMI (Experimental)#
FastMI is a fast mutual-information (MI) estimator based on a copula formulation (empirical CDF), a probit transform, and an FFT-based self-consistent density estimate.
API:
TimeSeries.fastmi(other, grid_size=..., quantile=..., eps=...)orcorrelation(other, method="fastmi")Output: MI in nats (>= 0). Larger means stronger dependence (linear or nonlinear).
Parameters:
grid_size: FFT grid resolution (trade-off: accuracy vs speed).quantile: trims extreme probit tails for numerical stability.eps: floor for probabilities/densities to avoidlog(0).
# fastMI (copula/probit + FFT-based MI estimator)
# NOTE: this can be slower than Pearson for small n, but is useful for nonlinear dependence.
print('fastMI(x,y):', ts_x.fastmi(ts_y, grid_size=128))
print('fastMI(x,z):', ts_x.fastmi(ts_z, grid_size=128))
fastMI(x,y): 0.08925170168547956
fastMI(x,z): 0.11320579203180092
CAGMon-style Association Graph (Minimal)#
Use the edge list and optionally build a graph for visualization.
# If networkx is available, you can visualize the association graph
try:
import networkx as nx
G = build_graph(edges, backend='networkx')
plt.figure(figsize=(4, 3))
pos = nx.spring_layout(G, seed=0)
nx.draw(G, pos, with_labels=True, node_size=500, font_size=8)
plt.title('Association Graph')
plt.show()
except ImportError as e:
print('Graph plot skipped:', e)
Advanced Statistics#
gwexpy provides advanced statistical capabilities not only for correlation but also for examining data distribution shape and causality.
Skewness: Asymmetry of the distribution.
Kurtosis: Heaviness of distribution tails (presence of outliers).
Distance Correlation (dCor): Measure of nonlinear dependency.
Granger Causality: Causality between time series (contribution to prediction).
Detecting Non-Gaussian Noise (Skewness / Kurtosis)#
# Generate Gaussian noise and non-Gaussian noise (exponential distribution)
np.random.seed(42)
gauss_noise = TimeSeries(np.random.normal(0, 1, 1000), dt=0.01, name="Gaussian")
exp_noise = TimeSeries(
np.random.exponential(1, 1000) - 1, dt=0.01, name="Non-Gaussian"
) # Centered
# Plot

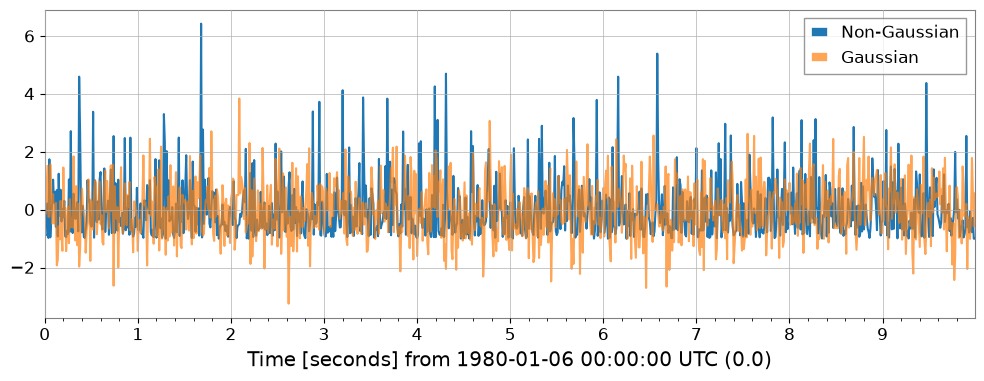

plot = exp_noise.plot(label="Non-Gaussian")
plot.gca().plot(gauss_noise, label="Gaussian", alpha=0.7)
plot.gca().legend()
plot.show()
# Calculate statistics
print(
f"Gaussian: Skewness={gauss_noise.skewness():.3f}, Kurtosis={gauss_noise.kurtosis():.3f}"
)
print(
f"Non-Gaussian: Skewness={exp_noise.skewness():.3f}, Kurtosis={exp_noise.kurtosis():.3f}"
)
print("Note: Gaussian distributions have Skewness~0, Kurtosis~0 (Fisher definition).")
Gaussian: Skewness=0.117, Kurtosis=0.066
Non-Gaussian: Skewness=1.981, Kurtosis=5.379
Note: Gaussian distributions have Skewness~0, Kurtosis~0 (Fisher definition).
Detecting Nonlinear Dependency (Distance Correlation)#
Let’s examine the relationship between the sine wave data (ts_c) and linear data (ts_a) using dCor. We can detect relationships that Pearson correlation cannot capture.
try:
dcor_val = ts_a.distance_correlation(ts_c)
print(f"Distance Correlation (A vs C): {dcor_val:.3f}")
print(f"Pearson Correlation (A vs C): {ts_a.pcc(ts_c):.3f}")
except ImportError:
from IPython.display import Markdown, display
display(Markdown("""
**Note**: dcor package is not installed. Install it with: pip install dcor
"""))
Distance Correlation (A vs C): 0.381
Pearson Correlation (A vs C): -0.071
Estimating Causality (Granger Causality)#
Tests whether past values of one time series help predict future values of another time series.
# Generate data with causal relationship (X -> Y)
np.random.seed(0)
n = 200
x_val = np.random.randn(n)
y_val = np.zeros(n)
# Y depends on the value of X one step before
for i in range(1, n):
y_val[i] = 0.5 * y_val[i - 1] + 0.8 * x_val[i - 1] + 0.1 * np.random.randn()
ts_x = TimeSeries(x_val, dt=1, name="Cause (X)")
ts_y = TimeSeries(y_val, dt=1, name="Effect (Y)")
try:
# Does X cause Y? (Does X help predict Y?) -> p-value should be small
p_xy = ts_y.granger_causality(ts_x, maxlag=5)
# Does Y cause X? -> p-value should be large
p_yx = ts_x.granger_causality(ts_y, maxlag=5)
print(
f"Granger Causality X -> Y (p-value): {p_xy:.4f} {'(Significant)' if p_xy < 0.05 else ''}"
)
print(
f"Granger Causality Y -> X (p-value): {p_yx:.4f} {'(Significant)' if p_yx < 0.05 else ''}"
)
except ImportError:
from IPython.display import Markdown, display
display(Markdown("""
**Note**: The statsmodels package is not installed. To perform Granger causality analysis:
```bash
pip install statsmodels
```
You can continue with the rest of the notebook.
"""))
Granger Causality X -> Y (p-value): 0.0000 (Significant)
Granger Causality Y -> X (p-value): 0.0907
Fast Mutual Information (fastmi)#
fastmi is a fast mutual-information (MI) estimator based on a copula formulation, a probit transform, and an FFT-based density estimate. It captures complex nonlinear dependencies that Pearson correlation might miss.
ts_y_aligned = ts_y.resample(ts_x.sample_rate.value)
ts_z_aligned = ts_z.resample(ts_x.sample_rate.value)
mi_xy = ts_x.fastmi(ts_y_aligned, grid_size=128)
mi_xz = ts_x.fastmi(ts_z_aligned, grid_size=128)
print(f"Mutual Information (x, y): {mi_xy:.4f} nats")
print(f"Mutual Information (x, z): {mi_xz:.4f} nats")
Mutual Information (x, y): 0.0195 nats
Mutual Information (x, z): 0.0000 nats
/home/runner/work/gwexpy/gwexpy/gwexpy/timeseries/_resampling.py:624: UserWarning: resample() rate matches current sample_rate (1.0 Hz), returning input data unmodified; please double-check your parameters
result = BaseTimeSeries.resample(
