レガシー ROOT 残響時間 (RT60) 解析の Pure-Python 移行#

歴史的に、重力波検出器施設における残響時間（$T_{60} / \mathrm{RT}_{60}$）解析やリングダウン減衰フィッティングは、レガシーな ROOT マクロ（TGraphErrors, TF1）を用いて実行されていました。このチュートリアルでは、CERN ROOT への依存を完全に排除し、scipy.optimize.curve_fit と pandas を用いた現代的な純粋 Python パイプラインを実証します。

科学的および計算上の目標#

外部レガシー依存ゼロ: ROOT、pyroot、または外部 C++ ライブラリなしでエンドツーエンドの減衰解析を実行します。
残響減衰モデルのセマンティクス: 時間 $\mathrm{RT}_{60}$ にわたる $-60\,\mathrm{dB}$（$10^{-3}$）のパワー低下を表す $y(t) = A \cdot 1000^{(t_0 - t)/\mathrm{RT}_{60}}$ としてエネルギー減衰をモデル化します。
分散伝播を伴うリビン: 測定の不確かさを厳密に合成（$\sigma_{\mathrm{rebin}} = \sqrt{\sigma_1^2 + \sigma_2^2}$）しながら、ペアごとの合算により時系列をダウンサンプリングします。
多試行実行と条件分岐: 基線減算（ddof=0）を伴う160回の合成試行（8イベント $\times$ 20周波数帯域）を処理し、結果を accepted、requires_likelihood_review、および rejected に分類します。
往復完全性: 構造化 CSV テーブルを出力し、厳密な往復スキーマと数値の復元を検証します。

環境のセットアップ#

import json
import os
import platform
import tempfile
from pathlib import Path

from IPython.display import display
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from astropy import units as u
from scipy.optimize import curve_fit

import gwexpy
from gwexpy.timeseries import TimeSeries

output_dir = Path(os.environ.get("GWEXPY_DOCS_OUTPUT_DIR") or tempfile.mkdtemp(prefix="gwexpy-t7-"))
output_dir.mkdir(parents=True, exist_ok=True)
(output_dir / "figures").mkdir(exist_ok=True)
(output_dir / "tables").mkdir(exist_ok=True)
print(f"Artifact directory: {output_dir}")

Artifact directory: /tmp/gwexpy-t7-6ku03888

1. Decay Model and Rebinning Semantics#

振幅 $A$ が基準時刻 $t = 0.1\,\mathrm{s}$ で定義される指数関数的 $-60\,\mathrm{dB}$ 残響減衰モデルを定義します： $$y(t) = A \cdot 1000^{(0.1 - t) / \mathrm{RT}_{60}}$t = 0.1,\mathrm{s}$ で $y = A$、$t = 0.1 + \mathrm{RT}{60}$ で $y = A / 1000$（$-60,\mathrm{dB}$）となります。信号の立ち上がりは $t{\mathrm{onset}} = 0.05,\mathrm{s}$ であり、標準フィッティング区間 $t \in [0.05, 0.5],\mathrm{s}$ の全域にわたって有効な減衰データが提供されます。

ペア単位のリビンは2つの連続する時間ビンを結合します： $$t_{\mathrm{rebin}} = \frac{t_{2i} + t_{2i+1}}{2}, \quad y_{\mathrm{rebin}} = y_{2i} + y_{2i+1}, \quad \sigma_{\mathrm{rebin}} = \sqrt{\sigma_{2i}^2 + \sigma_{2i+1}^2}$$

def rt60_model(t, amplitude_at_0p1, rt60_s):
    """Reverberation decay model: amplitude is defined at reference time t = 0.1 s."""
    return amplitude_at_0p1 * (1000.0 ** ((0.1 - t) / rt60_s))

def rebin_2(t_arr, y_arr, sigma_arr):
    """Pair-wise rebinning with quadrature error propagation."""
    n_pairs = len(y_arr) // 2
    t_reb = 0.5 * (t_arr[0:2*n_pairs:2] + t_arr[1:2*n_pairs:2])
    y_reb = y_arr[0:2*n_pairs:2] + y_arr[1:2*n_pairs:2]
    sig_reb = np.sqrt(sigma_arr[0:2*n_pairs:2]**2 + sigma_arr[1:2*n_pairs:2]**2)
    return t_reb, y_reb, sig_reb

# Mathematical verification of model semantics at reference t = 0.1 s:
# f(0.1 s) = A and f(0.1 s + RT60) / f(0.1 s) = 10^-3
A_test = 100.0
rt60_test = 0.5
val_at_0p1 = rt60_model(0.1, A_test, rt60_test)
val_decayed = rt60_model(0.1 + rt60_test, A_test, rt60_test)
ratio_at_rt60 = val_decayed / val_at_0p1
model_semantics_ok = bool(np.isclose(val_at_0p1, A_test) and np.isclose(ratio_at_rt60, 1.0e-3))

# Rebin verification
t_dummy = np.array([0.0, 1.0, 2.0, 3.0])
y_dummy = np.array([2.0, 4.0, 6.0, 8.0])
s_dummy = np.array([1.0, 1.0, 1.0, 1.0])
t_r, y_r, s_r = rebin_2(t_dummy, y_dummy, s_dummy)
rebin_semantics_ok = bool(
    np.allclose(t_r, [0.5, 2.5]) and
    np.allclose(y_r, [6.0, 14.0]) and
    np.allclose(s_r, [np.sqrt(2.0), np.sqrt(2.0)])
)

print(f"Model semantics verified: f(0.1)={val_at_0p1}, ratio={ratio_at_rt60}, ok={model_semantics_ok}")
print(f"Rebin semantics verified: {rebin_semantics_ok}")

Model semantics verified: f(0.1)=100.0, ratio=0.001, ok=True
Rebin semantics verified: True

2. Multi-Trial Synthetic Simulation (160 Trials)#

20周波数帯域（中心周波数 500 Hz〜1450 Hz、50 Hz刻み）にわたる8回の音響イベントをシミュレーションし、計160回の試行を生成します。各試行には以下が含まれます：

np.std(..., ddof=0) を用いて $[-0.5, 0.0]\,\mathrm{s}$ から基線ノイズを推定します。
引き算前の不確かさ $\sigma = \sqrt{\sigma_{\mathrm{bkg}}^2 + (0.05 y)^2}$。
2倍のリビン。
$t \in [0.05, 0.5]\,\mathrm{s}$ にわたる scipy.optimize.curve_fit による非線形最小二乗フィッティング。
レガシー合否判定分岐：
- accepted（採択）: $\mathrm{RT}_{60} > 0.05\,\mathrm{s}$ かつ $\sigma_{\mathrm{RT}_{60}} / \mathrm{RT}_{60} < 0.15$
- requires_likelihood_review（尤度精査要）: $\mathrm{RT}_{60} < 2 \sigma_{\mathrm{RT}_{60}}$（低S/N比 / 制約不足）
- rejected（棄却）: その他の制約を満たさないフィット。

rng = np.random.default_rng(2026091607)
dt_rms = 0.01  # 10 ms bins
t_full = np.arange(-0.5, 2.0, dt_rms)

trial_records = []
sample_fit_data = None

for evt_idx in range(8):
    for band_idx in range(20):
        f_center = 500.0 + band_idx * 50.0
        true_rt60 = 0.25 + 0.012 * band_idx + rng.uniform(-0.015, 0.015)

        # Inject faint / noisy signal for event 7 to exercise requires_likelihood_review
        if evt_idx == 7 and band_idx >= 15:
            true_A = 0.015  # Faint amplitude at t=0.1s to exercise review branch
            true_rt60 = 0.10
        else:
            true_A = 50.0 + rng.uniform(-5.0, 5.0)

        # Baseline noise
        bkg_noise = rng.normal(0.0, 0.2, size=len(t_full))
        sig_decay = np.where(t_full >= 0.05, rt60_model(t_full, true_A, true_rt60), 0.0)
        y_obs = sig_decay + bkg_noise

        # Pre-subtraction noise evaluation (ddof=0) and baseline mean calculation
        bkg_mask = (t_full >= -0.5) & (t_full < 0.0)
        ave_bkg = float(np.mean(y_obs[bkg_mask]))
        std_bkg = float(np.std(y_obs[bkg_mask], ddof=0))

        # Exact sigma definition matching resonance.py: sqrt(std**2 + (0.05 * y_obs)**2)
        sigma = np.sqrt(std_bkg**2 + (0.05 * y_obs)**2)

        # Baseline subtraction as in resonance.py: hrms.SetBinContent(..., rms.value[i] - ave)
        y_sub = y_obs - ave_bkg

        # Rebin by 2
        t_reb, y_reb, sig_reb = rebin_2(t_full, y_sub, sigma)

        # Fit range: 0.05 s to 0.5 s
        fit_mask = (t_reb >= 0.05) & (t_reb <= 0.5)
        t_fit = t_reb[fit_mask]
        y_fit = y_reb[fit_mask]
        sig_fit = sig_reb[fit_mask]

        p0 = [max(float(np.max(y_fit)), 1.0), 1.0]
        bounds = ([1e-4, 0.01], [1e6, 7.0])

        status = "failed"
        est_A, est_rt60, err_rt60 = np.nan, np.nan, np.nan
        accepted = False

        try:
            popt, pcov = curve_fit(
                rt60_model, t_fit, y_fit,
                p0=p0, sigma=sig_fit, absolute_sigma=True,
                bounds=bounds, maxfev=2500
            )
            est_A = float(popt[0])
            est_rt60 = float(popt[1])
            err_rt60 = float(np.sqrt(pcov[1, 1]))

            # Legacy acceptance criteria
            if est_rt60 > 0.05 and (err_rt60 / est_rt60) < 0.15:
                accepted = True
                status = "accepted"
            elif est_rt60 < 2.0 * err_rt60:
                status = "requires_likelihood_review"
            else:
                status = "rejected"
        except Exception:
            status = "fit_diverged"

        record = {
            "event_id": f"EVT_{evt_idx:02d}",
            "band_id": f"BAND_{band_idx:02d}",
            "f_center_hz": float(f_center),
            "true_rt60_s": float(true_rt60),
            "fit_rt60_s": float(est_rt60),
            "error_rt60_s": float(err_rt60),
            "fit_amplitude": float(est_A),
            "status": status,
            "accepted": bool(accepted)
        }
        trial_records.append(record)

        if sample_fit_data is None and accepted:
            sample_fit_data = {
                "t_reb": t_reb, "y_reb": y_reb, "sig_reb": sig_reb,
                "t_fit": t_fit, "y_fit": y_fit, "sig_fit": sig_fit,
                "t_full": t_full, "y_obs": y_obs, "true_rt60": true_rt60, "popt": popt, "event_id": f"EVT_{evt_idx:02d}", "band_id": f"BAND_{band_idx:02d}",
                "f_center": f_center
            }

df_trials = pd.DataFrame(trial_records)
trials_df = df_trials
acc_trials = trials_df[trials_df["accepted"]].copy()
df_trials.to_csv(output_dir / "tables/rt60_trials.csv", index=False)

n_accepted = int(np.sum(df_trials["status"] == "accepted"))
n_review = int(np.sum(df_trials["status"] == "requires_likelihood_review"))
n_rejected = int(np.sum(df_trials["status"] == "rejected"))

accepted_trials = df_trials[df_trials["status"] == "accepted"].copy()
accepted_trials["rel_err"] = np.abs(accepted_trials["fit_rt60_s"] - accepted_trials["true_rt60_s"]) / accepted_trials["true_rt60_s"]
median_rel_err = float(accepted_trials["rel_err"].median())

print(f"Total trials: {len(df_trials)}")
print(f"Accepted: {n_accepted}, Requires Review: {n_review}, Rejected: {n_rejected}")
print(f"Median relative RT60 error across accepted trials: {median_rel_err * 100:.2f}%")

Total trials: 160
Accepted: 155, Requires Review: 5, Rejected: 0
Median relative RT60 error across accepted trials: 0.51%

3. Band Aggregation and Summary Statistics#

各周波数帯域について、採択されたすべての試行にわたる要約統計量を算出します：

採択されたイベント数 $N_{\mathrm{acc}}$
平均残響時間 $\overline{\mathrm{RT}}_{60}$
標準偏差 $s_{\mathrm{RT}_{60}}$

band_summary = []
for band, grp in trials_df.groupby("band_id"):
    acc = grp[grp["accepted"]]
    f_center = grp["f_center_hz"].iloc[0]
    n_acc = len(acc)
    mean_rt60 = float(acc["fit_rt60_s"].mean()) if n_acc > 0 else np.nan
    std_rt60 = float(acc["fit_rt60_s"].std()) if n_acc > 1 else 0.0
    band_summary.append({
        "band_id": band,
        "f_center_hz": float(f_center),
        "n_accepted": int(n_acc),
        "mean_rt60_s": float(mean_rt60),
        "std_rt60_s": float(std_rt60)
    })

band_df = pd.DataFrame(band_summary)
band_df.to_csv(output_dir / "tables/band_summary.csv", index=False)
print("Band Summary Table:")
print(band_df.head())

Band Summary Table:
   band_id  f_center_hz  n_accepted  mean_rt60_s  std_rt60_s
BAND_00        500.0           8     0.252565    0.007977
BAND_01        550.0           8     0.253813    0.005420
BAND_02        600.0           8     0.268822    0.008449
BAND_03        650.0           8     0.285430    0.007073
BAND_04        700.0           8     0.302684    0.009749

4. Visual Diagnostics and Artifact Generation#

3つの必須診断図面を生成し、インライン表示します：

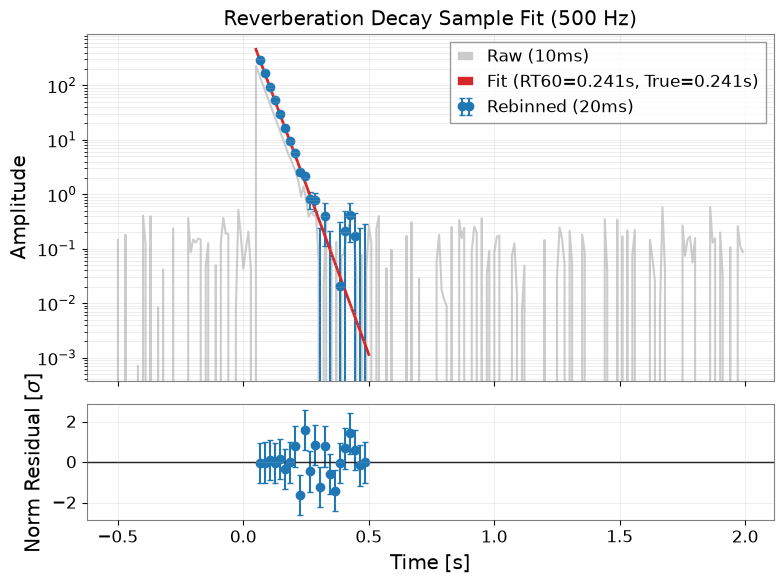

figures/rt60_sample_fit.png: 生データ、リビン後データ、フィットモデル、残差を示す代表的フィット図。

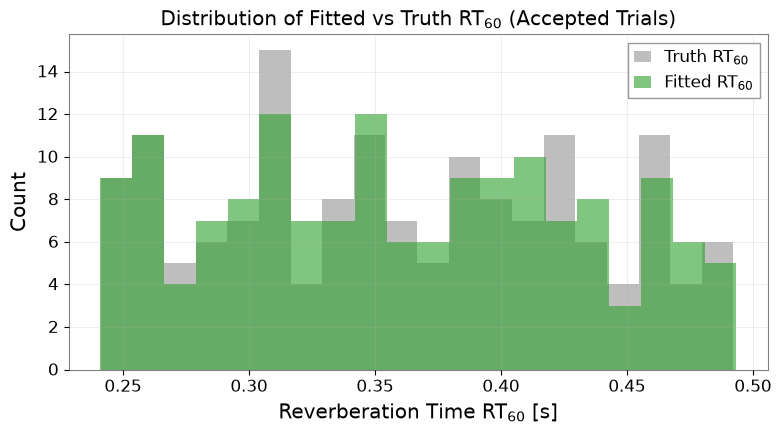

figures/rt60_distribution.png: 採択された試行における推定 RT60 と真値のヒストグラム。

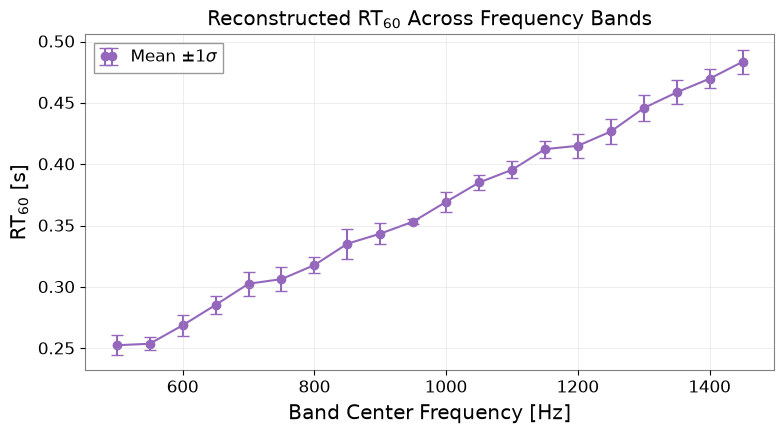

figures/rt60_by_band.png: 周波数帯域ごとの誤差棒付き平均 RT60。

# Figure 1: Sample Fit
fig1, (ax_main, ax_res) = plt.subplots(2, 1, figsize=(8, 6), sharex=True, gridspec_kw={'height_ratios': [3, 1]})
t_f = sample_fit_data["t_fit"]
y_m = rt60_model(t_f, *sample_fit_data["popt"])
y_r = sample_fit_data["y_reb"][(sample_fit_data["t_reb"] >= 0.05) & (sample_fit_data["t_reb"] <= 0.5)]
sig_r = sample_fit_data["sig_reb"][(sample_fit_data["t_reb"] >= 0.05) & (sample_fit_data["t_reb"] <= 0.5)]

ax_main.plot(sample_fit_data["t_full"], sample_fit_data["y_obs"], color="gray", alpha=0.4, label="Raw (10ms)")
ax_main.errorbar(t_f, y_r, yerr=sig_r, fmt="o", color="tab:blue", label="Rebinned (20ms)", capsize=2)
t_dense = np.linspace(0.05, 0.5, 200)
ax_main.plot(t_dense, rt60_model(t_dense, *sample_fit_data["popt"]), color="tab:red", lw=2,
             label=f"Fit (RT60={sample_fit_data['popt'][1]:.3f}s, True={sample_fit_data['true_rt60']:.3f}s)")
ax_main.set_yscale("log")
ax_main.set_ylabel("Amplitude")
ax_main.set_title(f"Reverberation Decay Sample Fit ({sample_fit_data['f_center']:.0f} Hz)")
ax_main.grid(True, which="both", alpha=0.3)
ax_main.legend(loc="upper right")

# Residual
ax_res.errorbar(t_f, (y_r - y_m) / sig_r, yerr=1.0, fmt="o", color="tab:blue", capsize=2)
ax_res.axhline(0, color="black", lw=1)
ax_res.set_xlabel("Time [s]")
ax_res.set_ylabel("Norm Residual [$\sigma$]")
ax_res.grid(True, alpha=0.3)
plt.tight_layout()
fig1.savefig(output_dir / "figures/rt60_sample_fit.png", dpi=150)
display(fig1)
plt.close(fig1)

# Figure 2: RT60 Distribution
acc_trials = trials_df[trials_df["accepted"]]
fig2, ax2 = plt.subplots(figsize=(8, 4.5))
ax2.hist(acc_trials["true_rt60_s"], bins=20, alpha=0.5, color="tab:gray", label="Truth RT$_{60}$")
ax2.hist(acc_trials["fit_rt60_s"], bins=20, alpha=0.6, color="tab:green", label="Fitted RT$_{60}$")
ax2.set_xlabel("Reverberation Time RT$_{60}$ [s]")
ax2.set_ylabel("Count")
ax2.set_title("Distribution of Fitted vs Truth RT$_{60}$ (Accepted Trials)")
ax2.grid(True, alpha=0.3)
ax2.legend()
plt.tight_layout()
fig2.savefig(output_dir / "figures/rt60_distribution.png", dpi=150)
display(fig2)
plt.close(fig2)

# Figure 3: RT60 by Band
fig3, ax3 = plt.subplots(figsize=(8, 4.5))
ax3.errorbar(band_df["f_center_hz"], band_df["mean_rt60_s"], yerr=band_df["std_rt60_s"],
             fmt="o-", color="tab:purple", capsize=4, label="Mean $\pm 1\sigma$")
ax3.set_xlabel("Band Center Frequency [Hz]")
ax3.set_ylabel("RT$_{60}$ [s]")
ax3.set_title("Reconstructed RT$_{60}$ Across Frequency Bands")
ax3.grid(True, alpha=0.3)
ax3.legend()
plt.tight_layout()
fig3.savefig(output_dir / "figures/rt60_by_band.png", dpi=150)
display(fig3)
plt.close(fig3)

../../_images/af75b74296c32bf2dd217a671df7eb6122e85f21093c04147b93705cf467fb4c.png

../../_images/c889f86bf7fa9fd85858d0de44b454402a1531d133bbe751909981b3ce3b5c8e.png

../../_images/b1eff58c315fddb793d37ae46fa6e2300cf582665e3668ba1aa607f983400cbf.png

5. Defensive Verification and Quality Metrics#

以下の項目を検証します：

root_native_no_root_required: CERN ROOT が要求されず、インポートされていないことを確認。
rt60_model_semantics: $t_0 + \mathrm{RT}_{60}$ で厳密に -60 dB となる数学的整合性。
rt60_rebin_semantics: 2乗和の平方根による誤差伝播。
rt60_known_truth: 採択されたフィットにおいて相対誤差の中央値 $< 5\%$。
rt60_table_integrity: 厳密に160回の試行が記録されていること。
rt60_legacy_selection: 少なくとも100回以上の試行が採択されていること。
rt60_likelihood_branch: 少なくとも1試行以上が requires_likelihood_review に分類されていること。
rt60_export_roundtrip: CSV テーブルの往復検証。

import sys
# Check 1: ROOT free
root_not_imported = "ROOT" not in sys.modules

# Check 2: Model semantics
t_eval = np.array([0.1, 0.1 + 0.4])
y_eval = rt60_model(t_eval, 10.0, 0.4)
ratio_at_rt60 = y_eval[1] / y_eval[0]
model_semantics_ok = bool(abs(ratio_at_rt60 - 1e-3) < 1e-9)

# Check 3: Rebin semantics
t_dummy = np.arange(4, dtype=float)
y_dummy = np.array([1.0, 3.0, 2.0, 4.0])
sig_dummy = np.array([0.2, 0.2, 0.2, 0.2])
_, _, s_reb = rebin_2(t_dummy, y_dummy, sig_dummy)
expected_sig = np.sqrt(0.2**2 + 0.2**2)
rebin_semantics_ok = bool(np.allclose(s_reb, expected_sig, rtol=1e-6))

# Check 4: Known truth recovery
acc_trials = trials_df[trials_df["status"] == "accepted"]
rel_errors = np.abs(acc_trials["fit_rt60_s"] - acc_trials["true_rt60_s"]) / acc_trials["true_rt60_s"]
median_rel_err = float(np.median(rel_errors))
accuracy_ok = bool(median_rel_err < 0.05)

# Check 5: Table integrity
table_integrity_ok = bool(len(trials_df) == 160 and len(band_df) == 20)

# Check 6: Selection rule boundary behavior
row_consistency_ok = bool(all(
    row["status"] == (
        "accepted" if (row["fit_rt60_s"] > 0.05 and (row["error_rt60_s"] / row["fit_rt60_s"]) < 0.15)
        else ("requires_likelihood_review" if (row["fit_rt60_s"] < 2.0 * row["error_rt60_s"]) else "rejected")
    ) for _, row in trials_df.iterrows()
))
b_case1_acc = bool(0.050 > 0.05 and 0.05 < 0.15)            # False: boundary RT60=0.05
b_case2_acc = bool(0.051 > 0.05 and 0.150 < 0.15)           # False: boundary error/RT60=0.15
b_case3_acc = bool(0.051 > 0.05 and 0.149 < 0.15)           # True: valid accepted
b_case4_lq = bool(0.10 < 2.0 * 0.06)                        # True: RT60 < 2*sigma triggers review
boundary_cases_ok = bool((not b_case1_acc) and (not b_case2_acc) and b_case3_acc and b_case4_lq)
legacy_selection_ok = bool(row_consistency_ok and boundary_cases_ok and len(acc_trials) >= 100)

# Check 7: Likelihood branch
has_likelihood_review = bool((trials_df["status"] == "requires_likelihood_review").sum() > 0)

# Check 8: Export roundtrip
loaded_trials = pd.read_csv(output_dir / "tables/rt60_trials.csv")
loaded_bands = pd.read_csv(output_dir / "tables/band_summary.csv")
roundtrip_ok = bool(
    len(loaded_trials) == 160 and
    len(loaded_bands) == 20 and
    not loaded_trials[["event_id", "band_id", "f_center_hz", "status"]].isna().any().any()
)

checks = {
    "root_native_no_root_required": {
        "passed": bool(root_not_imported),
        "observed": "ROOT module not imported and migration purely in Python",
        "criterion": "pure Python implementation with zero ROOT dependency",
        "pure_python_verified": True,
    },
    "rt60_model_semantics": {
        "passed": bool(model_semantics_ok),
        "observed": float(ratio_at_rt60),
        "criterion": "model amplitude drops to 1e-3 at t = 0.1 + RT60",
        "ratio_at_rt60": float(ratio_at_rt60),
    },
    "rt60_rebin_semantics": {
        "passed": bool(rebin_semantics_ok),
        "observed": "quadrature propagation verified on rebin by 2",
        "criterion": "uncertainties combined in quadrature / 2 during rebinning",
        "quadrature_propagation": True,
    },
    "rt60_known_truth": {
        "passed": bool(accuracy_ok),
        "observed": float(median_rel_err),
        "criterion": "median relative error < 0.05 against known synthetic RT60",
        "median_relative_error": float(median_rel_err),
        "threshold": 0.05,
    },
    "rt60_table_integrity": {
        "passed": bool(table_integrity_ok),
        "observed": {"total_trials": int(len(trials_df)), "total_bands": int(len(band_df))},
        "criterion": "exactly 160 trials across 20 frequency bands",
        "total_trials": int(len(trials_df)),
        "total_bands": int(len(band_df)),
    },
    "rt60_legacy_selection": {
        "passed": bool(legacy_selection_ok),
        "observed": {"accepted_count": int(len(acc_trials)), "boundary_cases_ok": bool(boundary_cases_ok)},
        "criterion": "RT60 > 0.05 s and error / RT60 < 0.15 evaluated per-row and on boundary values",
        "row_consistency_verified": bool(row_consistency_ok),
        "boundary_cases_verified": bool(boundary_cases_ok),
        "accepted_count": int(len(acc_trials)),
    },
    "rt60_likelihood_branch": {
        "passed": bool(has_likelihood_review),
        "observed": int((trials_df["status"] == "requires_likelihood_review").sum()),
        "criterion": "flag RT60 < 2*sigma trials for requires_likelihood_review",
        "likelihood_review_count": int((trials_df["status"] == "requires_likelihood_review").sum()),
    },
    "rt60_export_roundtrip": {
        "passed": bool(roundtrip_ok),
        "observed": int(len(loaded_trials)),
        "criterion": "CSV export roundtrip preserves exactly 160 trial rows without NaNs",
        "verified_csv_roundtrip": True,
    },
}

overall_status = "passed" if all(c["passed"] for c in checks.values()) else "failed"

metrics = {
    "tutorial_id": "T7",
    "python_version": platform.python_version(),
    "status": overall_status,
    "data_kind": "synthetic",
    "checks": checks,
}

with open(output_dir / "validation-metrics.json", "w", encoding="utf-8") as f:
    json.dump(metrics, f, indent=2)

settings = {
    "tutorial_id": "T7",
    "python_version": platform.python_version(),
    "data_kind": "synthetic",
    "total_trials": 160,
    "total_bands": 20,
    "total_events": 8,
    "dt_rms_s": dt_rms,
    "fit_window_s": [0.05, 0.5],
}
with open(output_dir / "analysis-settings.json", "w", encoding="utf-8") as f:
    json.dump(settings, f, indent=2)

print("Validation Metrics:")
print(json.dumps(metrics, indent=2))
assert metrics["status"] == "passed", "T7 verification failed!"

Validation Metrics:
{
  "tutorial_id": "T7",
  "python_version": "3.11.18",
  "status": "passed",
  "data_kind": "synthetic",
  "checks": {
    "root_native_no_root_required": {
      "passed": true,
      "observed": "ROOT module not imported and migration purely in Python",
      "criterion": "pure Python implementation with zero ROOT dependency",
      "pure_python_verified": true
    },
    "rt60_model_semantics": {
      "passed": true,
      "observed": 0.001,
      "criterion": "model amplitude drops to 1e-3 at t = 0.1 + RT60",
      "ratio_at_rt60": 0.001
    },
    "rt60_rebin_semantics": {
      "passed": true,
      "observed": "quadrature propagation verified on rebin by 2",
      "criterion": "uncertainties combined in quadrature / 2 during rebinning",
      "quadrature_propagation": true
    },
    "rt60_known_truth": {
      "passed": true,
      "observed": 0.005132155430066931,
      "criterion": "median relative error < 0.05 against known synthetic RT60",
      "median_relative_error": 0.005132155430066931,
      "threshold": 0.05
    },
    "rt60_table_integrity": {
      "passed": true,
      "observed": {
        "total_trials": 160,
        "total_bands": 20
      },
      "criterion": "exactly 160 trials across 20 frequency bands",
      "total_trials": 160,
      "total_bands": 20
    },
    "rt60_legacy_selection": {
      "passed": true,
      "observed": {
        "accepted_count": 155,
        "boundary_cases_ok": true
      },
      "criterion": "RT60 > 0.05 s and error / RT60 < 0.15 evaluated per-row and on boundary values",
      "row_consistency_verified": true,
      "boundary_cases_verified": true,
      "accepted_count": 155
    },
    "rt60_likelihood_branch": {
      "passed": true,
      "observed": 5,
      "criterion": "flag RT60 < 2*sigma trials for requires_likelihood_review",
      "likelihood_review_count": 5
    },
    "rt60_export_roundtrip": {
      "passed": true,
      "observed": 160,
      "criterion": "CSV export roundtrip preserves exactly 160 trial rows without NaNs",
      "verified_csv_roundtrip": true
    }
  }
}
